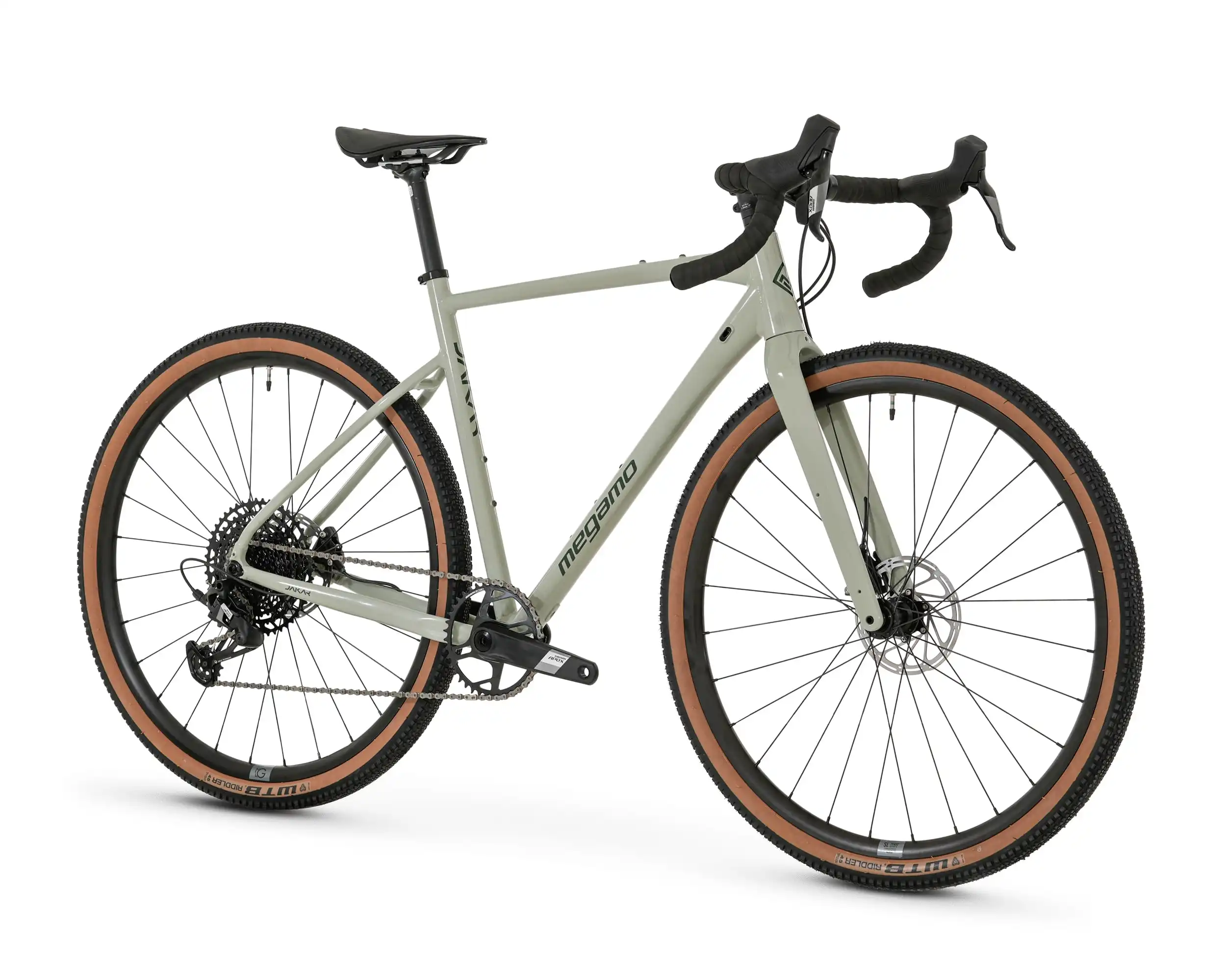

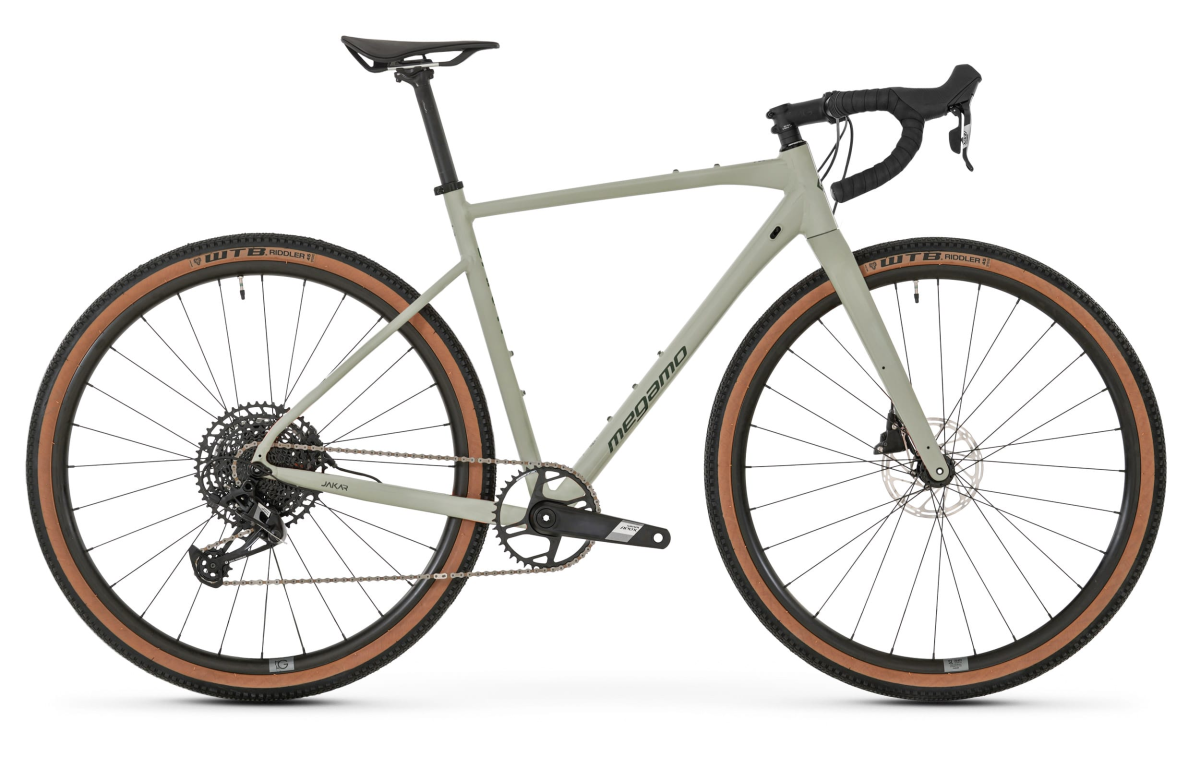

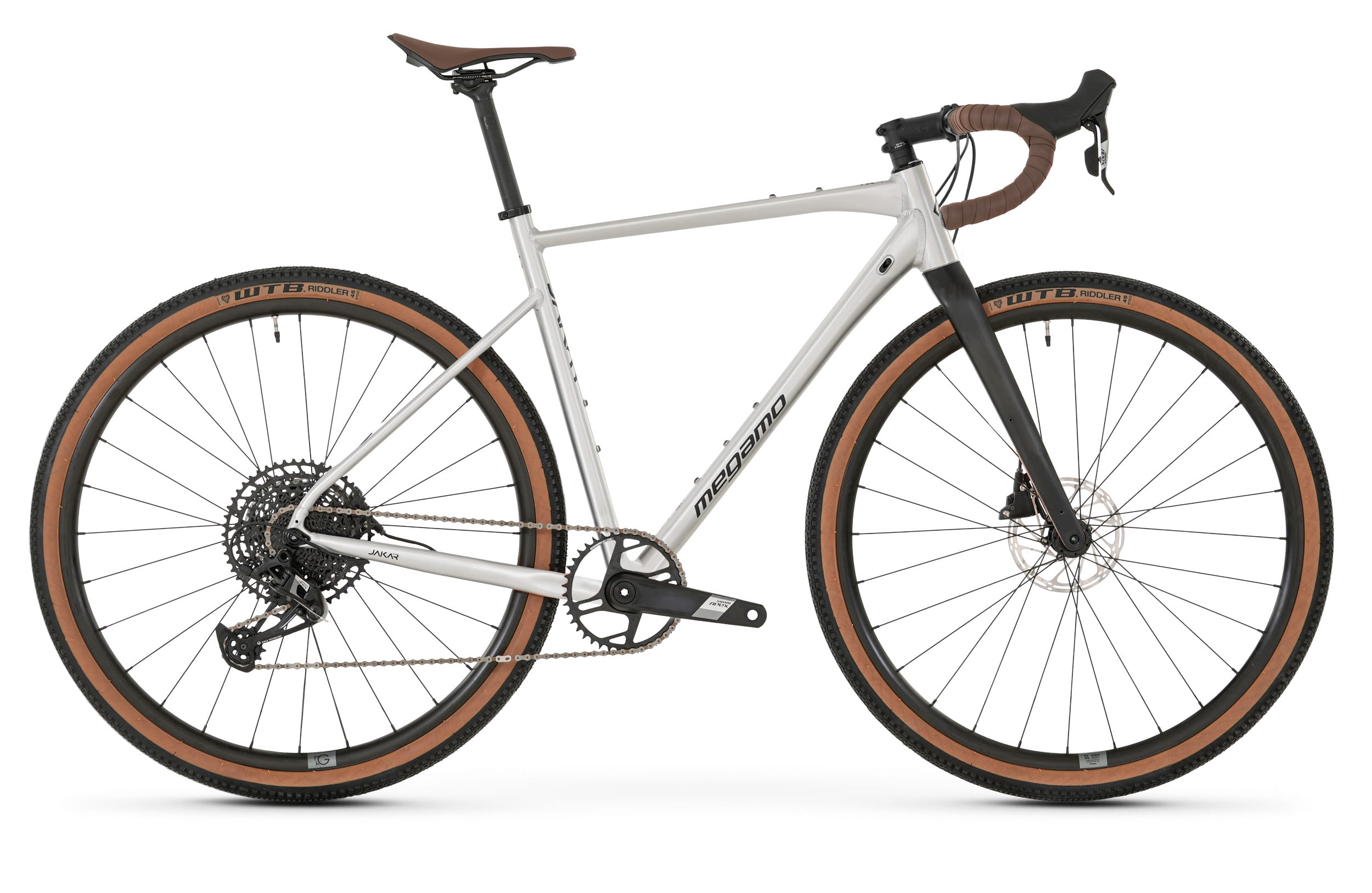

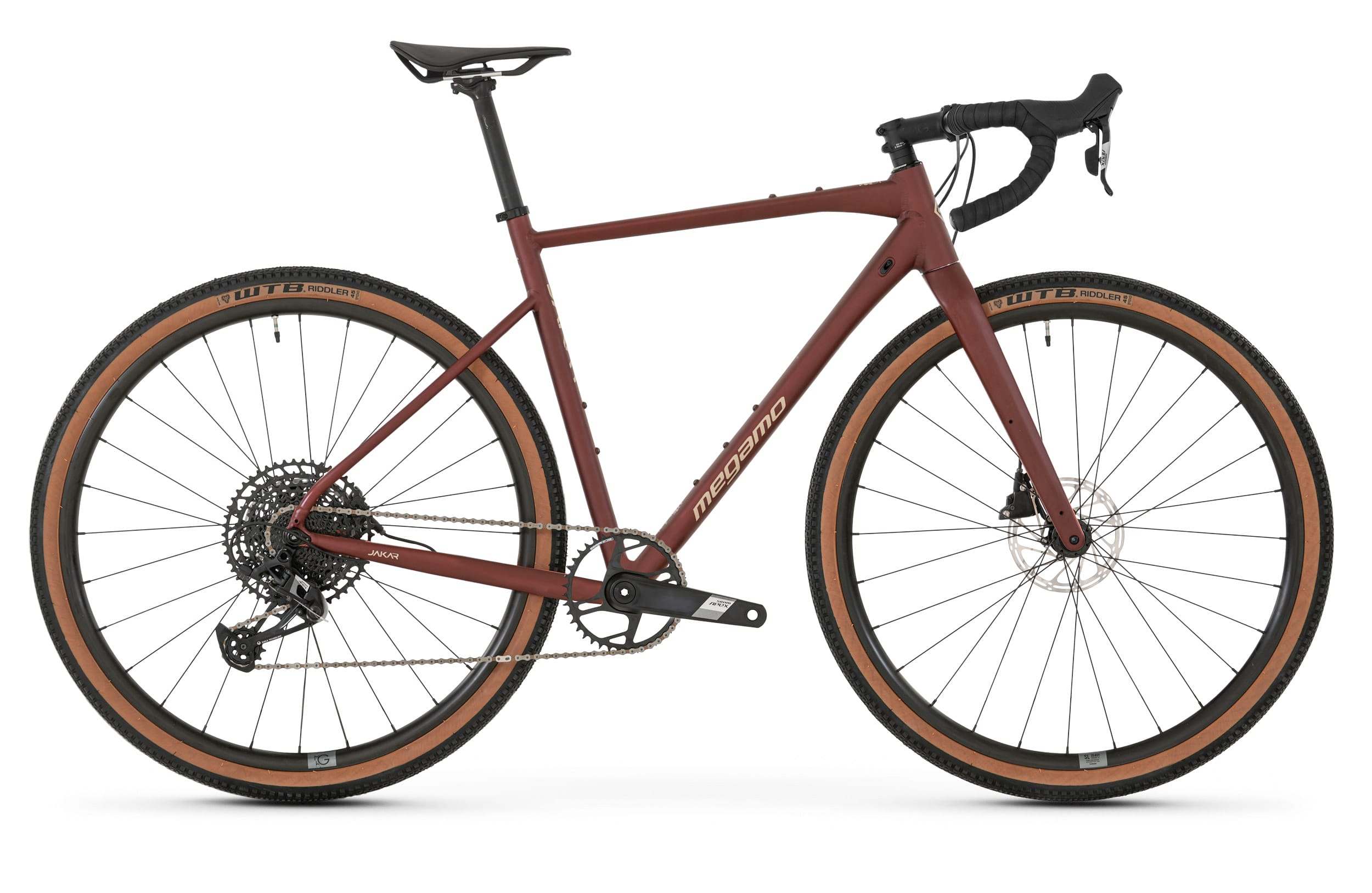

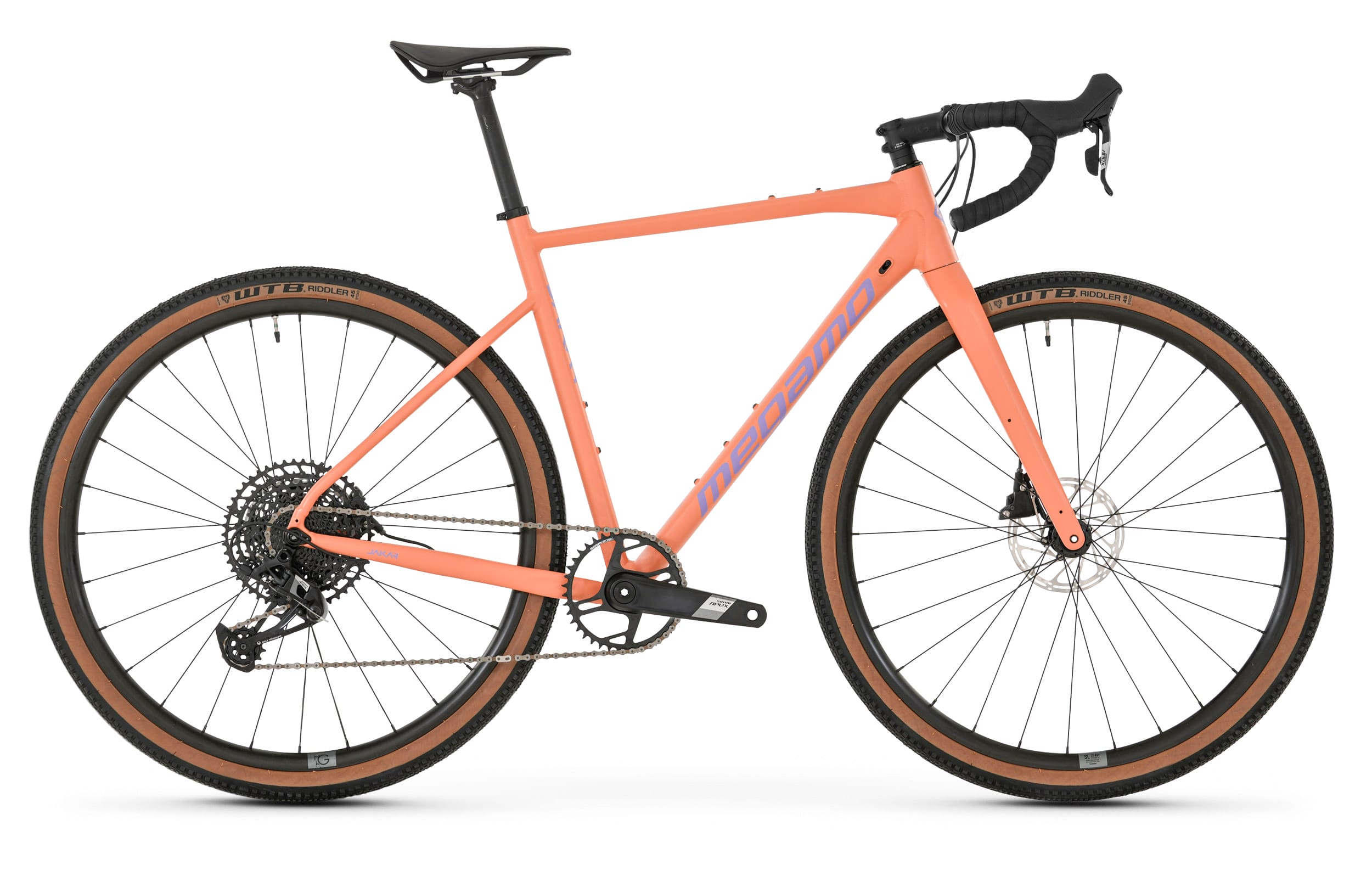

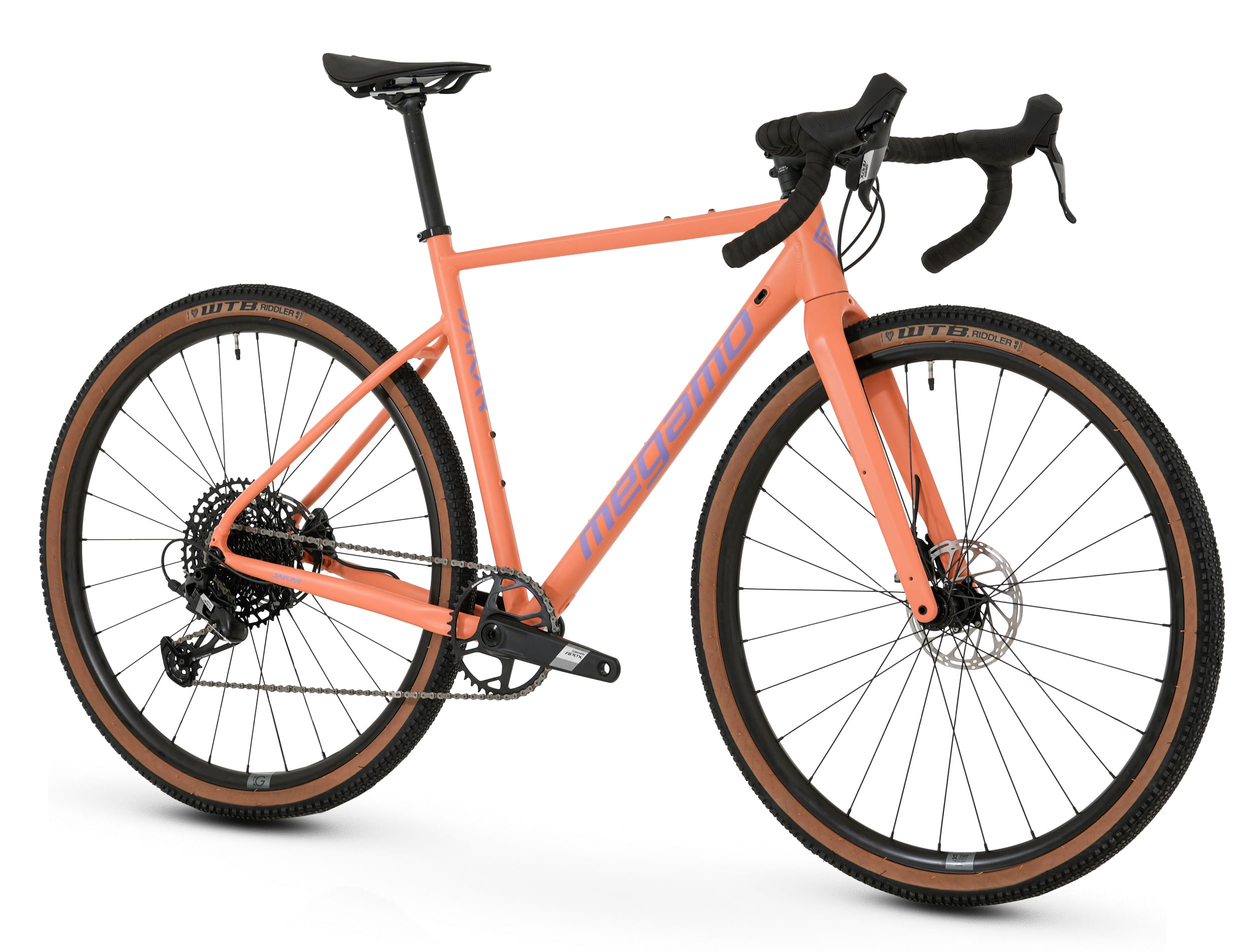

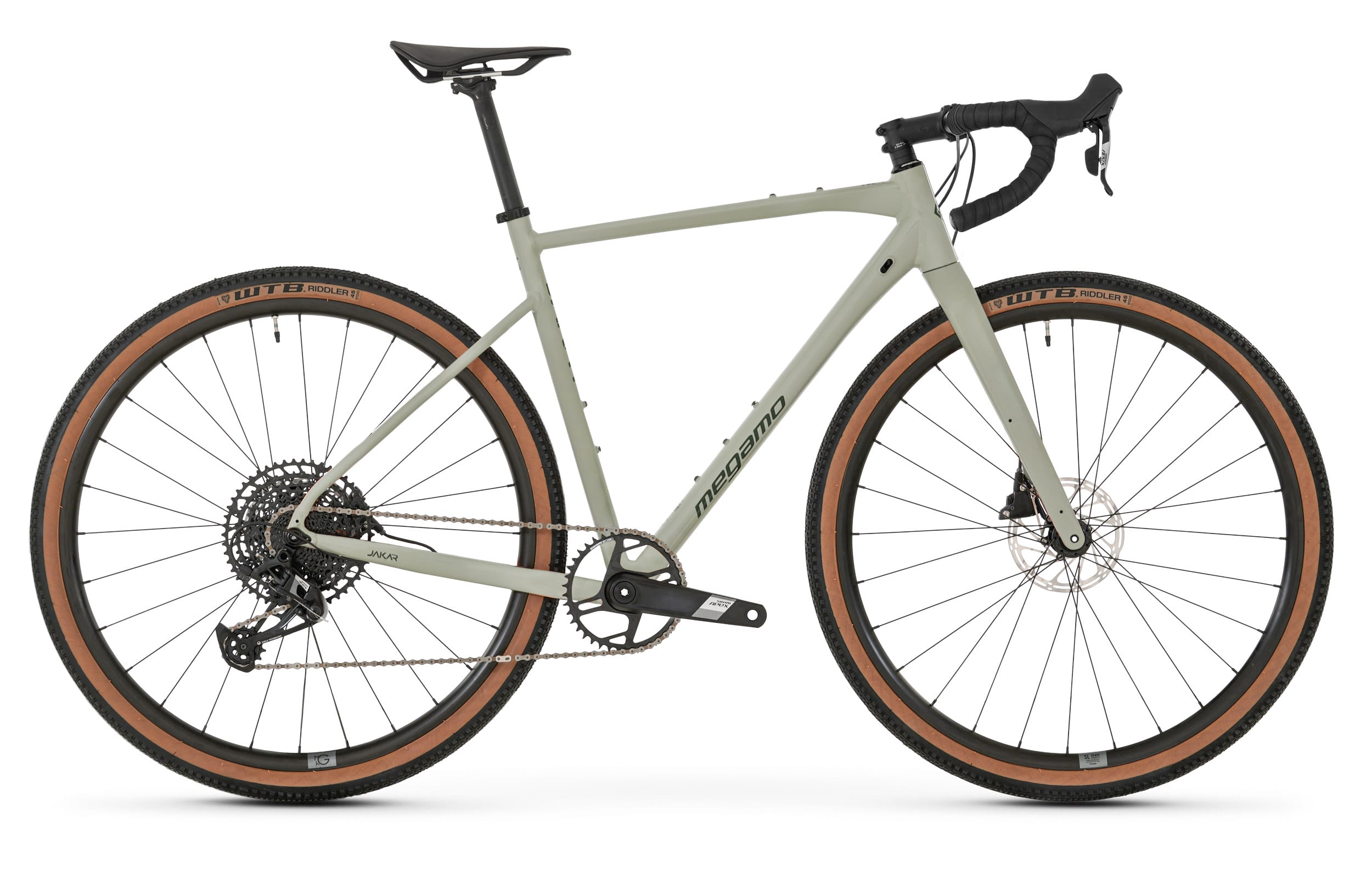

JAKAR 20 2026

MAIN FEATURES
· New aluminum frame designed for Gravel
· Carbon fork specifically for Gravel
· Sram Apex 1 1x12-speed drivetrain
· Megamo SL 25 ASY wheels
SizeXSSMLXL
Price
1899 €
Find your store Compare model
Comparator of models

Technical information

Frameset

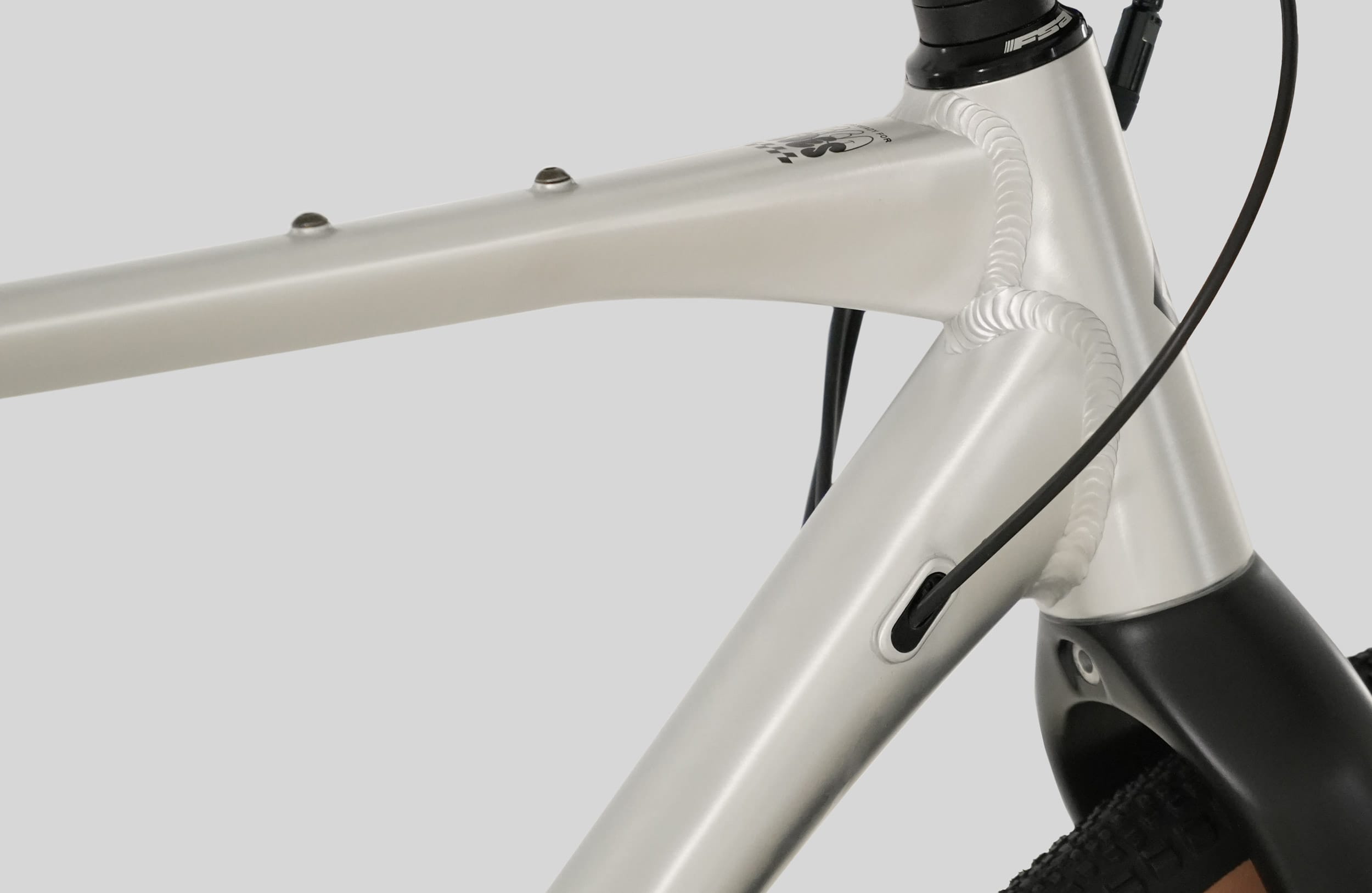

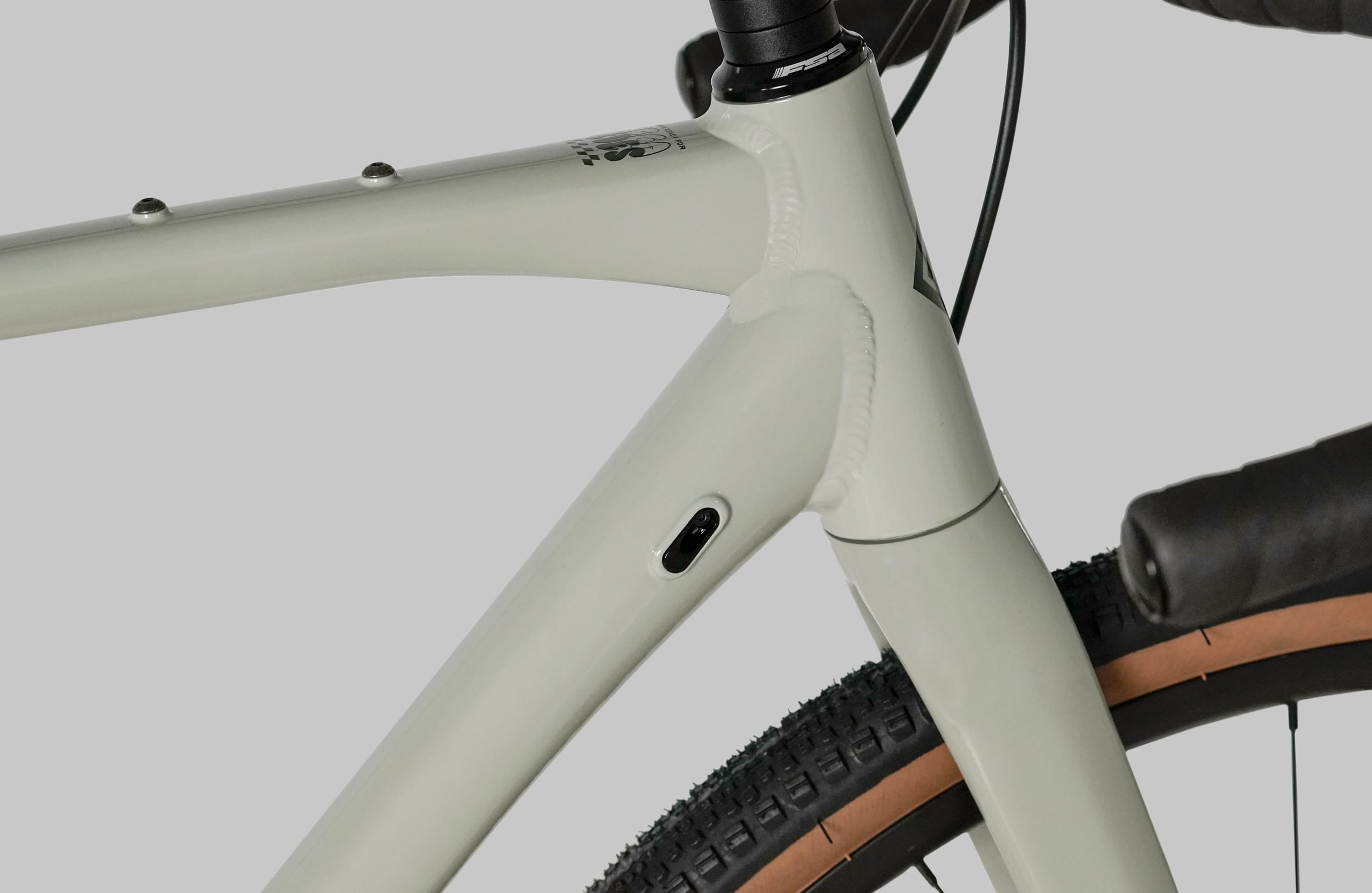

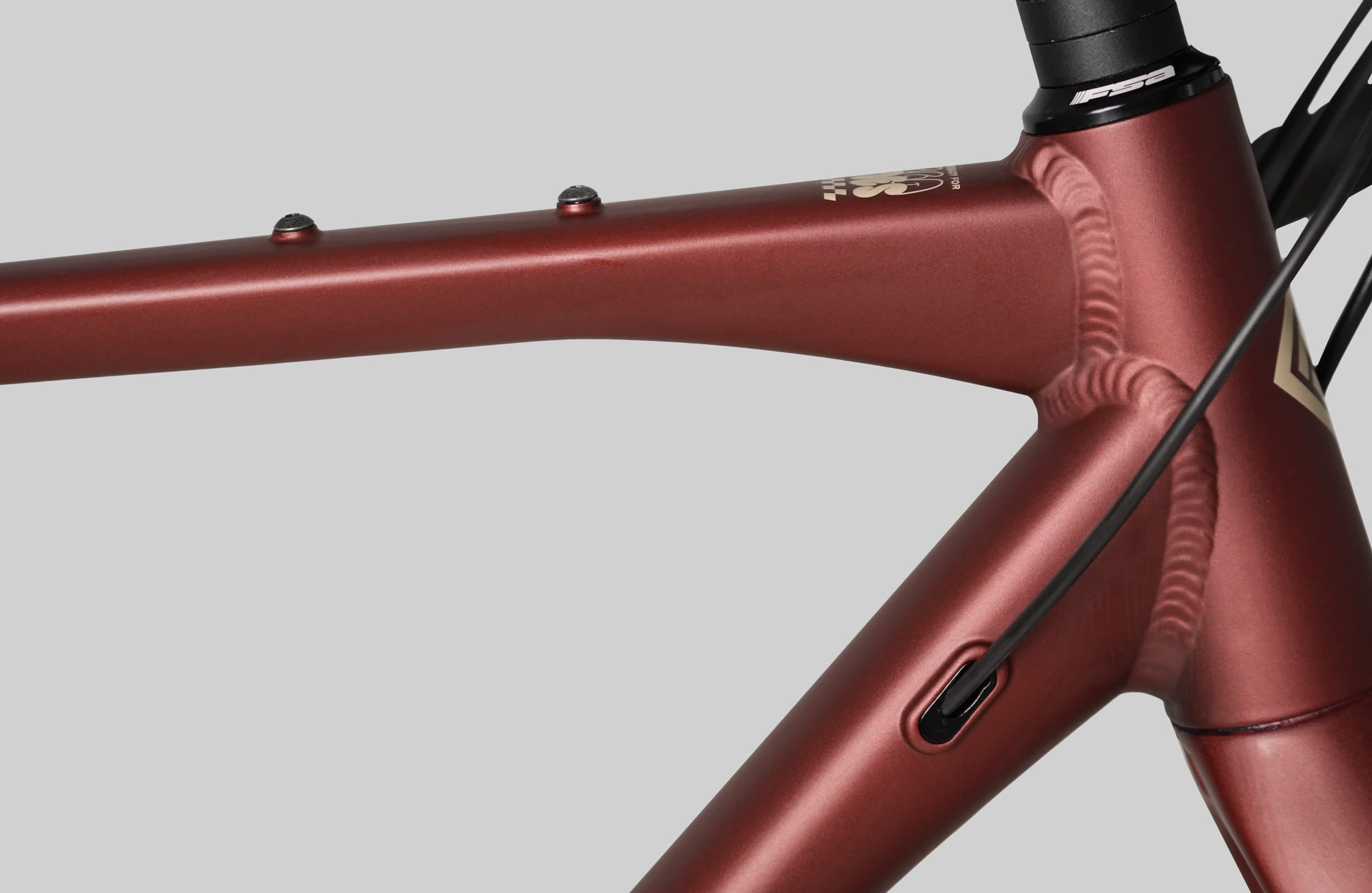

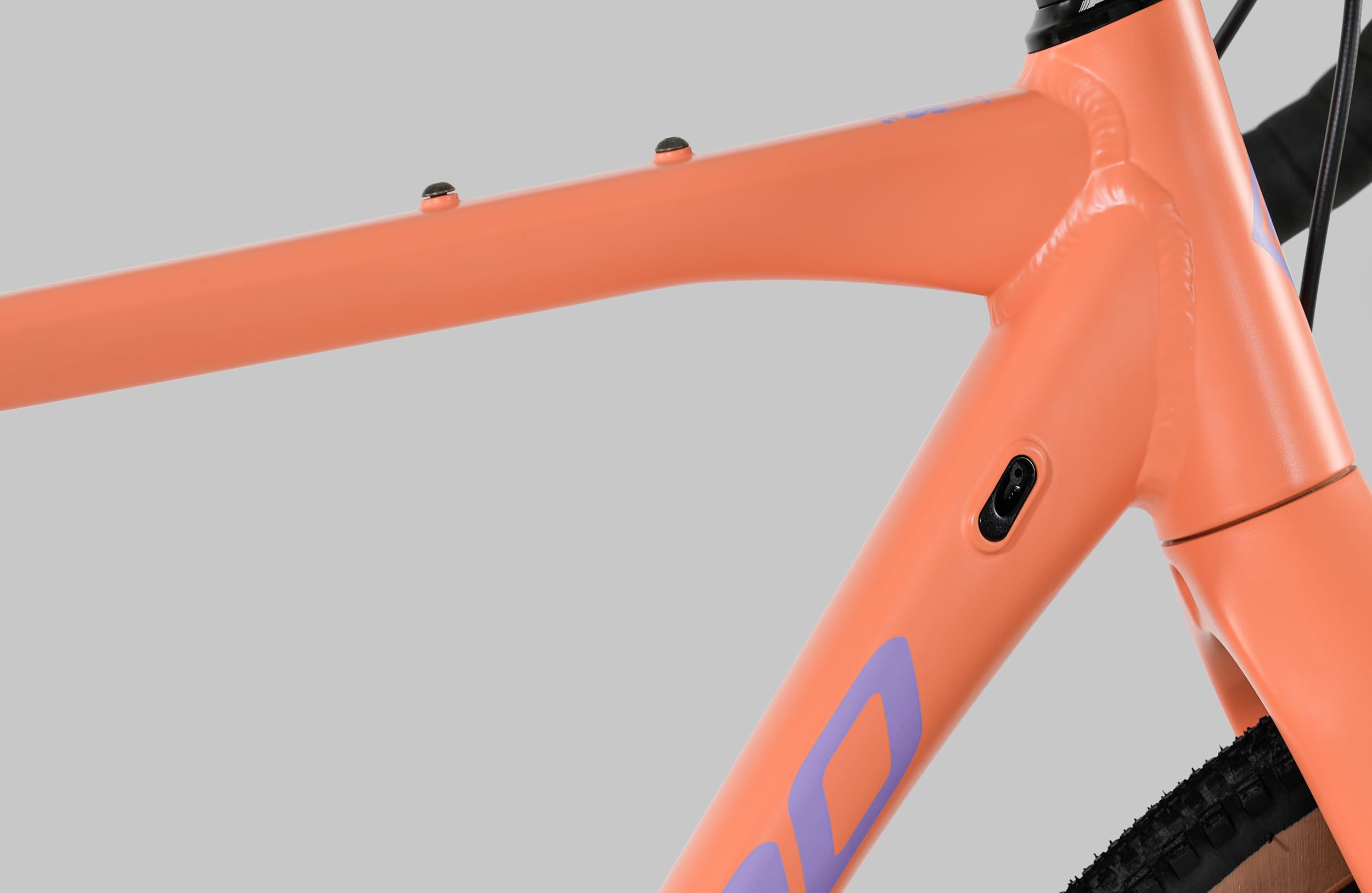

Frame Gravel AL 6061 Triple Butted, Hydroformed Technology, Internal Cable Routing, Flat Mount Disc 12x142
Fork Carbon Disc Fork, Internal Cable Routing, Flat Mount Disc 12x100
Headset FSA 1-1/8 1-1/2 * 1.5 Tapered
Drivetrain
Rear Derailleur Sram Apex Eagle 12s
Shifters Sram Apex 1 Hydraulic Disc 1x12s
Crankset Sram Apex 40T STL
Cassette Sram Eagle 11-50T
Brakes
Brakes Sram Apex 1 Hydraulic Disc
Wheels
Tires WTB Riddler 700 x 45c Tan Sidewall
Wheels Megamo Gravel GR 700 - TLR
Components
Handlebar Megamo Specific Gravel HB FOV Compact
Stem Megamo FOV
Seatpost Megamo 27,2mm
Seat Selle Italia Model X

* Megamo reserves the right to change any component, if necessary by replacing it with an equivalent one, without prior notice.

Geometry JAKAR 20 (26)

    XS S M L XL
A
T/T 494 515 545 575 600
B
C/S 430 430 430 430 430
C
S/T 415 500 530 570 590
D
H/T 105 125 145 175 210
E
REACH 347 358 376 392 407
F
STACK 529 550 570 600 632
G
BB HEIGHT 70  70 70 70 70
H
FRONT ANGLE 70º 70.5º 71º 71º 71º
I
REAR ANGLE 74.5º 74º 73.5º 73º 73º
J
WHEEL BASE 9921004  1026  1051  1078
K
FRONT WHEEL BB  572 584 605 631 657
  FIT GUIDE X-SMALL
150 - 160
SMALL
160 - 170
MEDIUM
170 - 180
LARGE
180 - 190
X-LARGE
190 - 210
