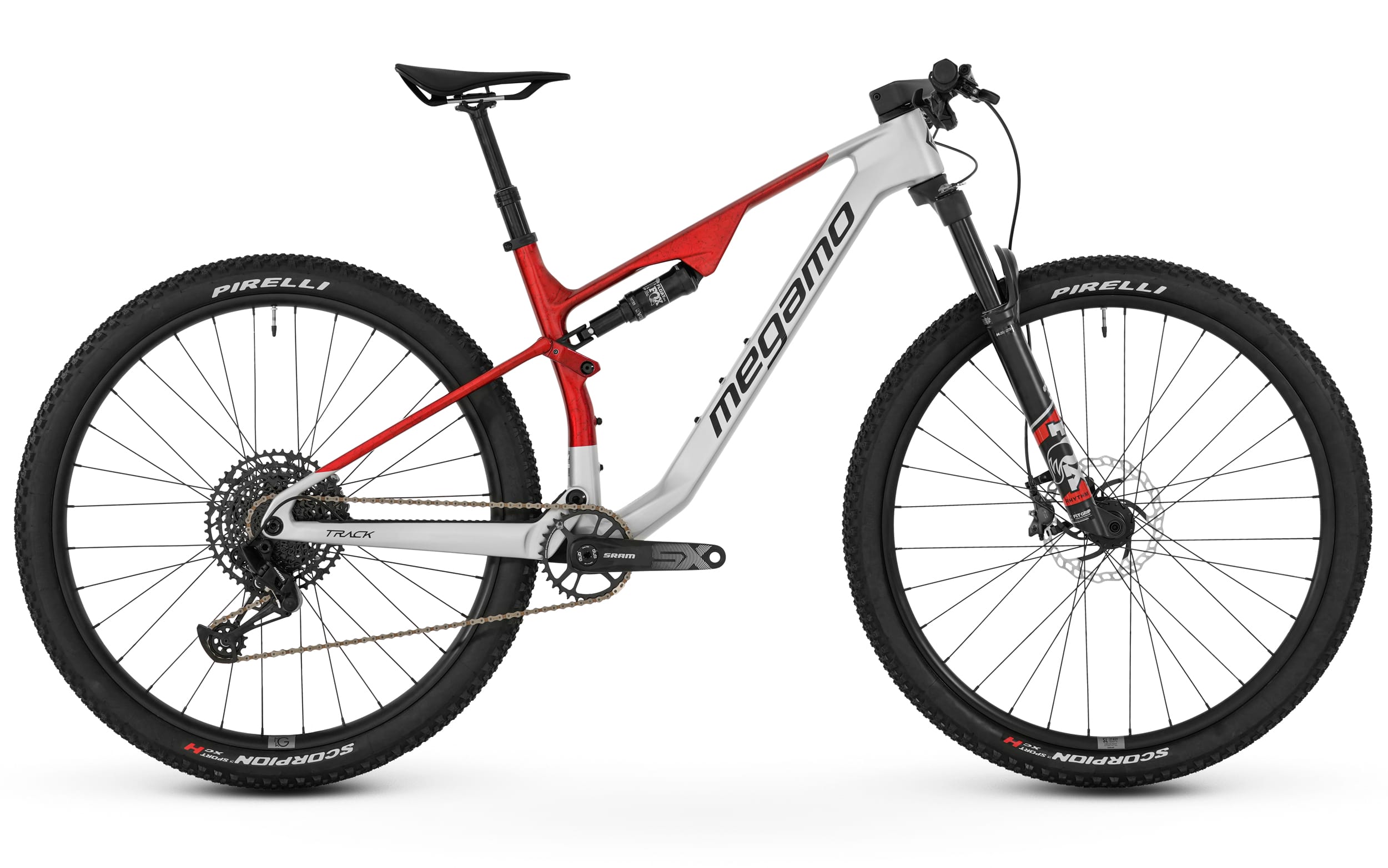

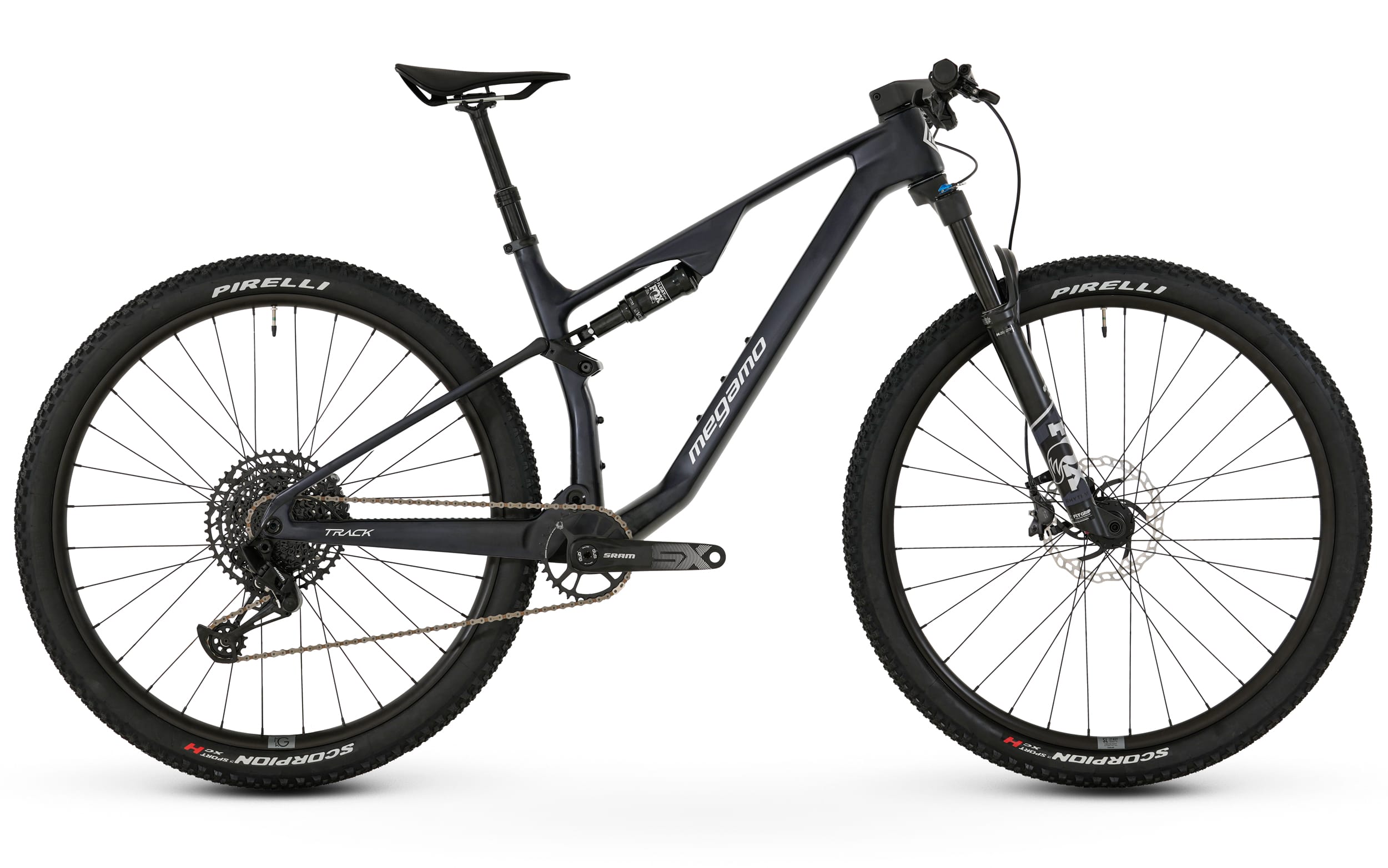

TRACK 10 2026

MAIN FEATURES
· Track Full Carbon Construction frame with FSC Technology, BB92 Carbon Swingarm, Boost 12x148mm, Super Light version
· Fox 34 Rhythm fork, 120mm travel, Remote Lockout, 15x110 Boost
· Fox Float DPS Performance Elite shock, 120mm travel 190x45mm, Evol SV, 3-position with remote control
· Sram SX 12-speed drivetrain
· Megamo SL 27 ASY Race wheels
· Shimano XT 8100 hydraulic disc brakes
· 31.6 dropper post with internal cable routing and remote control
· Megamo Integrated Carbon Handlebar
Wheel29"SizeSMLXL
Price
3699 €
Find your store Compare model
Comparator of models

Technical information

Frameset

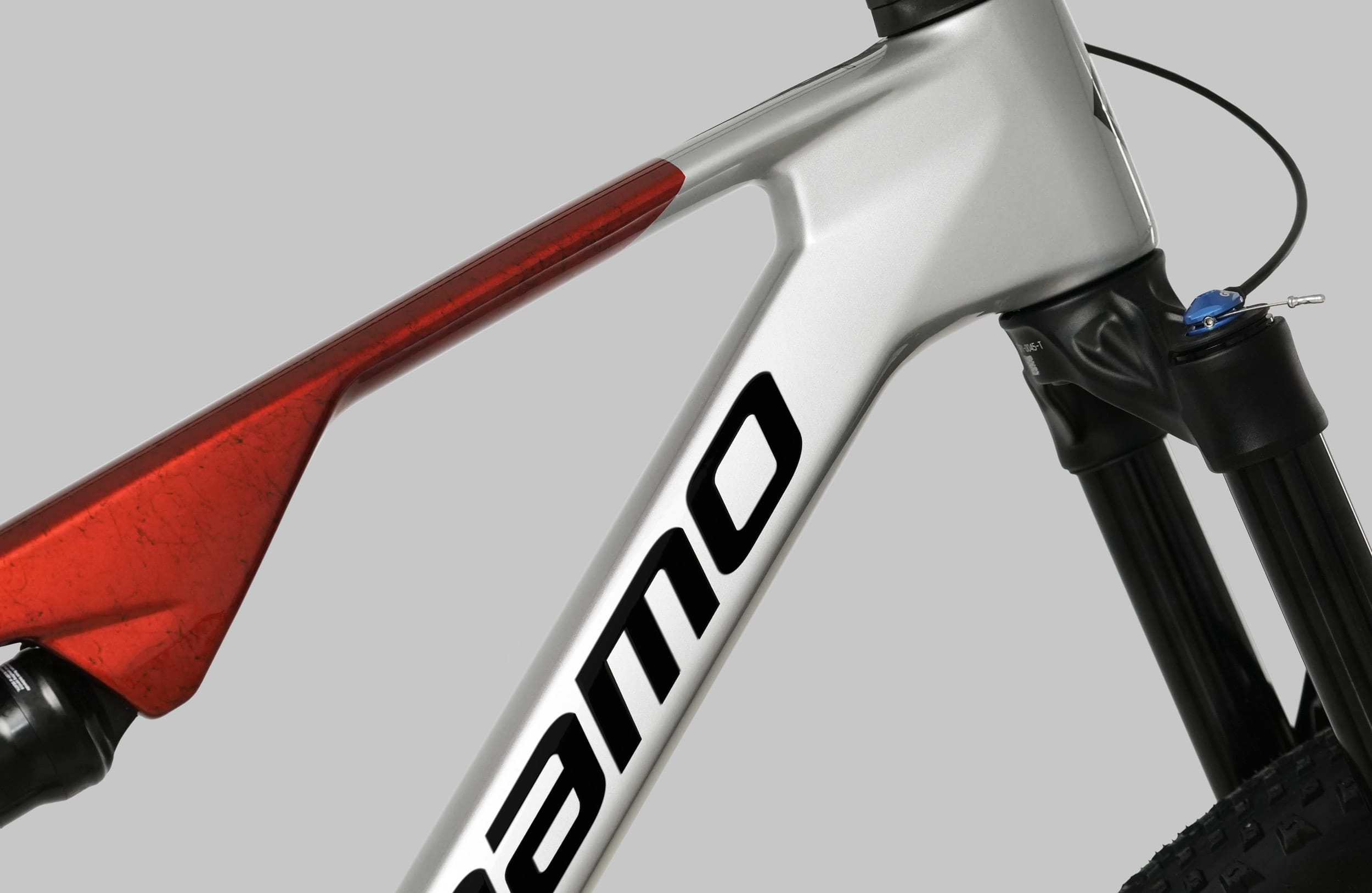

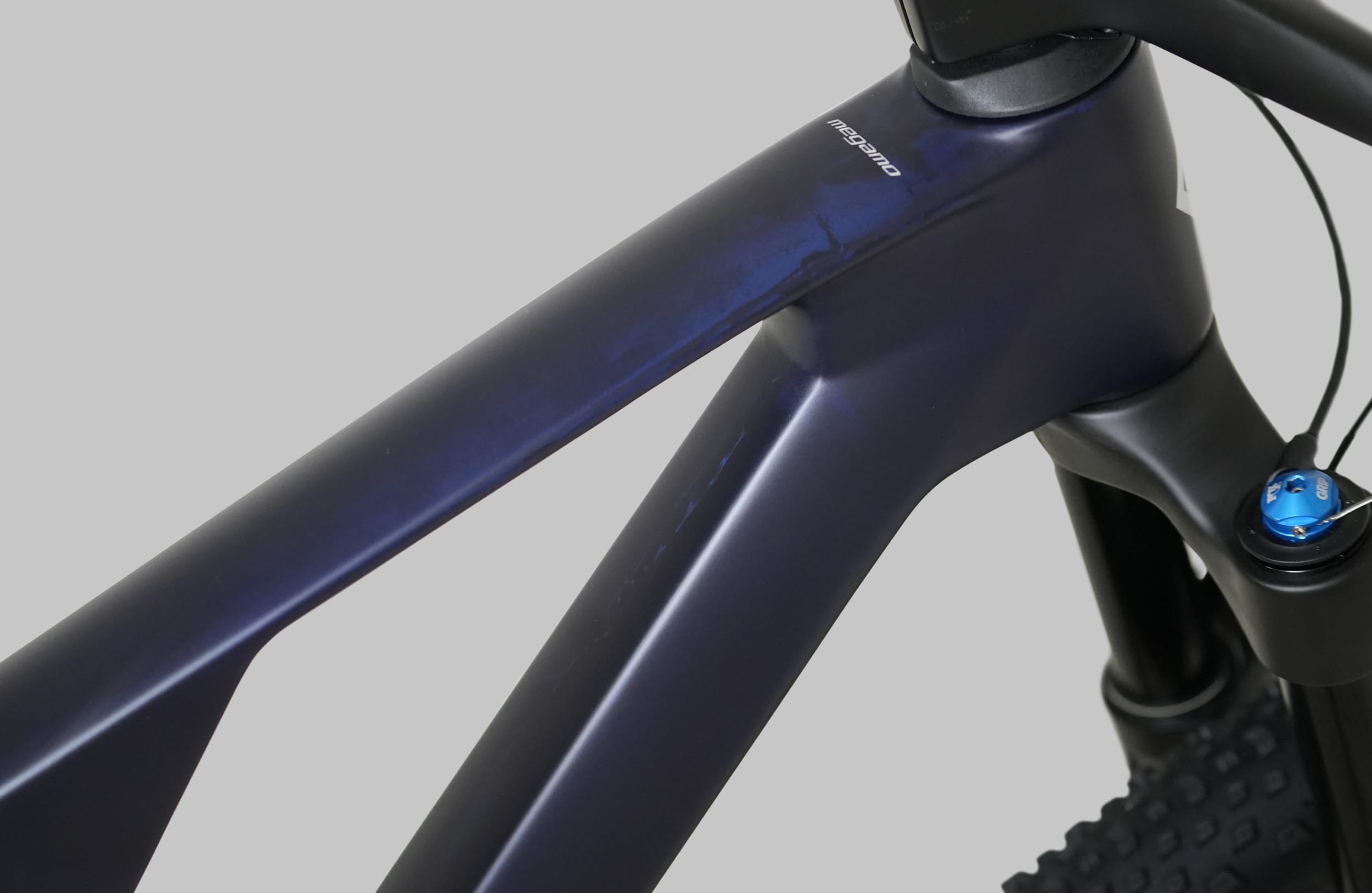

Frame Full Carbon Construction, FSC Technology BB92 Carbon Swingarm, Boost 12x148mm, SuperLight version, 120mm Wheel Travel
Fork FOX 34 Rhythm, 120mm Travel, Grip, Remote Push to Lock, QR Axle 15x110, 1.5 Tapered, 58HT, 44mm offset
Shock Fox Float DPS Performance Elite, 3 positions Remote Lockout control, Evol SV Megamo Custom Reb. Adj. Travel 120mm 190x45mm
Drivetrain
Rear Derailleur Sram SX EAGLE, 12-Speed
Shifters Sram SX EAGLE 12-Speed
Crankset Sram SX EAGLE Chainring 32T 12-Speed, Crankset / S size 170mm / M, L, XL size 175mm
Cassette Sram SX EAGLE, 11-50T
Brakes
Brakes Shimano XT M8100 Hydraulic Disc 2-Piston RT-MT800 180 mm / 160 mm
Wheels
Tires Pirelli Scorpion Sport XC H 29 x 2.4
Hubs Megamo Hub, Front axle 15 x 110mm, Rear axle 12 x 148mm BOOST
Wheels Megamo 29 SL 27 ASY - Race, 27mm Tubeless ready Aluminium rim
Components
Handlebar Full Integrated Carbon Handlebar 80 x 740 mm
Seatpost Megamo 31,6 mm telescopic seat post, remote adjustment S size 80 mm Drop / M, L size 100 mm Drop / XL size 120 mm Drop
Seat Selle Italia Model X Superflow

* Megamo reserves the right to change any component, if necessary by replacing it with an equivalent one, without prior notice.

Geometry TRACK 10 (26)

    S M L XL
A
S/T 422 441 482 520
B
T/T 563 588 617 647
C
H/T angle 66.5º 66.5º 66.5º 66.5º
D
s/T angle 75.6º 75.6º 75.6º 75.6º
E
wheelbase 1132 1157 1188 1221
F
C/S 431 431 431 431
G
h/t 96 96 111 130
H
BB DROP 36 36 36 36
I
fork rake 44 44 44 44
J
FORK HEIGHT (0% sag) 510 510 510 510
K
FORK HEIGHT (20% sag) 490 490 490 490
L
FRONT WHEEL - BB 702 727 758 791
M
REACH 410 435 460 485
N
STACK 599 599 613 630
HANDLEBAR AND STEM INTEGRATED: S M L XL 60/760 - - 80/760 --
  FIT GUIDE SMALL
< 169
MEDIUM
169 - 180
LARGE
180 - 185
X-LARGE
185 <
TRACK 10 (26) TRACK 10 (26)
