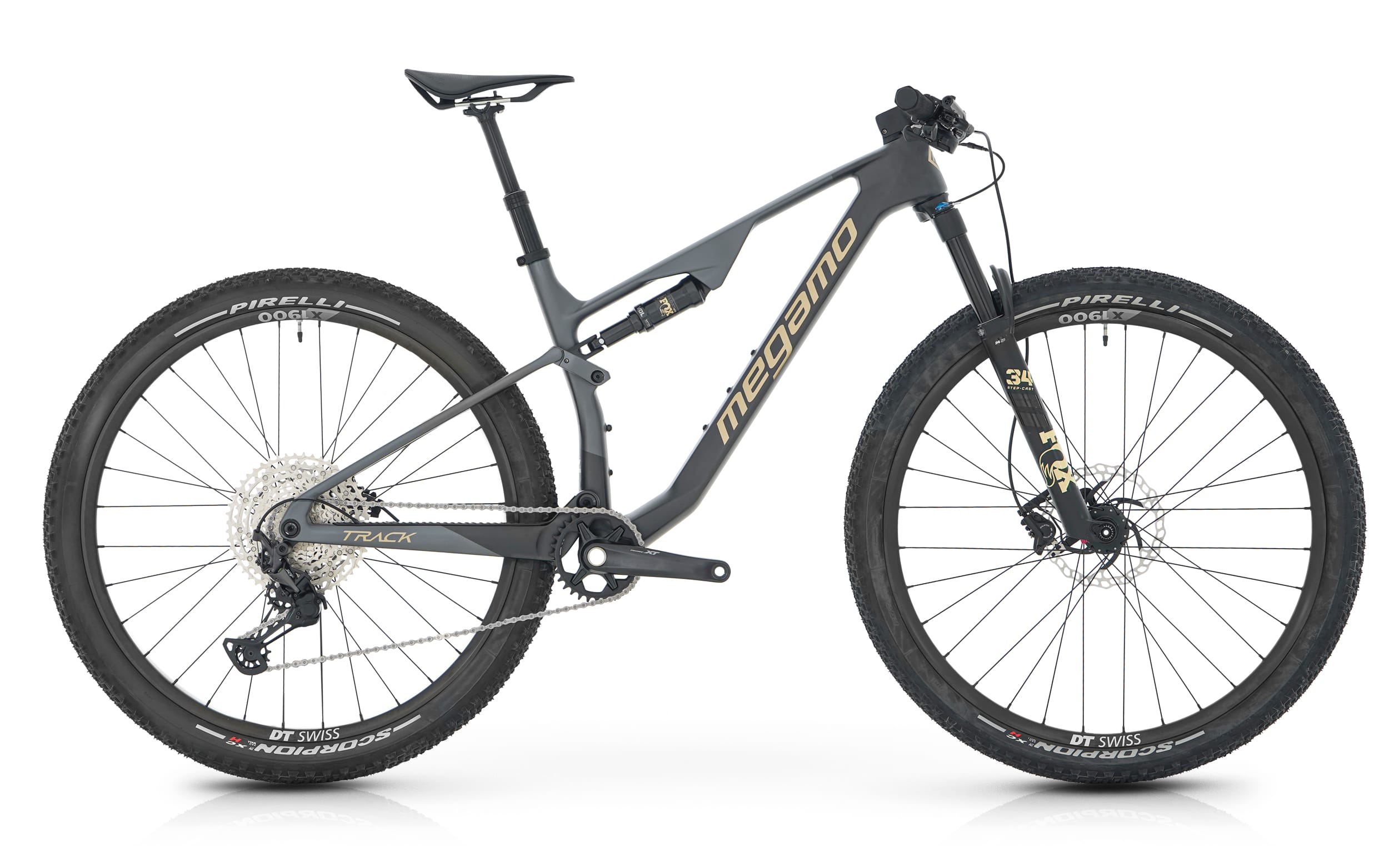

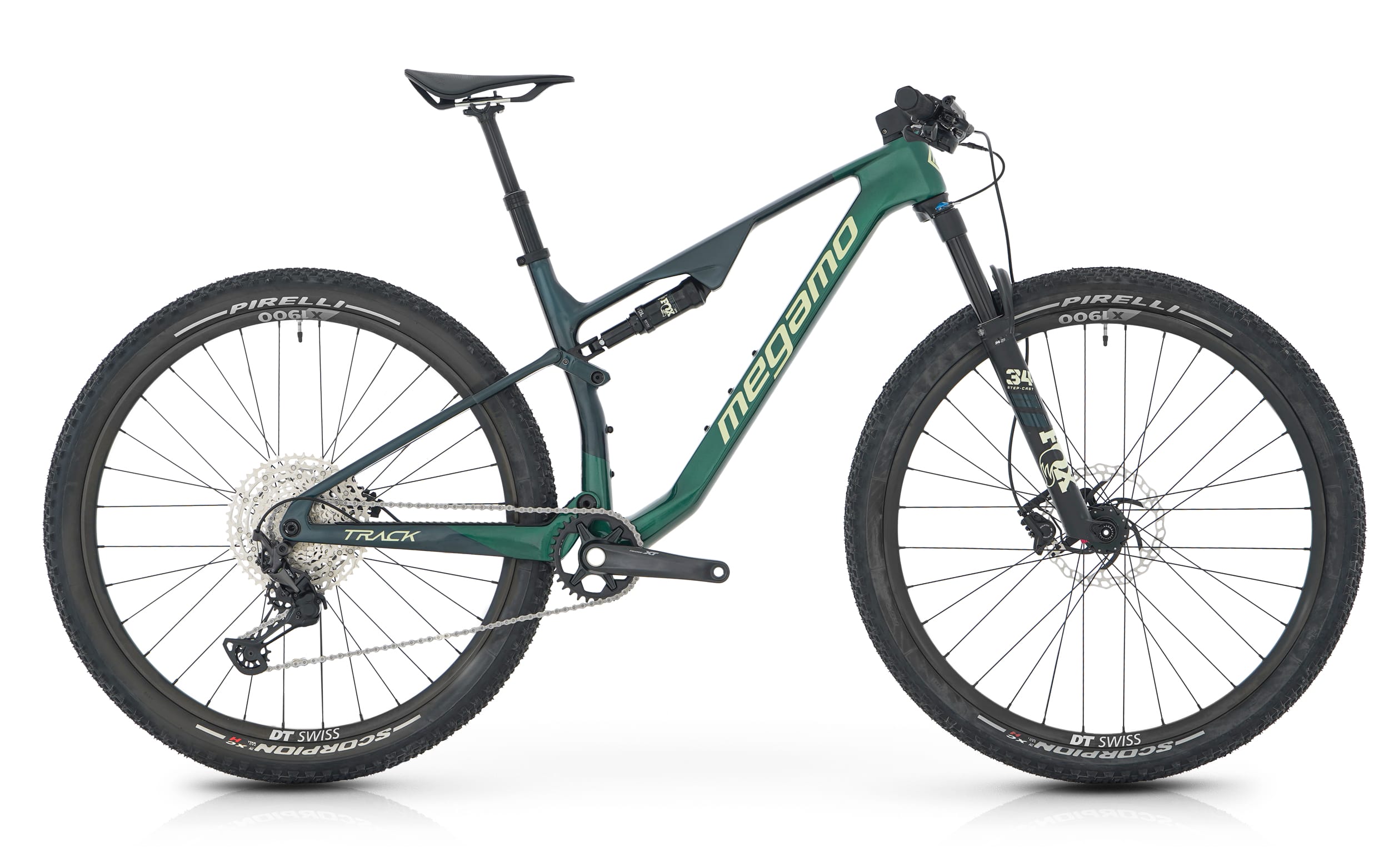

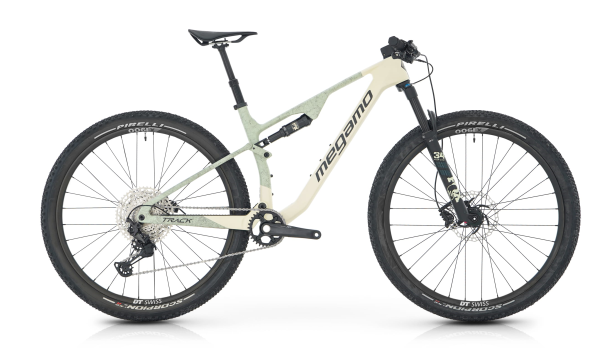

TRACK 07 2025

KEY FEATURES
· Track Full Carbon Construction FSC Technology BB92 Carbon Swingarm Boost 12x148mm frame
· Fox 34 120mm StepCast Performance fork
· Fox DPS Performance Elite shock, 120mm Travel 190x45, 3 positions Remote Lockout control
· Sram GX Eagle 12-speed drivetrain
· DT Swiss X 1900 wheels
· Shimano XT 8100 brakes
· Fox Transfer SL Performance dropper post with internal cable routing
· Integrated Carbon Megamo handlebar
Wheel29"SizeS
Price
5199 €
DON?'T KNOW WHAT SIZE YOU NEED?
Add your body measurements in our size calculation system to guide you between the measurement ranges of your bicycle.
Calculate your size
CALCULATE YOUR SIZE
Tell us some basic information, we recommend the most appropriate size for your measurements.
I am a...
/
Fill the field
This result is indicative, if you want a more specific setting we recommend making a fitting with experts.
Previous Next Contact us
Contact your dealer if you need advice
Find your store Compare model
Comparator of models

Technical information

Frameset
Frame Track Full Carbon Construction FSC Technology BB92 Carbon Swingarm Boost 12x148mm
Fork Fox 34 StepCast Performance 120 mm Remote Lockout, 15x110 Boost
Shock Fox Float DPS Performance Elite, 3 positions Remote Lockout control, Evol SV Megamo Custom Reb. Adj. Travel 120mm 190x45mm
Headset Integrated Full Internal Cable Routing
Drivetrain
Rear Derailleur Sram GX Eagle 12s
Shifters Sram GX Eagle 12s
Crankset Sram GX Eagle 12s 32t
Cassette Sram GX Eagle 12s 10-52t
Brakes
Brakes Shimano XT 8100
Wheels
Tires Pirelli MTB Scorpion XC H Prowall TLR 29 x 2.4
Wheels DT Swiss X 1900
Components

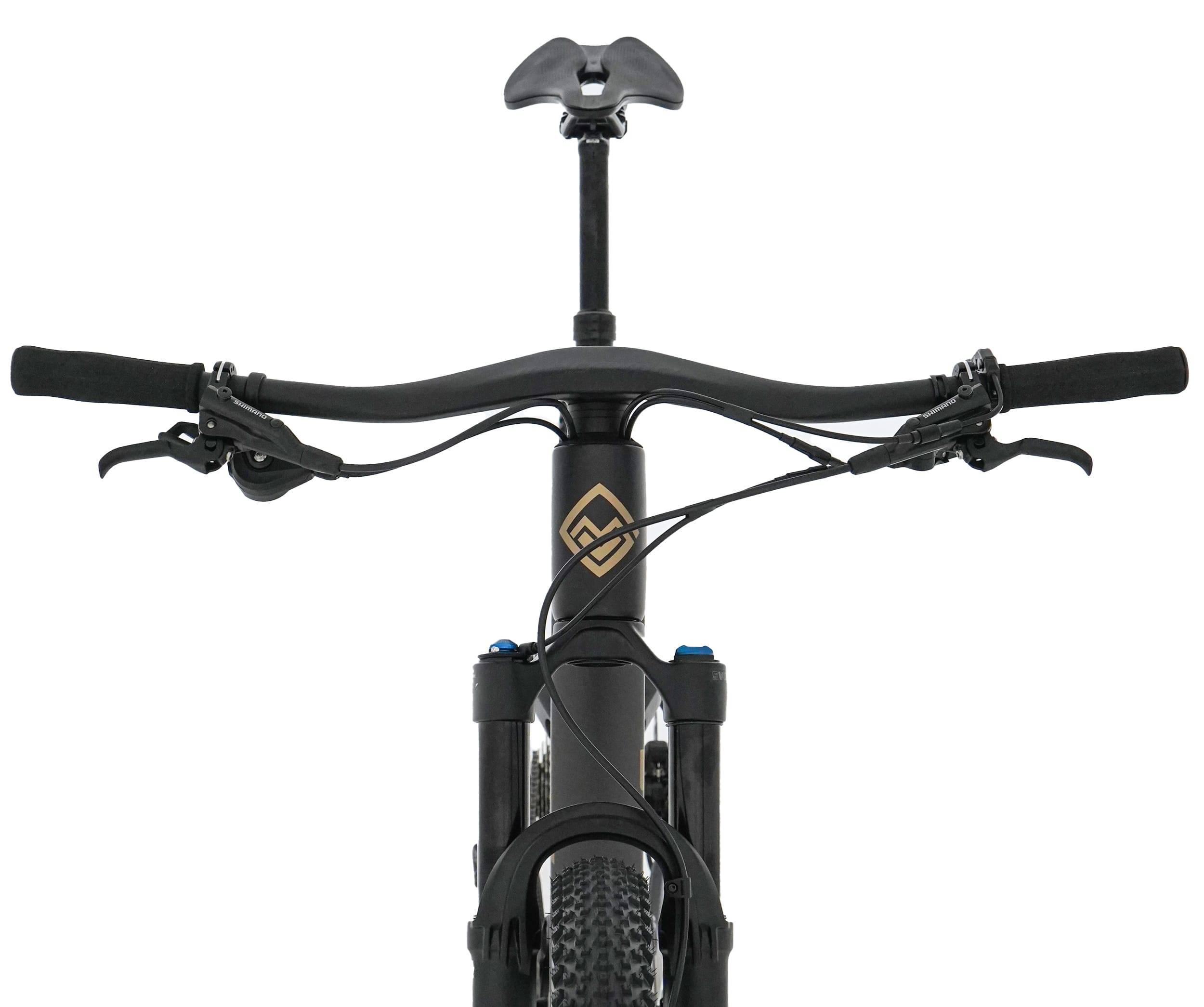

Handlebar Full Integrated Carbon handlebar Megamo
Seatpost Fox Transfer SL Performance 31,6. Internal routing, remote.
Seat Selle Italia Shortfit Open-fit Start Up 144

* Megamo reserves the right to change any component, if necessary by replacing it with an equivalent one, without prior notice.

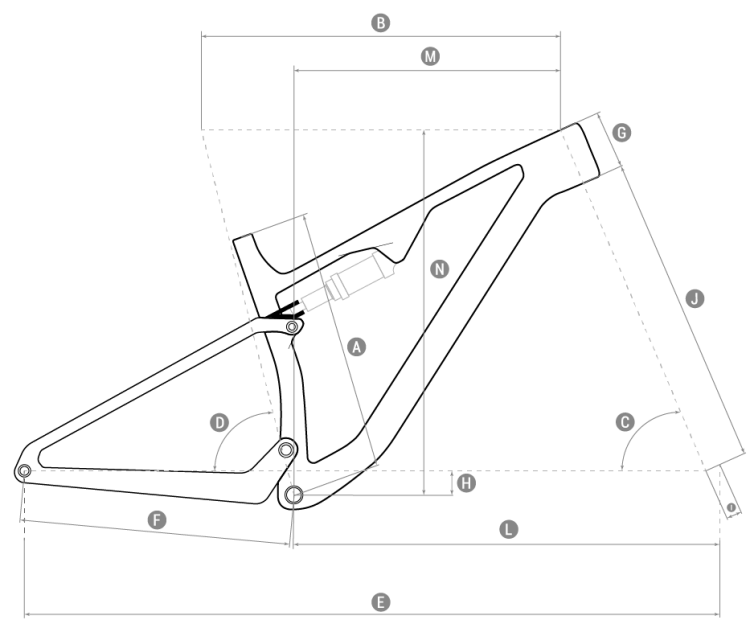

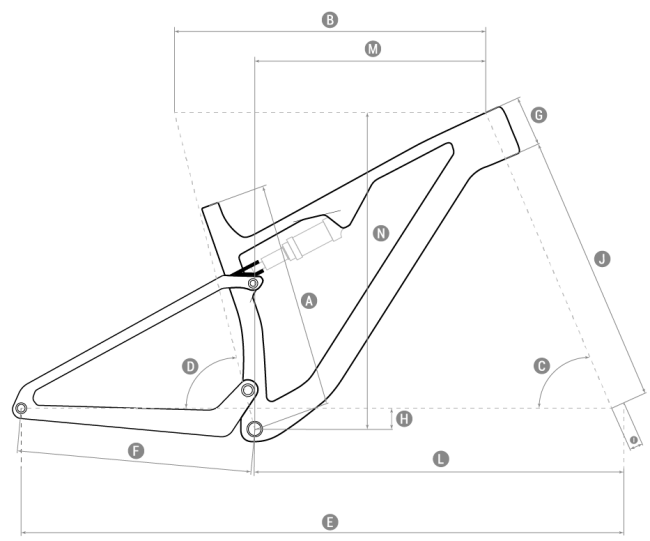

Geometry TRACK 07 (25)

    S M L XL
A
S/T 422 441 482 520
B
T/T 563 588 617 647
C
H/T angle 66.5º 66.5º 66.5º 66.5º
D
s/T angle 75.6º 75.6º 75.6º 75.6º
E
wheelbase 1132 1157 1188 1221
F
C/S 431 431 431 431
G
h/t 96 96 111 130
H
BB DROP 36 36 36 36
I
fork rake 44 44 44 44
J
FORK HEIGHT (0% sag) 510 510 510 510
K
FORK HEIGHT (20% sag) 490 490 490 490
L
FRONT WHEEL - BB 702 727 758 791
M
REACH 410 435 460 485
N
STACK 599 599 613 630

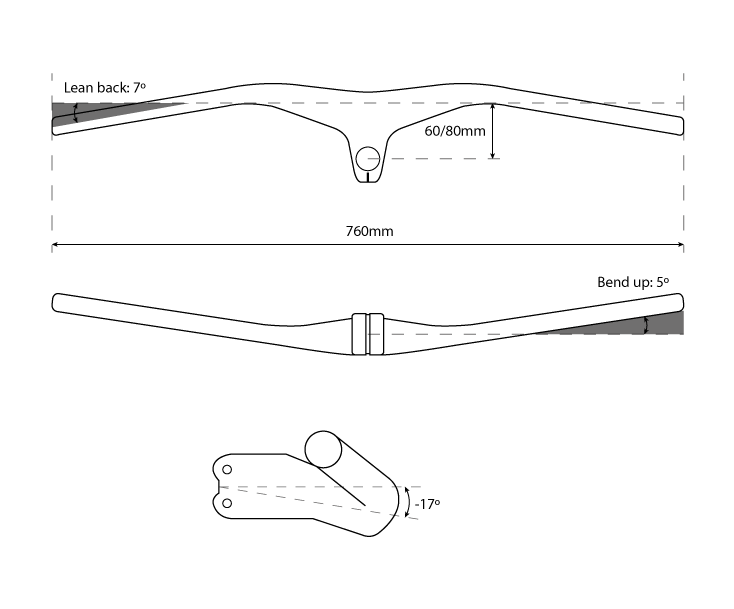

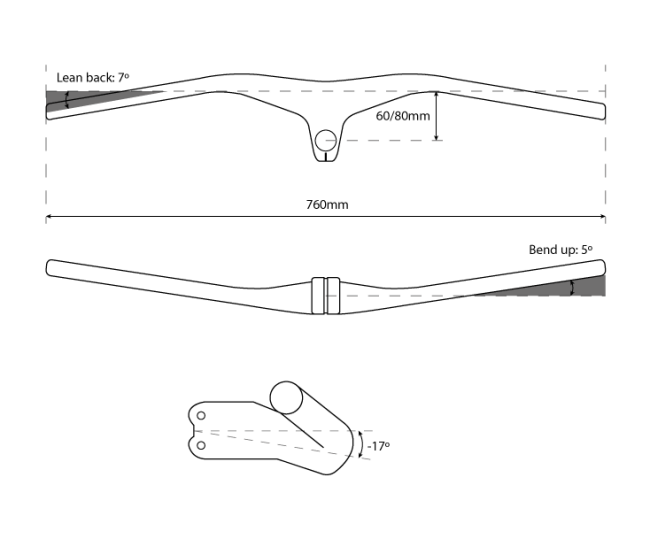

HANDLEBAR AND STEM INTEGRATED: S M L XL 60/760 - - 80/760 --
  FIT GUIDE SMALL
< 169
MEDIUM
169 - 180
LARGE
180 - 185
X-LARGE
185 <
TRACK 07 (25) TRACK 07 (25)
