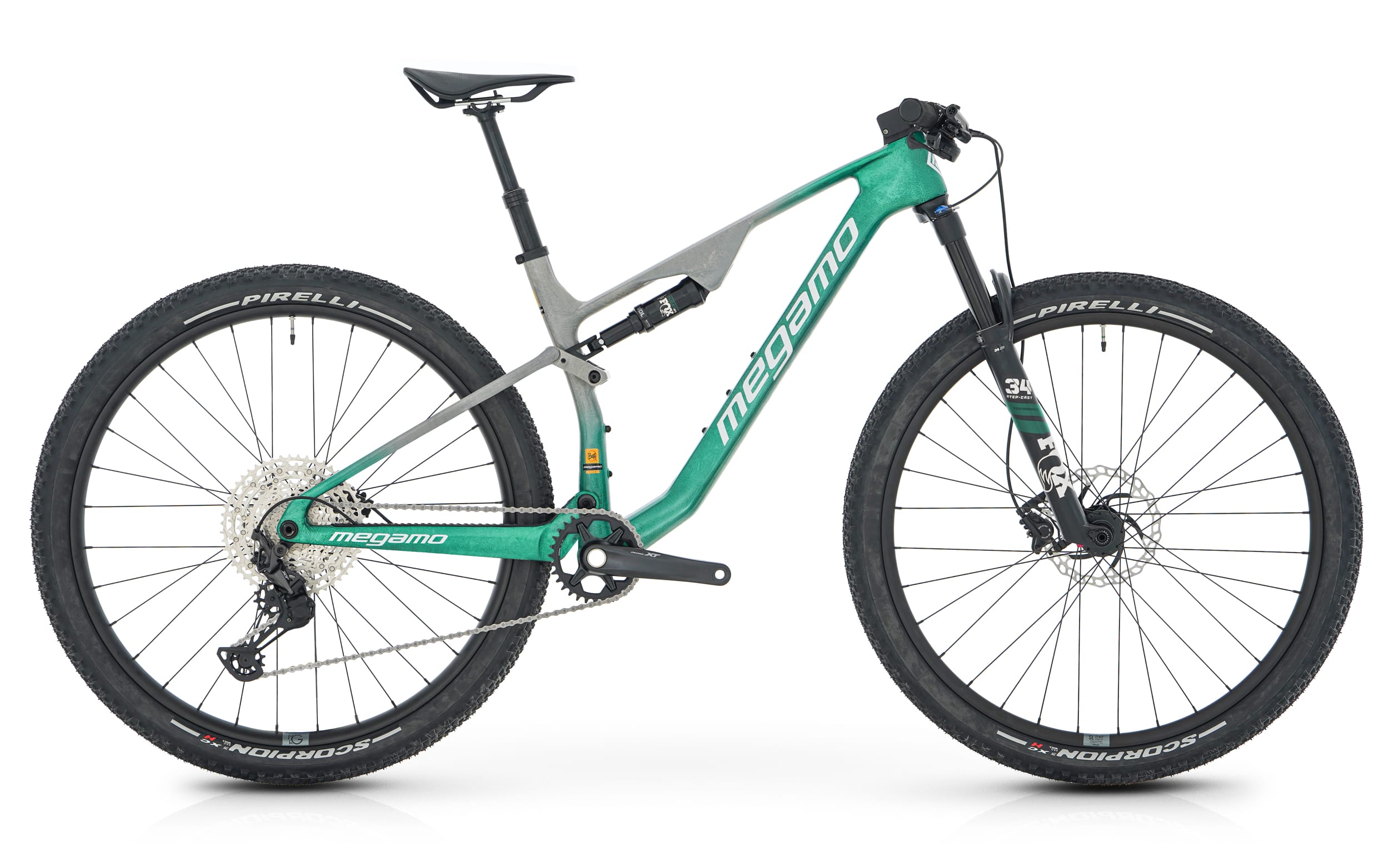

TRACK BUFF-MEGAMO 2025

KEY FEATURES
· Track Full Carbon Construction FSC Technology BB92 Carbon Swingarm Boost 12x148mm frame
· Fox 34 120mm StepCast Performance fork
· Fox DPS Performance Elite shock, 120mm Travel 190x45, 3 positions with Remote control
· Combo XT 12-speed drivetrain
· Megamo SL 27 ASY Race wheels
· Shimano MT500 hydraulic disc brakes
· 31.6 telescopic seatpost with internal cable routing and remote control
Wheel29"SizeSMLXL
Price4.399 €
Find your store Compare model
Comparator of models

Technical information

Frameset
Frame Track Full Carbon Construction FSC Technology BB92 Carbon Swingarm Boost 12x148mm SuperLight version
Fork FOX 34 Performance, 120mm Travel, Step-Cast, Grip, 3 Position, QR Axle 15x110, 1.5 Tapered, 44mm offset
Shock FOX Float SL Performance, 190x45mm, Evol SV + Remote Up
Headset Integrated Full Internal Cable Routing
Drivetrain
Rear Derailleur Shimano XT M8100, Shadow Plus 12-Speed
Crankset Shimano XT M8120 Chainring 32T 12-Speed, Crankset S size 170mm / M, L, XL size 175mm
Cassette Shimano Deore M6100, 10-51T
Brakes
Brakes Shimano MT500 Hydraulic Disc 2-Piston SM-RT26 180/160mm
Wheels
Tires Pirelli Scorpion XC H Prowall 29 x 2.4
Hubs Megamo Hubs, Front axle 15 x 110 mm, Rear axle 12 x 148 mm BOOST
Wheels Megamo 29 SL 27 ASY - Race, 27mm Tubeless ready Aluminium rim
Components
Handlebar Full Integrated Carbon Handlebar / S, M size 60x760mm / L, XL size 80x760mm
Seatpost Megamo Ø 31,6mm telescopic seat post, remote adjustment S size 80 mm Drop / M, L size 100 mm Drop / XL size 120 mm Drop
Seat Selle Italia Model X Superflow

* Megamo reserves the right to change any component, if necessary by replacing it with an equivalent one, without prior notice.

Geometry TRACK BUFF-MEGAMO (25)

    S M L XL
A
S/T 422 441 482 520
B
T/T 563 588 617 647
C
H/T angle 66.5º 66.5º 66.5º 66.5º
D
s/T angle 75.6º 75.6º 75.6º 75.6º
E
wheelbase 1132 1157 1188 1221
F
C/S 431 431 431 431
G
h/t 96 96 111 130
H
BB DROP 36 36 36 36
I
fork rake 44 44 44 44
J
FORK HEIGHT (0% sag) 510 510 510 510
K
FORK HEIGHT (20% sag) 490 490 490 490
L
FRONT WHEEL - BB 702 727 758 791
M
REACH 410 435 460 485
N
STACK 599 599 613 630
HANDLEBAR AND STEM INTEGRATED: S M L XL 60/760 - - 80/760 --
  FIT GUIDE SMALL
< 169
MEDIUM
169 - 180
LARGE
180 - 185
X-LARGE
185 <
