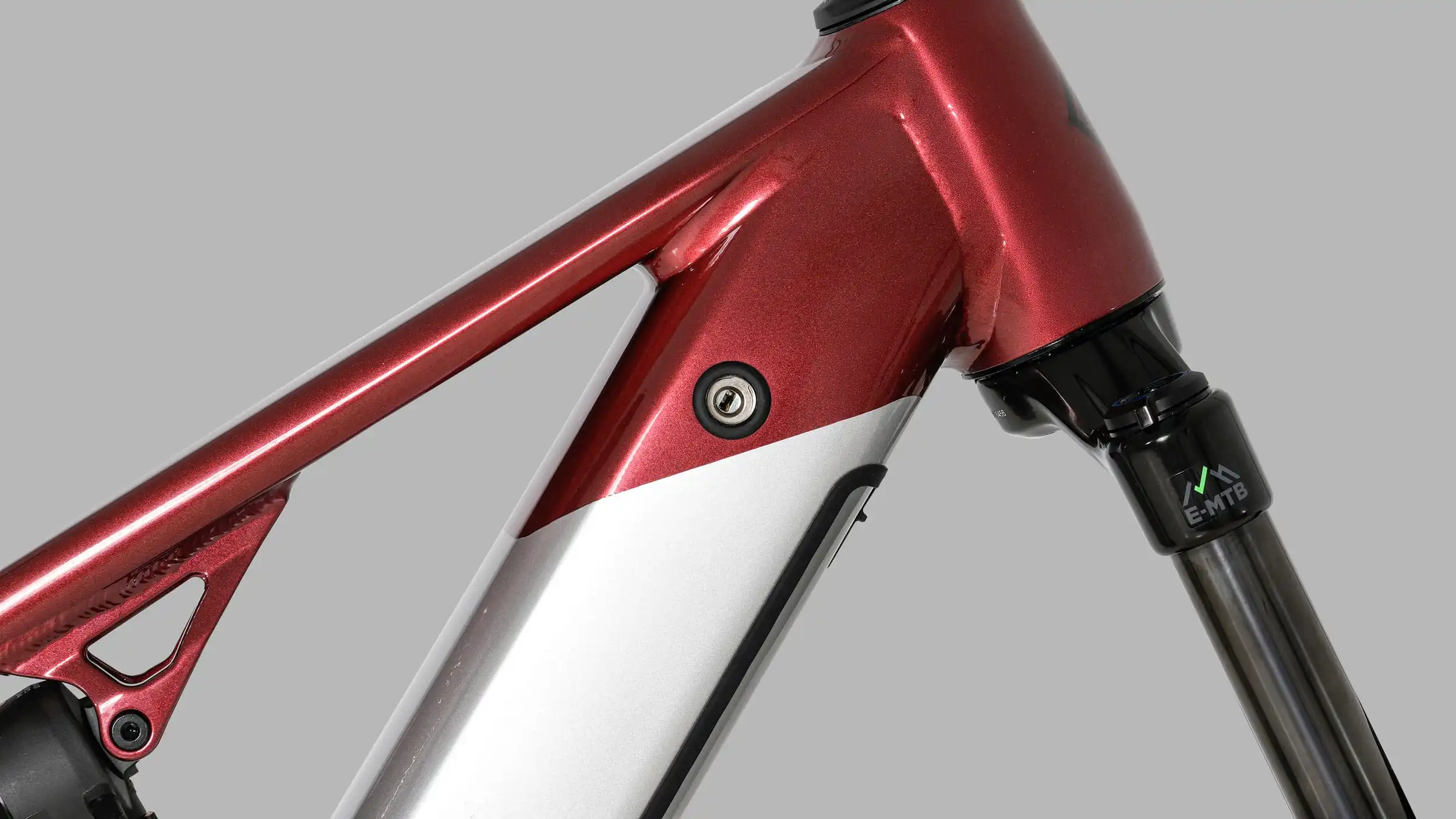

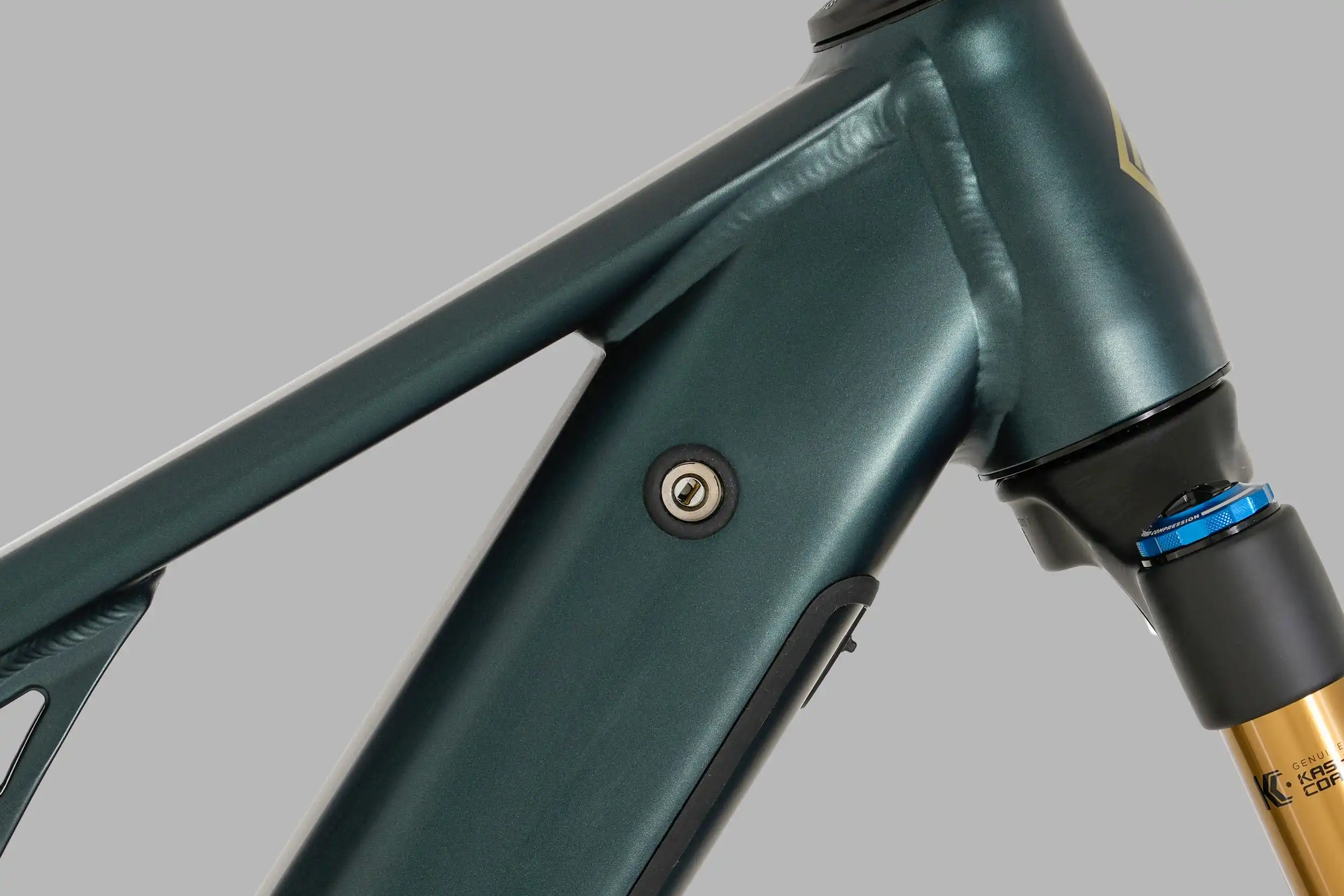

Frame | Full Integratted Battery, Aluminium 6061, 12x148 Boost, Horst Link 4, Wheel travel: 160 mm |
 |
Fork | FOX 36 Float AWL HD Sport, 160 mm Travel, Rail 2.0, Rebound-Adjust, Kabolt Axle 110, 1.5 Tapered, Long Steerer, 44mm offset |
 |
Shock | FOX Float Rhythm, 230x60 mm, Evol LV, 2 Position |
 |
Headset | Acros AZX-589 ZS56 blocklock 150º |
 |
Motor | Bosch Performance Line CX, 5gen BDU384Y, Smart System / 100Nm 750W |
 |
Battery | Bosch PowerTube 800 |
 |
Display | Bosch Purion 200 |
 |
Rear Derailleur | Shimano XT M8100, Shadow Plus 12-Speed |
 |
Shifters | Shimano Deore 6100 Speed Rapidfire Plus, 12-Speed |
 |
Crankset | FSA Bosch Chainring 34T CL55 12-Speed, Crankset 320 165mm |
 |
Cassette | Shimano Deore M6100, 10-51T |
 |
Brakes | Shimano XT BR-M8120, hydraulic disc 4-Piston, 203/203mm |
 |
Tires | Maxxis 29 x 2.5 Assegai front, 29 x 2.4 Minion DHR II rear |
 |
Hubs | Megamo Hubs, Front axle 15 x 110 mm, Rear axle 12 x 148 mm BOOST EBIKE+ |
 |
Wheels | Megamo 29 SL 30 ASY, Aluminium Rim, 15x110/12x148 mm |
 |
Handlebar | Megamo Alloy Butted 31,8 x 800 mm, 12 mm Rise, 6º Back Sweep |
 |
Stem | Satori Ursa, 35 x 35 mm |
 |
Seatpost | Megamo Ø 31,6mm telescopic seat post, remote adjustment S size 125 mm Drop / M size 150 mm Drop / L size 170 mm Drop |
 |
Seat | Fizik Terra Aidon X5, 145 mm |
* Megamo reserves the right to change any component, if necessary by replacing it with an equivalent one, without prior notice. |
"
"
"
"
"
"
"
"
