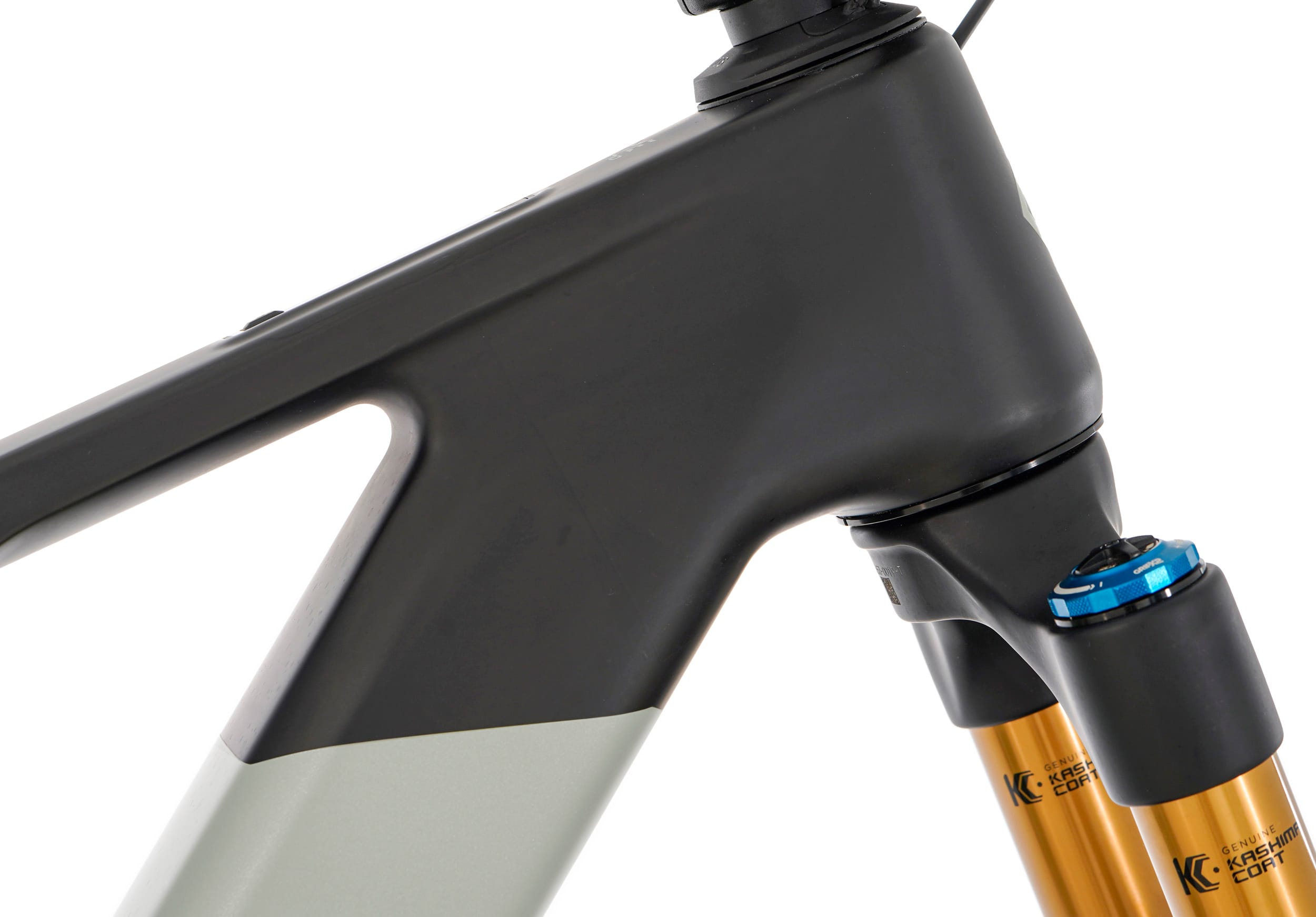

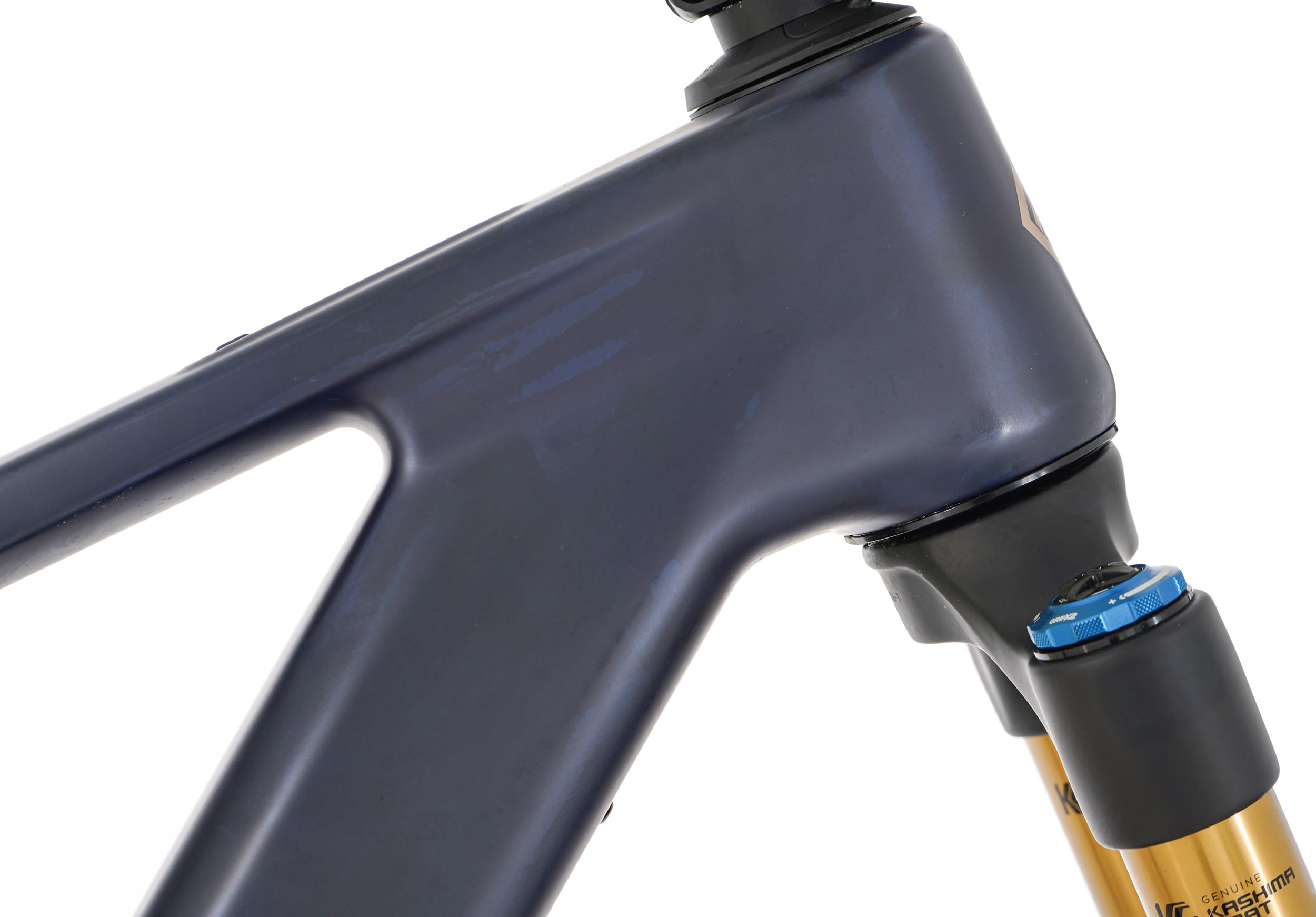

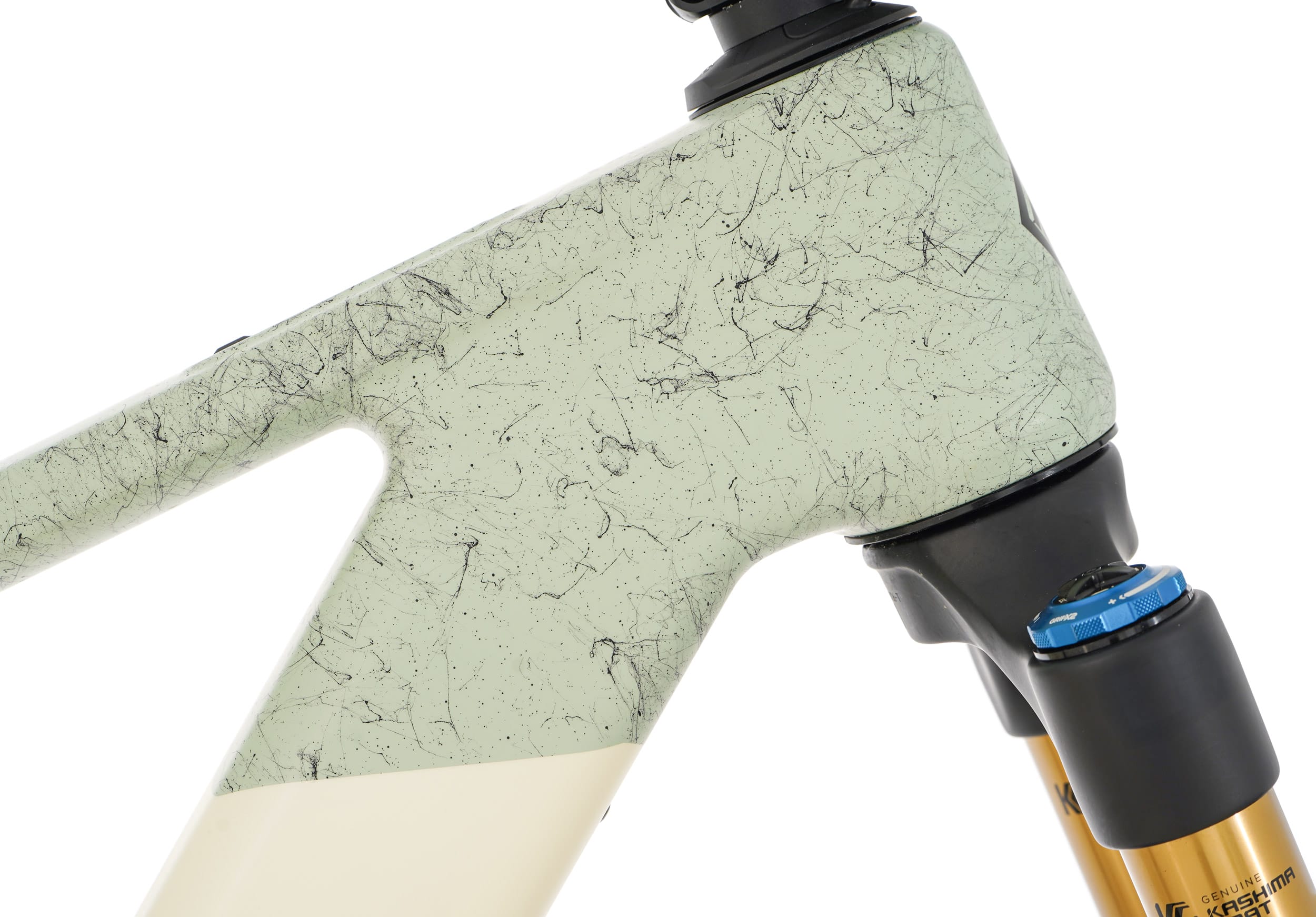

Frame | Full Carbon Frame, Alloy shock extension, Full Integratted Battery, 12 x 148 Boost, Megamo ASP, Wheel travel: 170/160 mm |
 |

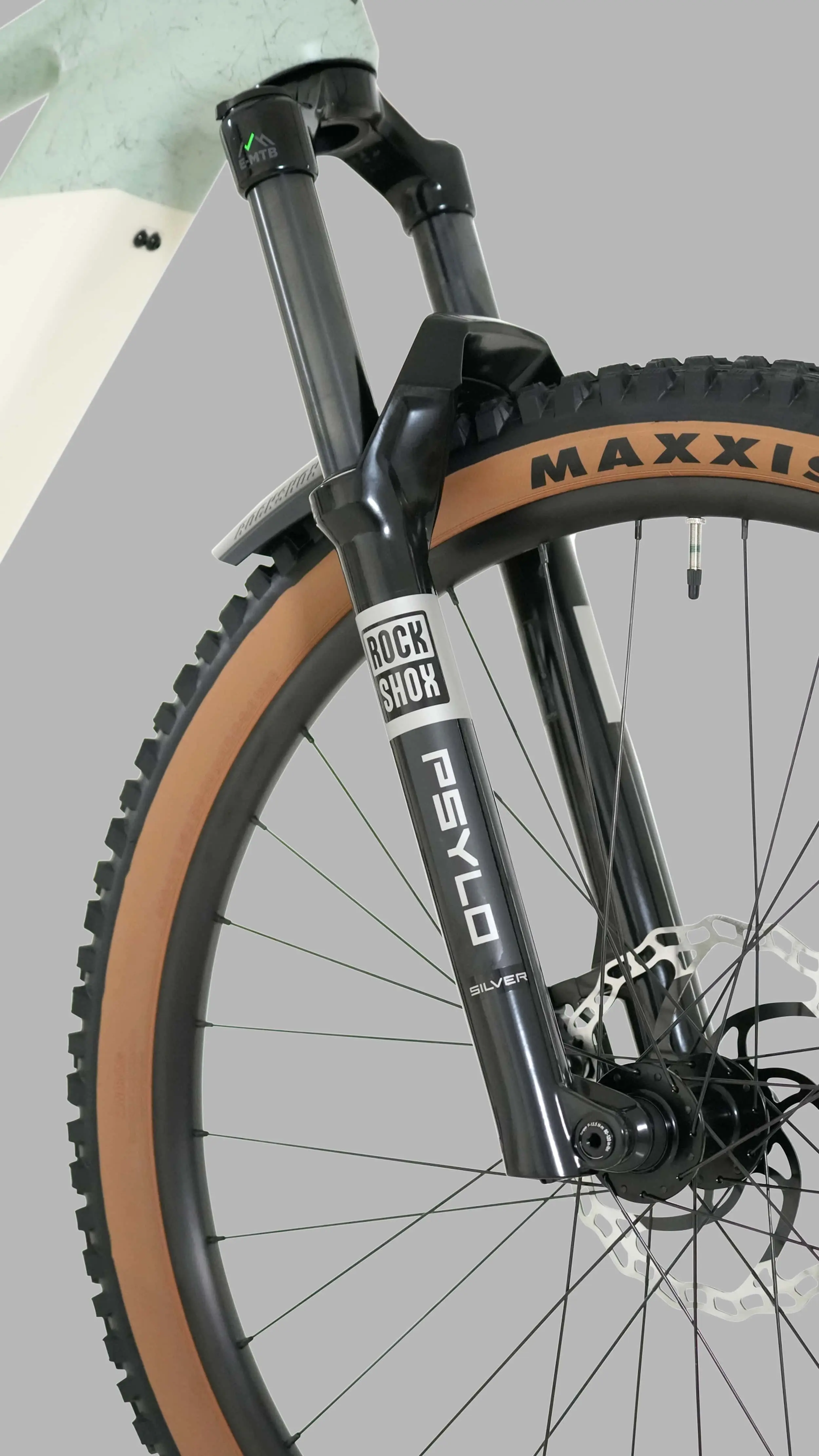

Fork | Rock Shox 35 Psylo Silver RC, 150mm Travel, 15x110mm BOOST, 1.8" Tapered, 44mm offset |
 |
Shock | Rock Shox Deluxe Select R, 230x60mm |
 |
Headset | Acros AZX-286R1 ZS56 blocklock 150º |
 |
Motor | Bosch Performance Line CX, 5gen BDU384Y, Smart System / 100Nm 750W |
 |
Battery | Bosch PowerTube 800 |
 |
Display | Bosch Display Kiox 400C (BRC3200) |
 |

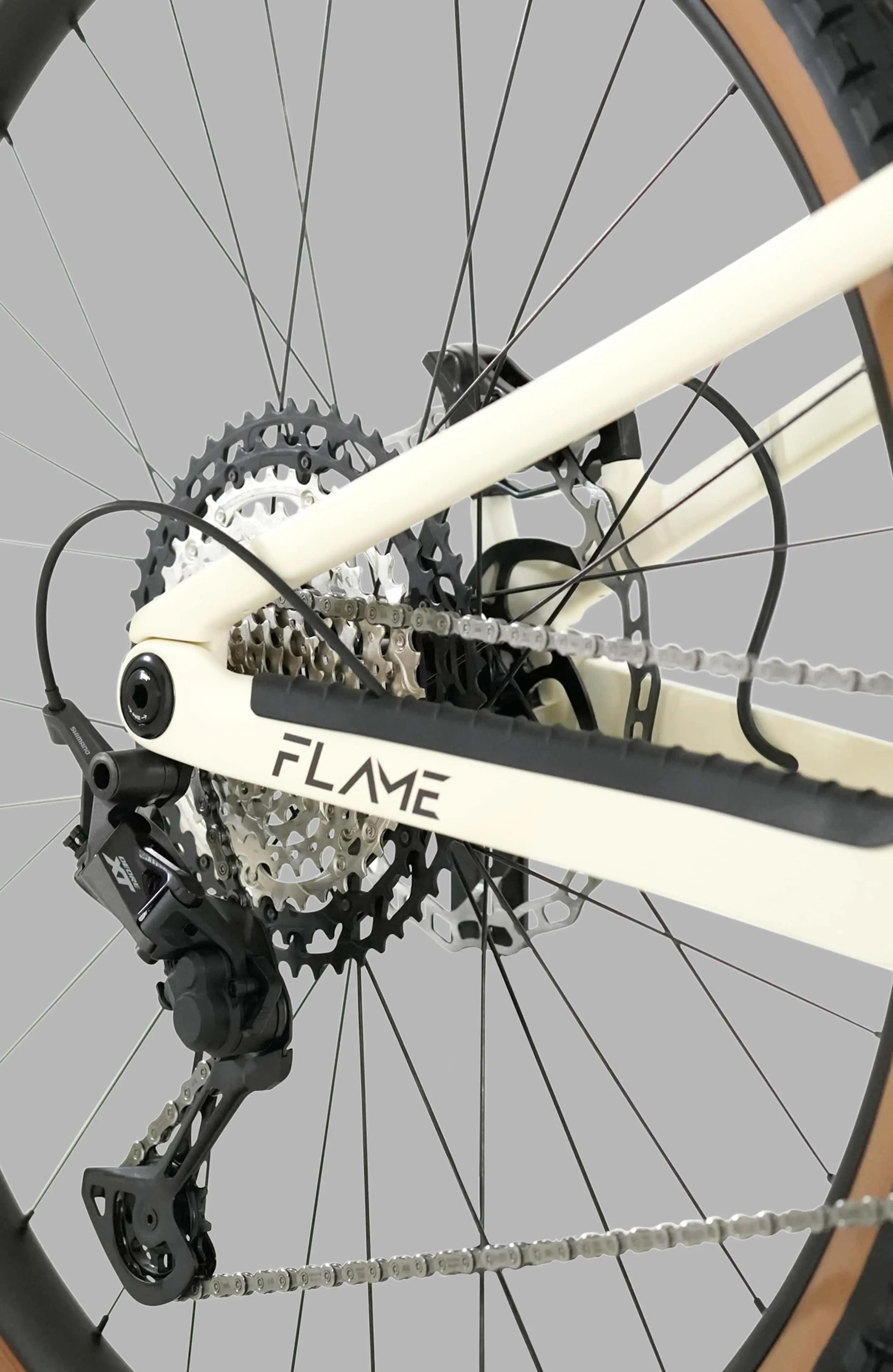

Rear Derailleur | Shimano XT M8100, Shadow Plus 12-Speed |
 |
Shifters | Shimano Deore 6100 Speed Rapidfire Plus 12-Speed |
 |
Crankset | FSA Bosch Direct Mount Chainring 34t CL55 12-Speed, Crankset 320 165mm |
 |
Cassette | Shimano Deore 6100 10-51T |
 |
Brakes | Shimano MT520 hydraulic disc 4-Piston, 203mm |
 |
Tires | Maxxis Front: 29 x 2.5 Assegai, Rear: 29 x 2.4 Minion DHR II |
 |
Hubs | Megamo Hubs, Front axle 15 x 110 mm, Rear axle 12 x 148 mm BOOST EBIKE+ |
 |
Wheels | Megamo 29 SL 30 ASY - Micro, 30 mm Tubeless ready Aluminium rim |
 |
Handlebar | Megamo Alloy Butted 31,8 x 780 mm, 12 mm Rise, 6º Back Sweep |
 |
Stem | Satori New Ursa 35mm |
 |
Seatpost | Megamo Ø 31,6mm telescopic seat post, remote adjustment S size 125 mm Drop / M size 150 mm Drop / L size 170 mm Drop |
 |
Seat | Fizik Terra Aidon X5 |
* Megamo reserves the right to change any component, if necessary by replacing it with an equivalent one, without prior notice. |
