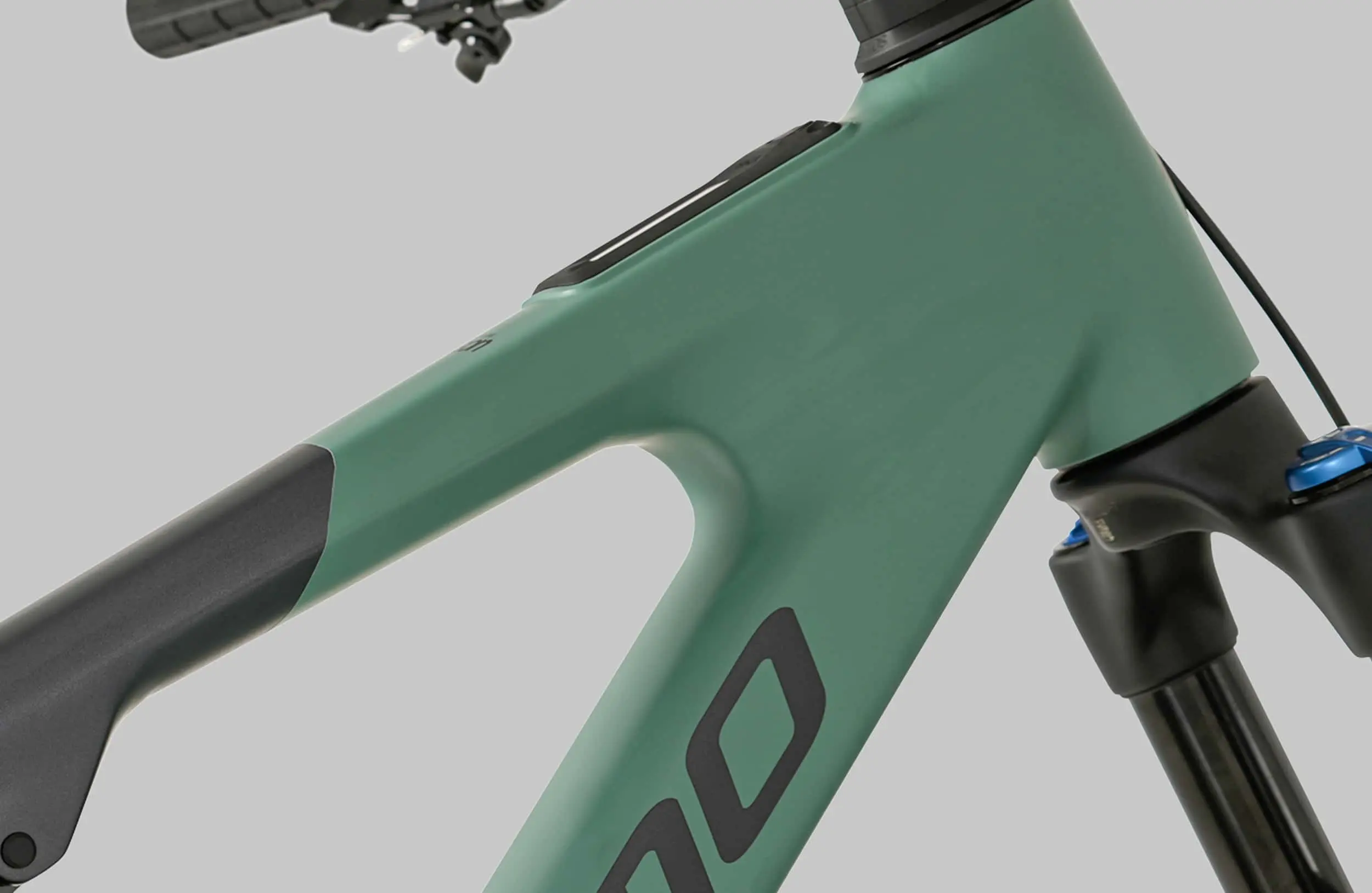

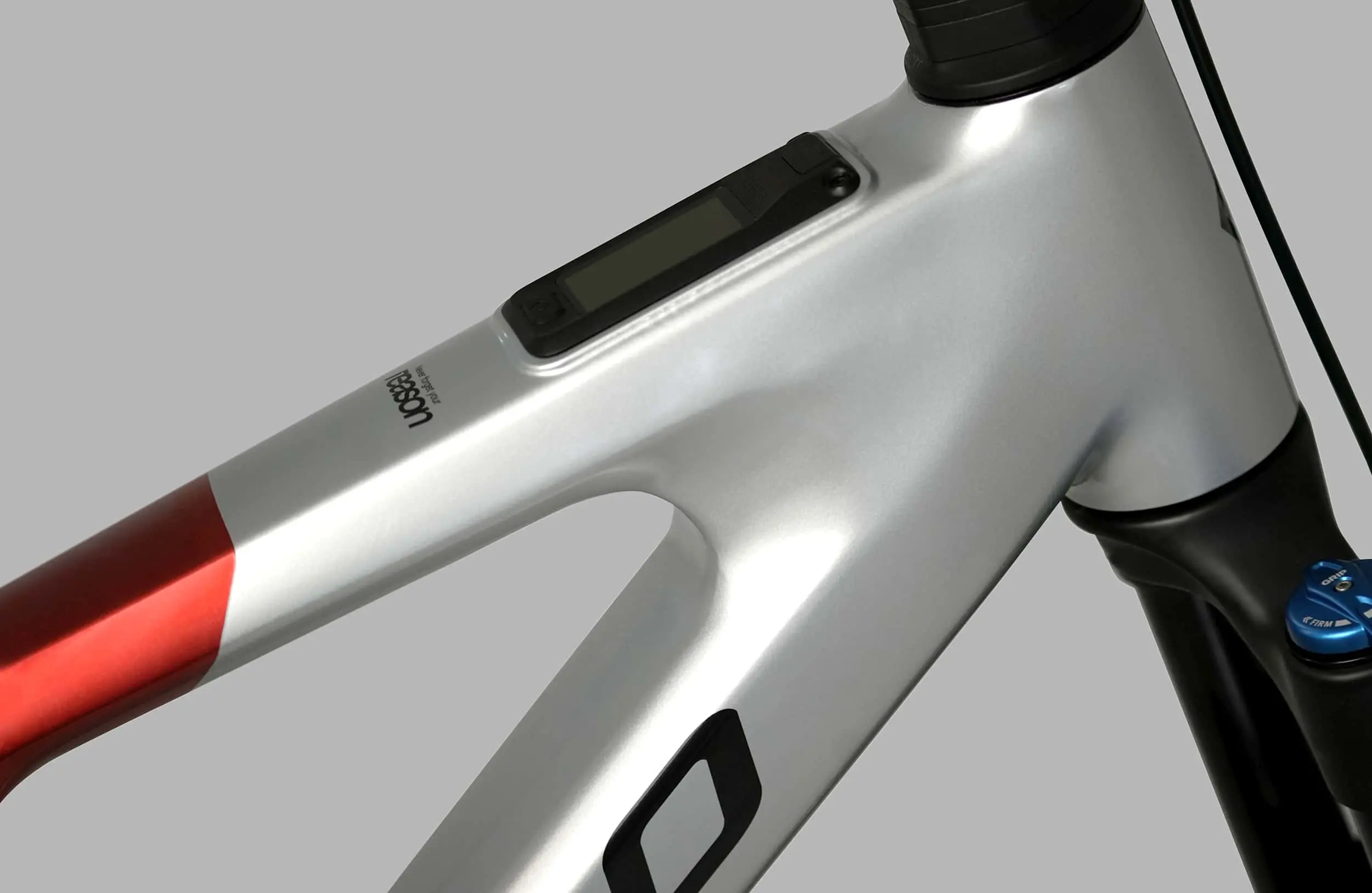

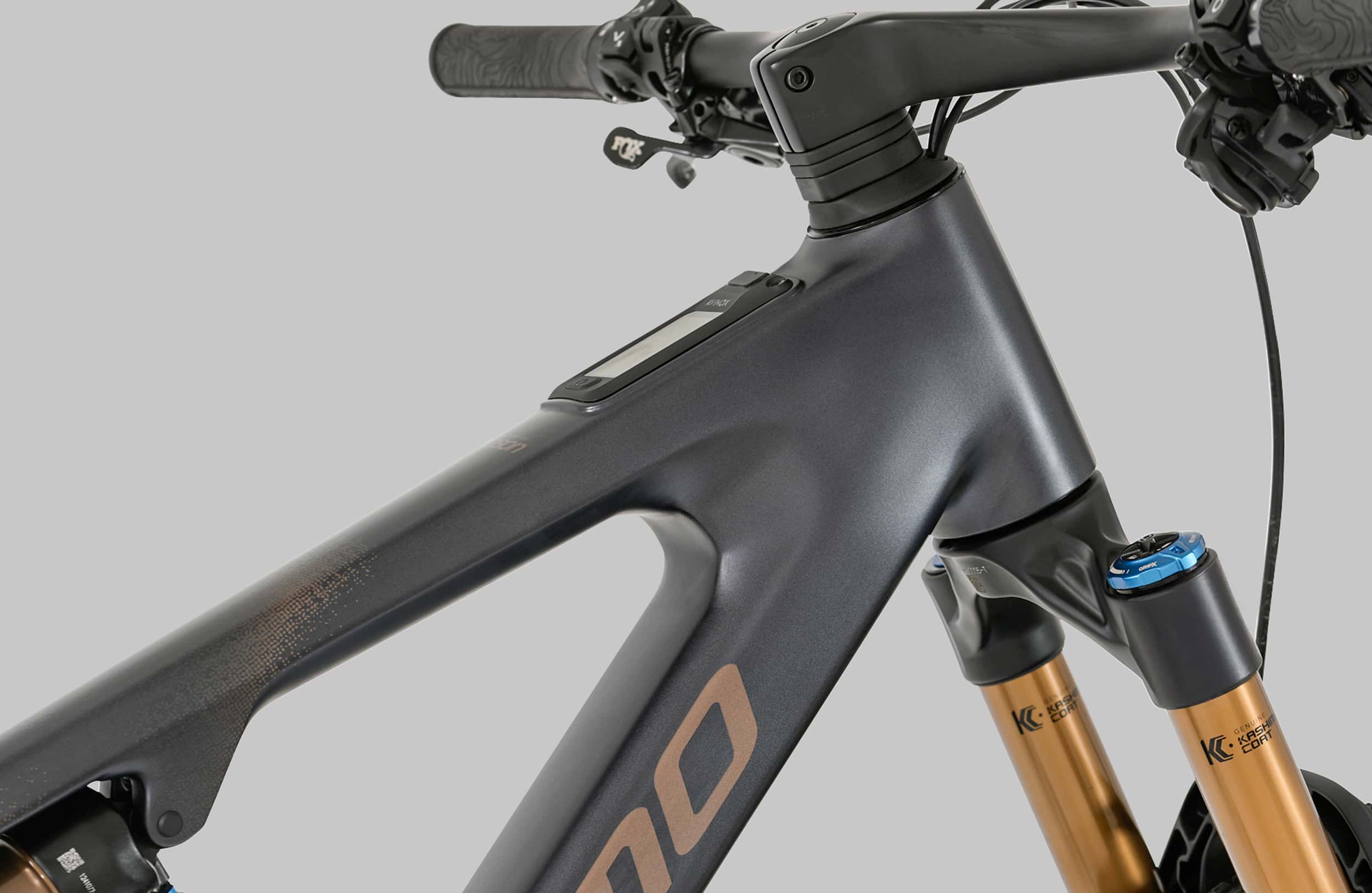

Frame | Reason AL Frame, Alloy shock extension, Full Integratted Battery, 12 x 148 Boost, Megamo ASP, Wheel travel: 140 mm |
 |
Fork | Fox 36 SL Factory Kashima, 140mm, Grip X, Rake: 44mm |
 |
Shock | FOX Float Factory Kashima, 210x47,5 mm, Evol LV, Low Speed Rebound, 2 Position |
 |
Headset | Acros AZX-589 ZS56 blocklock 150º |
 |
Motor | DJI Avinox M1, 120Nm 1000W (Boost mode) / 105Nm 1000W, 5 assistance modes, 150rpm |
 |
Battery | DJI Avinox 800 Wh, 35,9V, IP56 |
 |
Display | DJI Avinox DP100, pantalla táctil OLED a todo color de 2 pulgadas, 800nits, 326ppi |
 |
Rear Derailleur | Sram Eagle 90 T-Type 12s |
 |
Shifters | Sram Eagle 90 Transmision Shifter 12s |
 |
Crankset | 34T BCD 104mm with chainring bolt / Forged AL6061/T6 165mm beat blasted anodized black |
 |
Cassette | Sram XS-1270 Eagle 10-52T |
 |
Brakes | Shimano XT BR-M8220, hydraulic disc 4-Piston, 203/203mm |
 |
Tires | Front: Pirelli Scorpion 29x2.4 MTB scM Trail ProWALL SmartGRIP / Rear: Pirelli Scorpion 29x2.4 MTB scR Trail ProWALL SmartGRIP |
 |
Wheels | DT Swiss H 1900 SPLINE, 30mm Tubeless ready Aluminium rim, 370 Ratchet LN 18 |
 |
Handlebar | Full Integrated Carbon Handlebar / S, M size 60 x 760 mm / L, XL size 80 x 760 mm |
 |
Seatpost | Fox Transfer Kashima SL 31,6mm telescopic seat post, remote adjustment S size 100 mm Drop / M, L size 125 mm Drop / L size 150 mm Drop |
 |
Seat | Fizik Ridon X5 |
* Megamo reserves the right to change any component, if necessary by replacing it with an equivalent one, without prior notice. |
"
"
"
"
"
"
"
"
"
"
"
"
