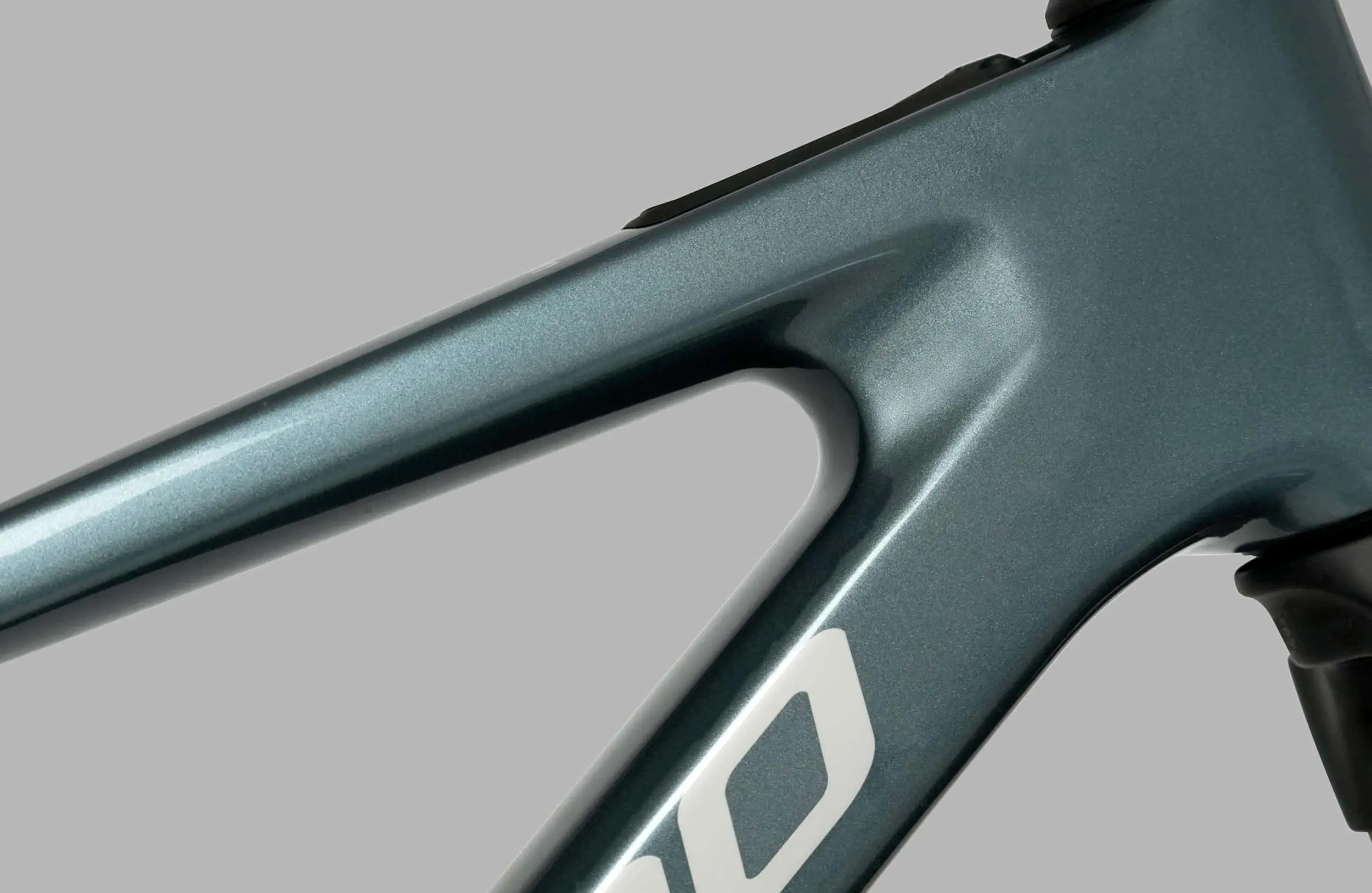

Frame | Reason Full Carbon Frame, Alloy shock extension, Full Integratted Battery, 12 x 148 Boost, Megamo ASP, Wheel travel: 160 mm |
 |
Fork | Fox 36 Factory Kashima, Float, 29in, 160mm, Grip X2, Rake: 44mm |
 |

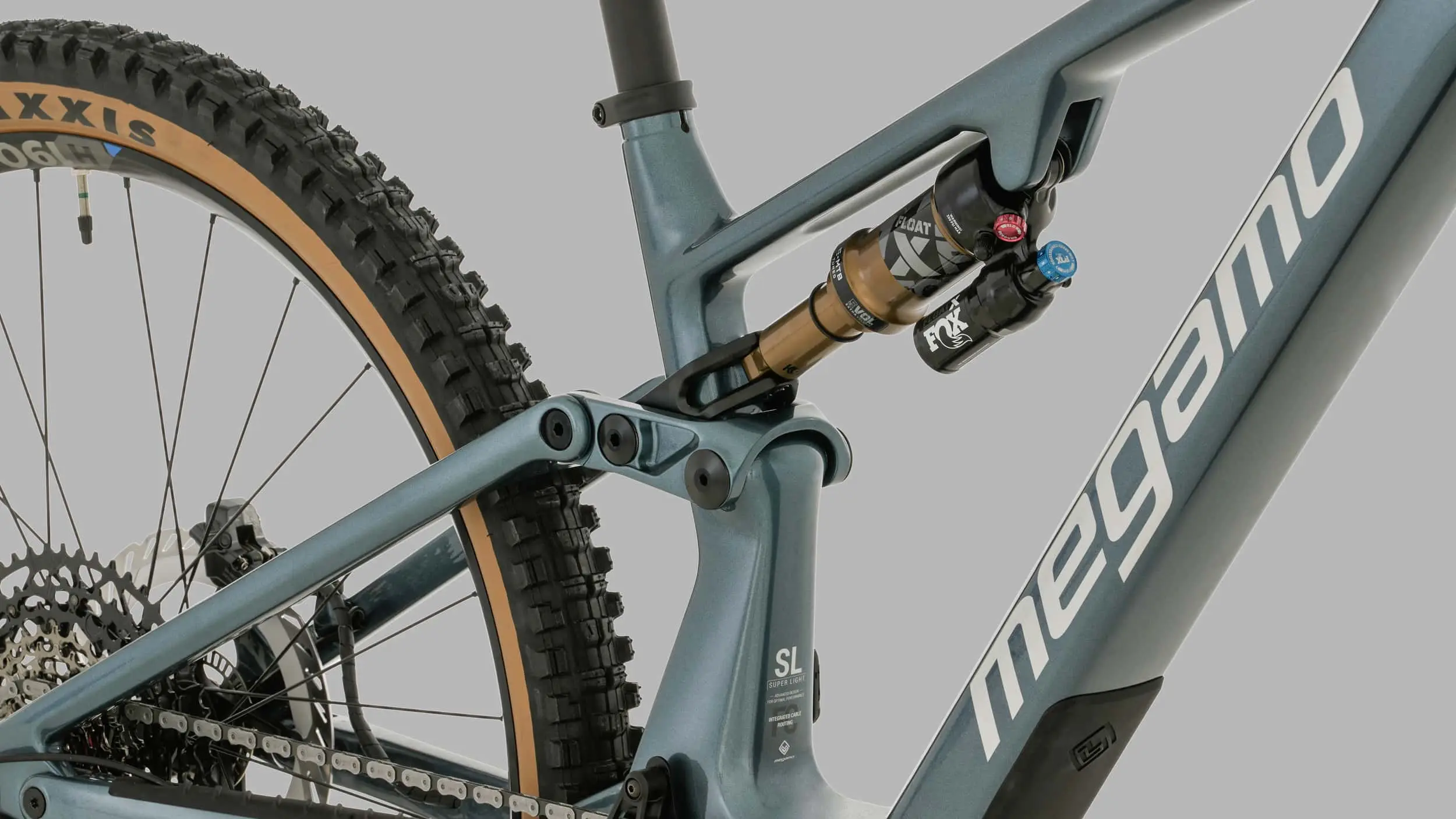

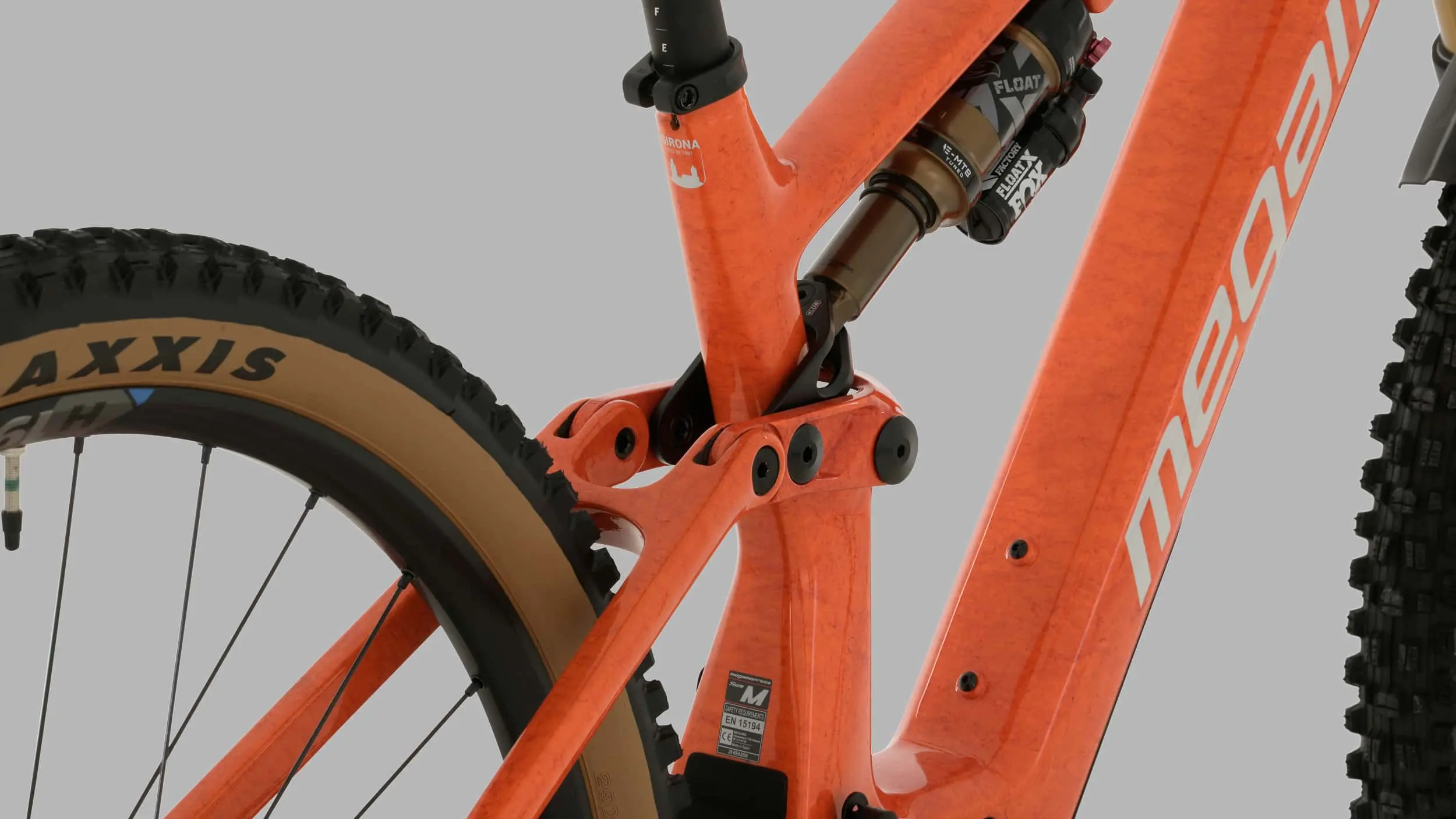

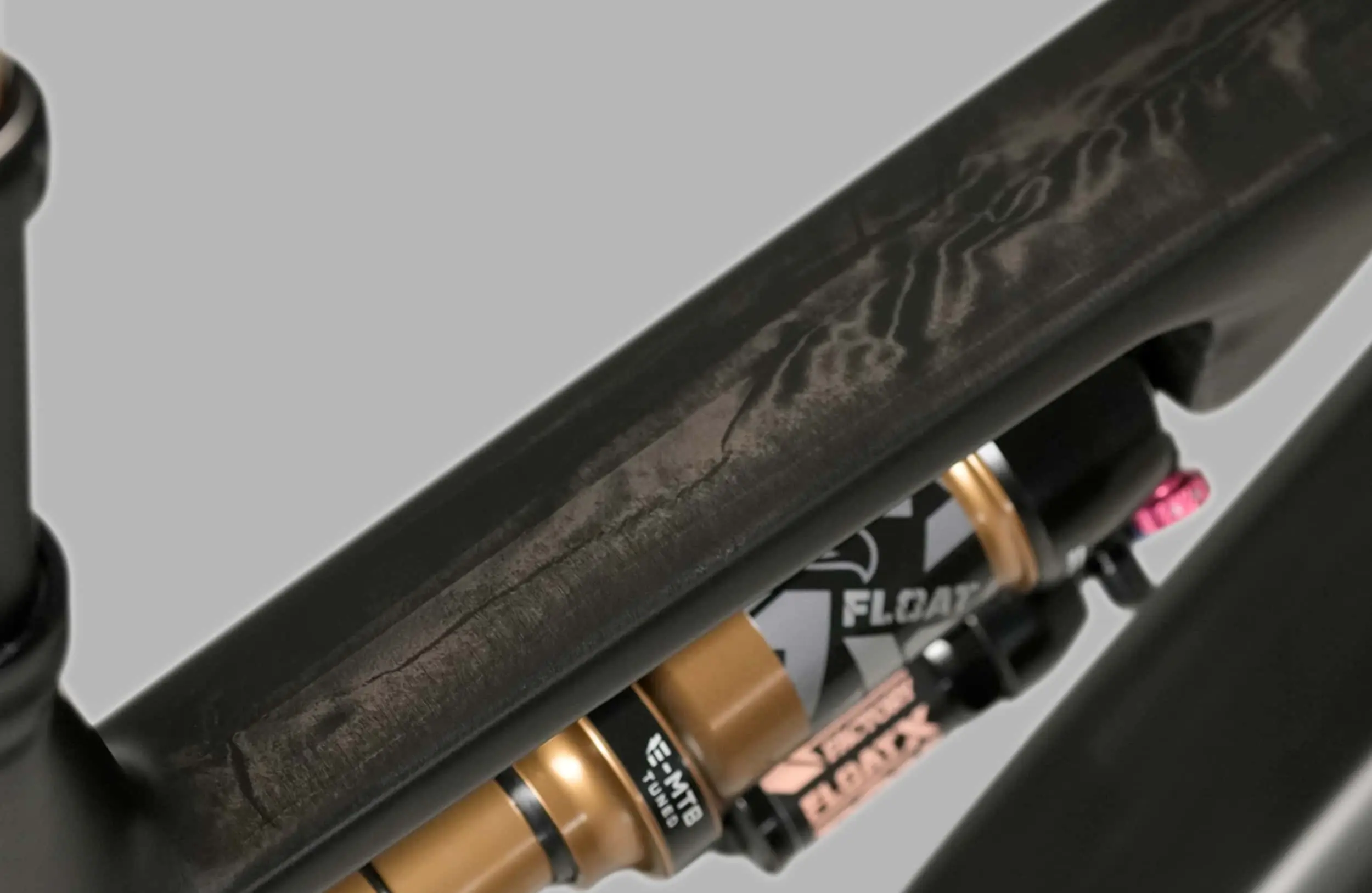

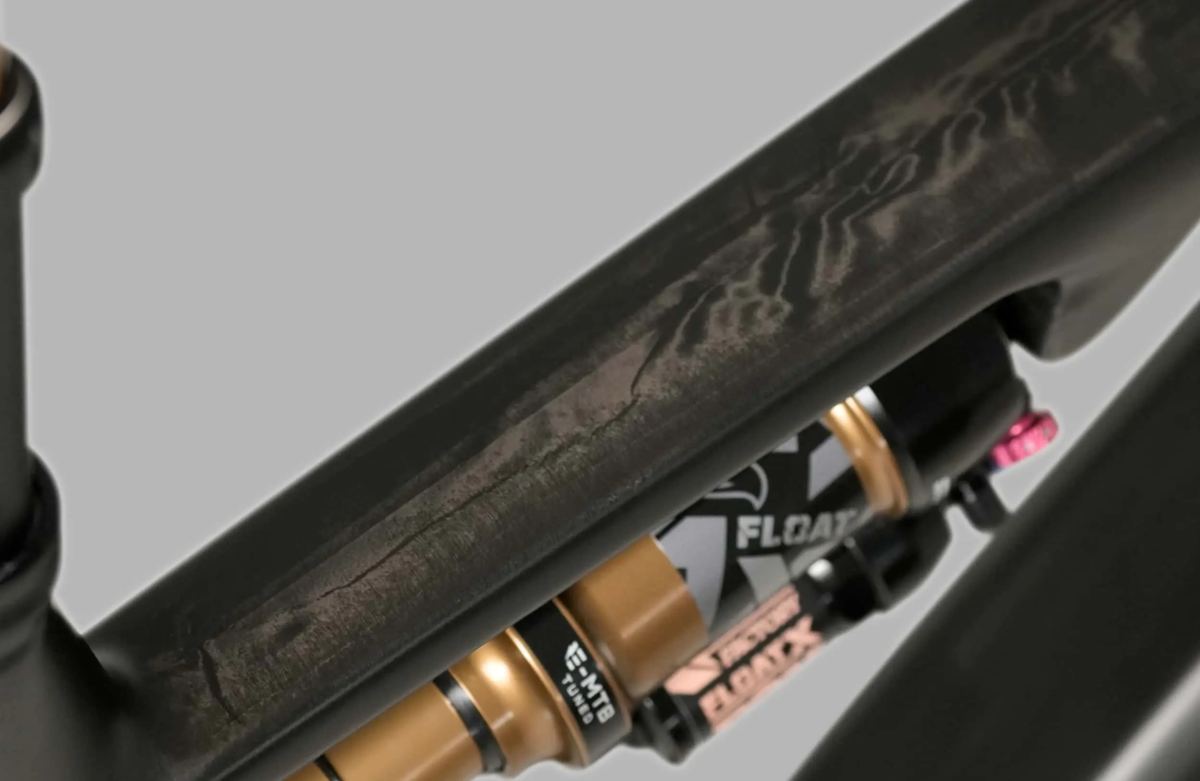

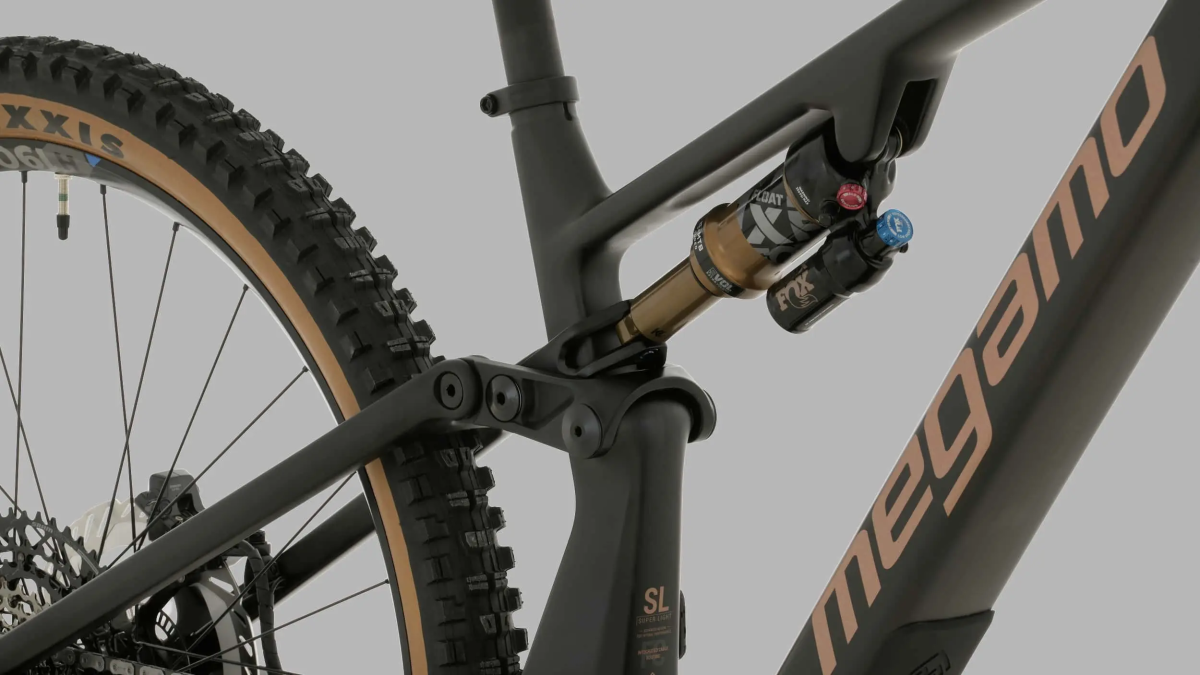

Shock | Fox FLOAT X, Factory Series, Kashima 2pos-adj, Evol LV, 210x55 |
 |
Headset | Acros AZX-589 ZS56 blocklock 150º |
 |

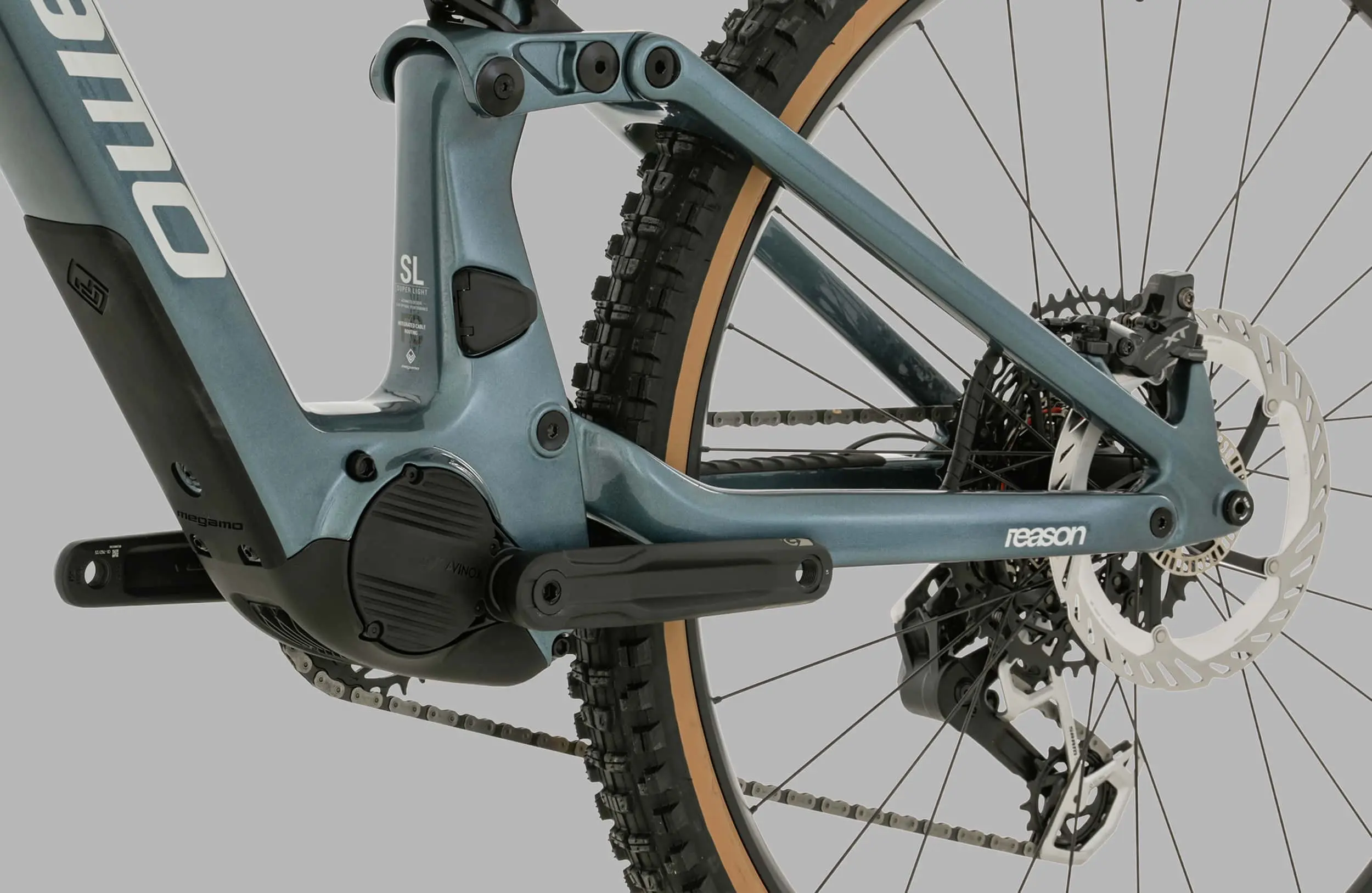

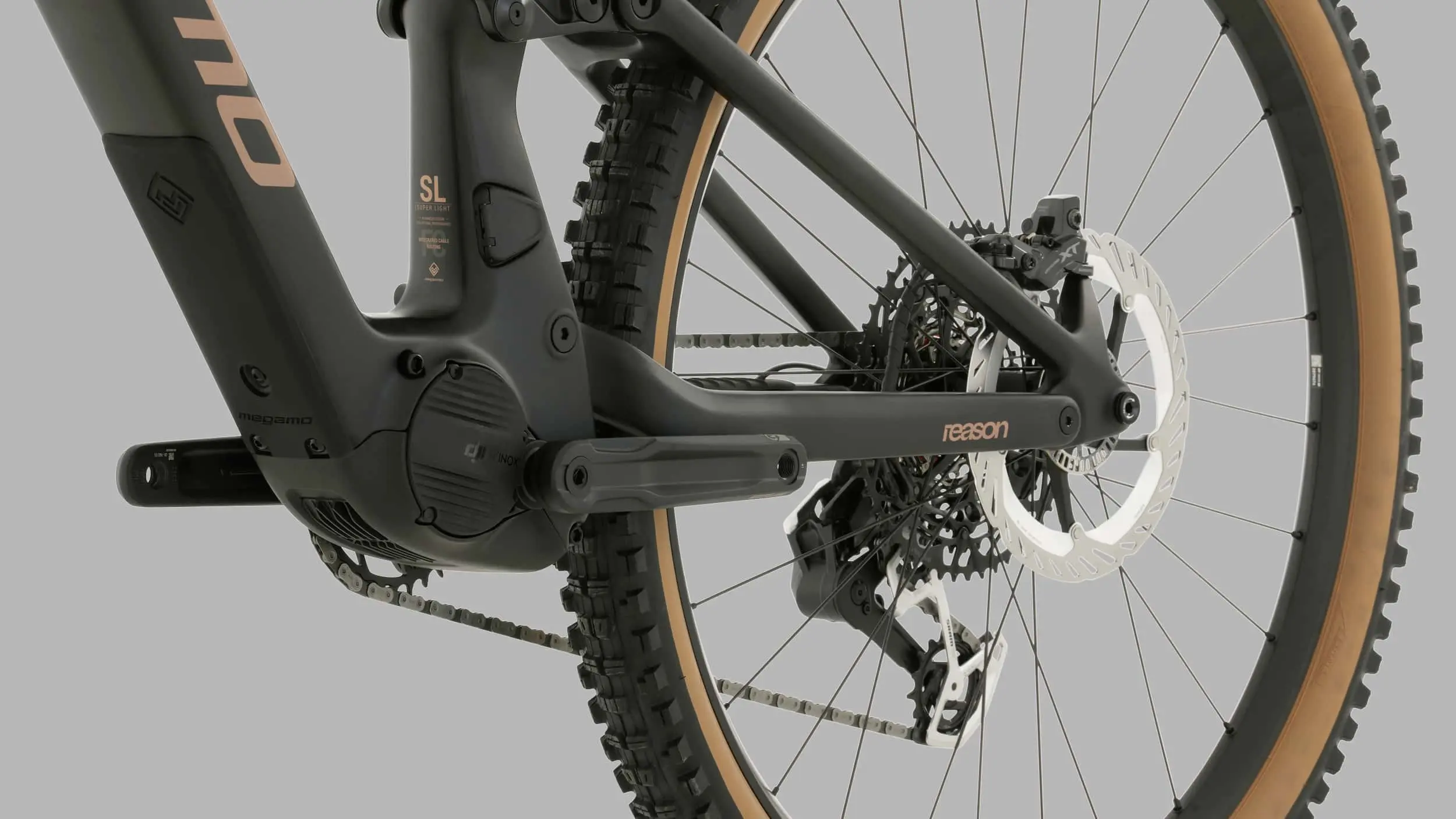

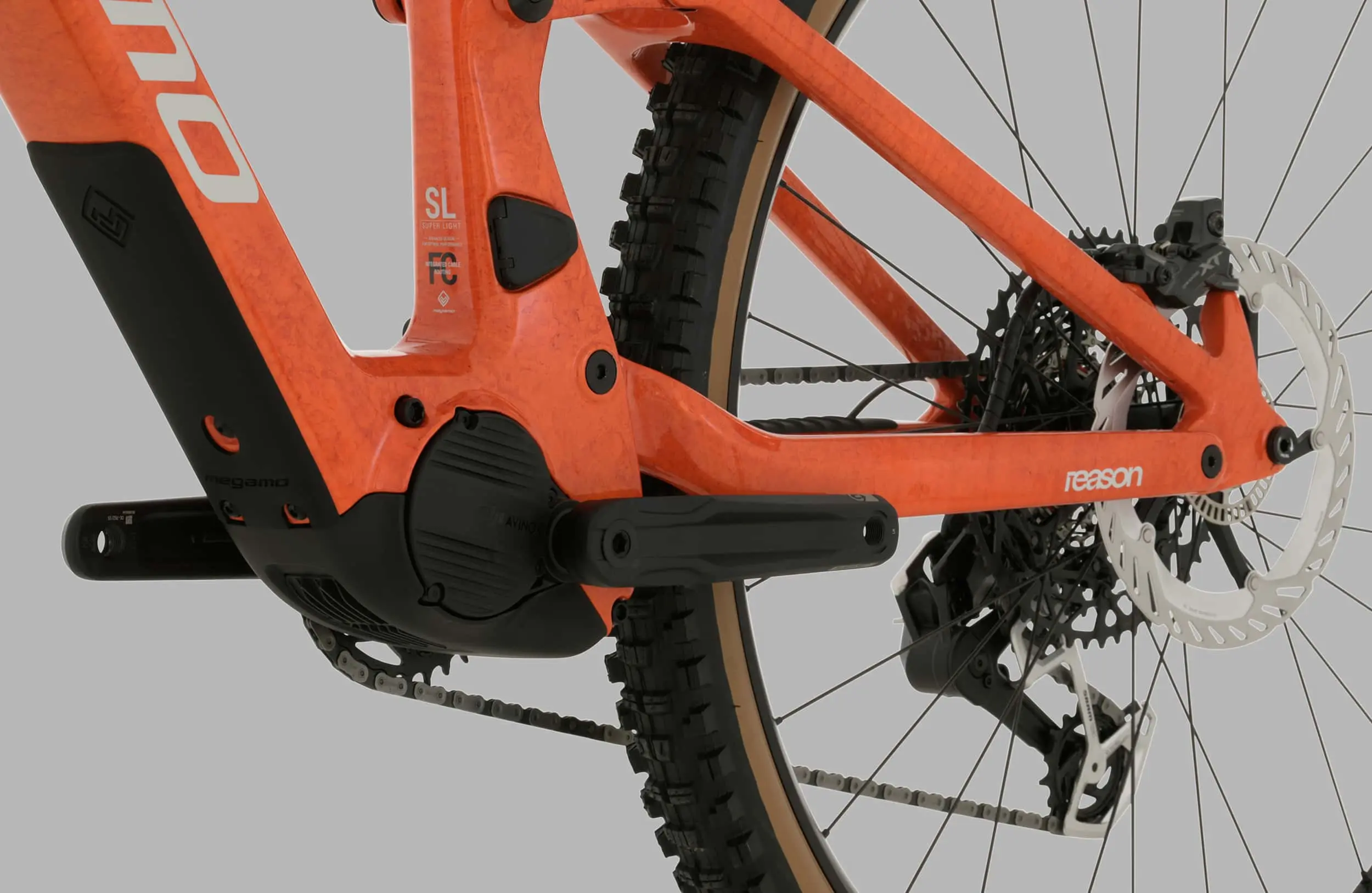

Motor | DJI Avinox M1, 120Nm 1000W (Boost mode) / 105Nm 1000W, 5 assistance modes, 150rpm |
 |
Battery | DJI Avinox 800 Wh, 35,9V, IP56 |
 |

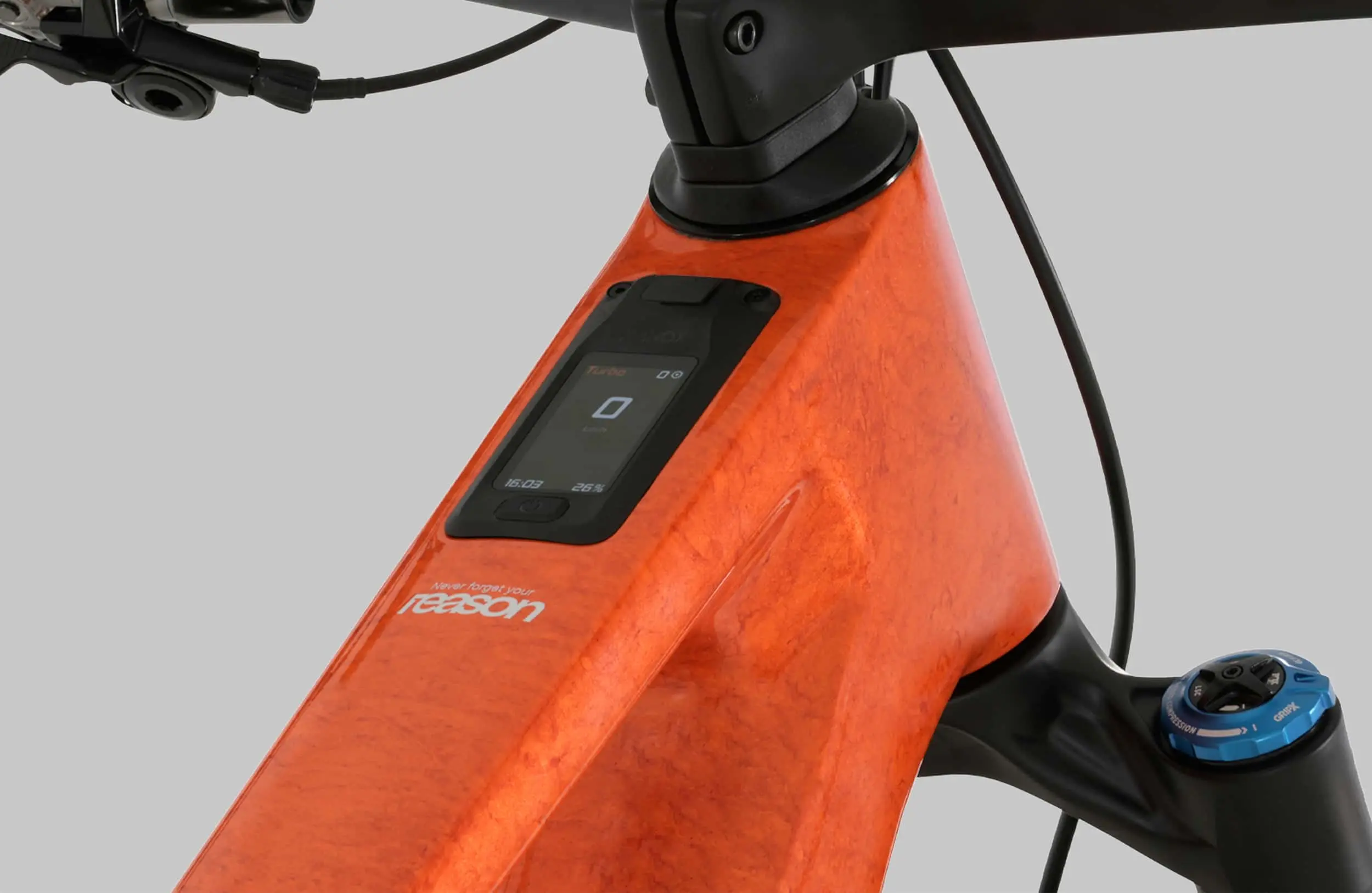

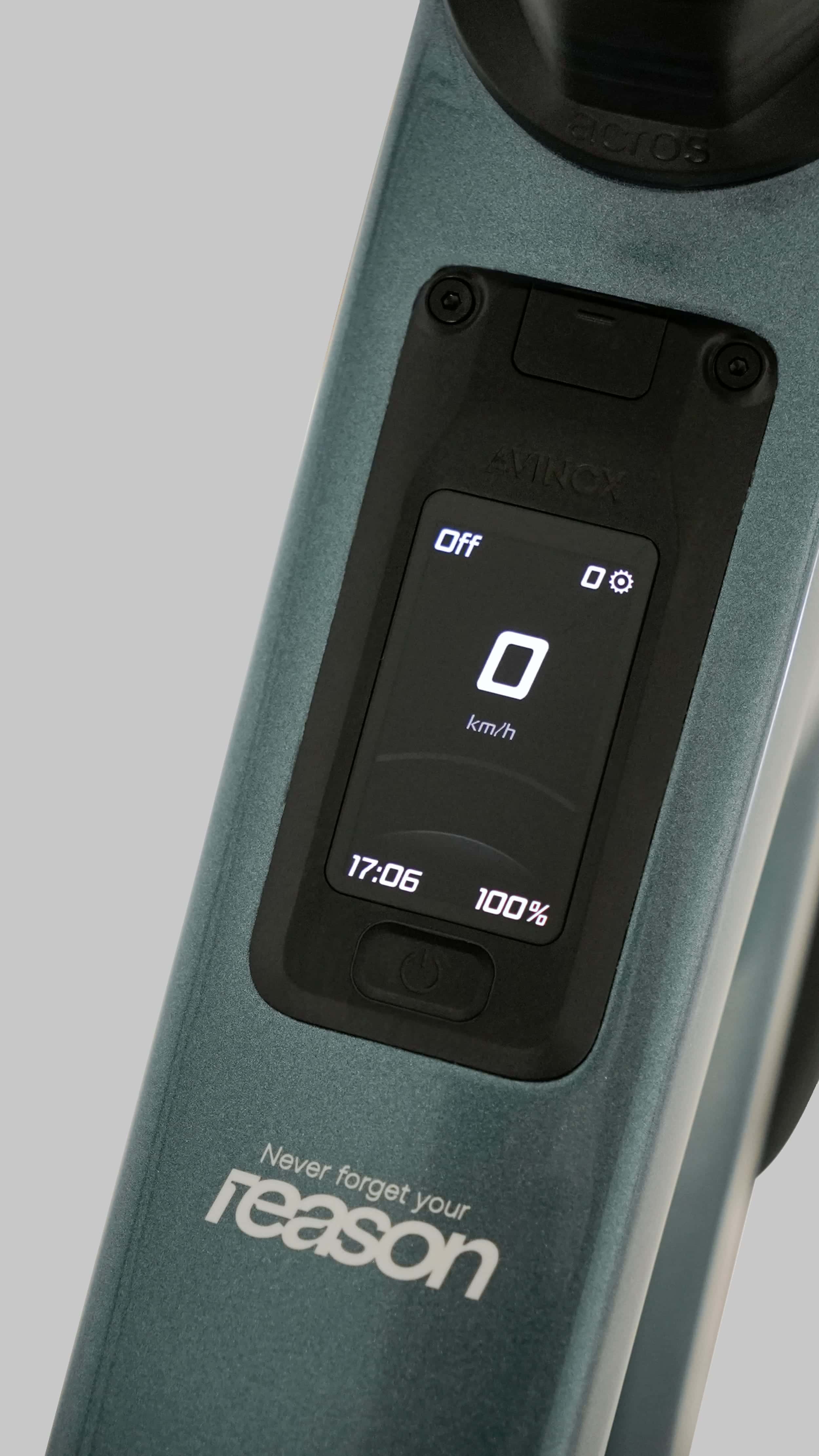

Display | DJI Avinox DP100, pantalla táctil OLED a todo color de 2 pulgadas, 800nits, 326ppi |
 |

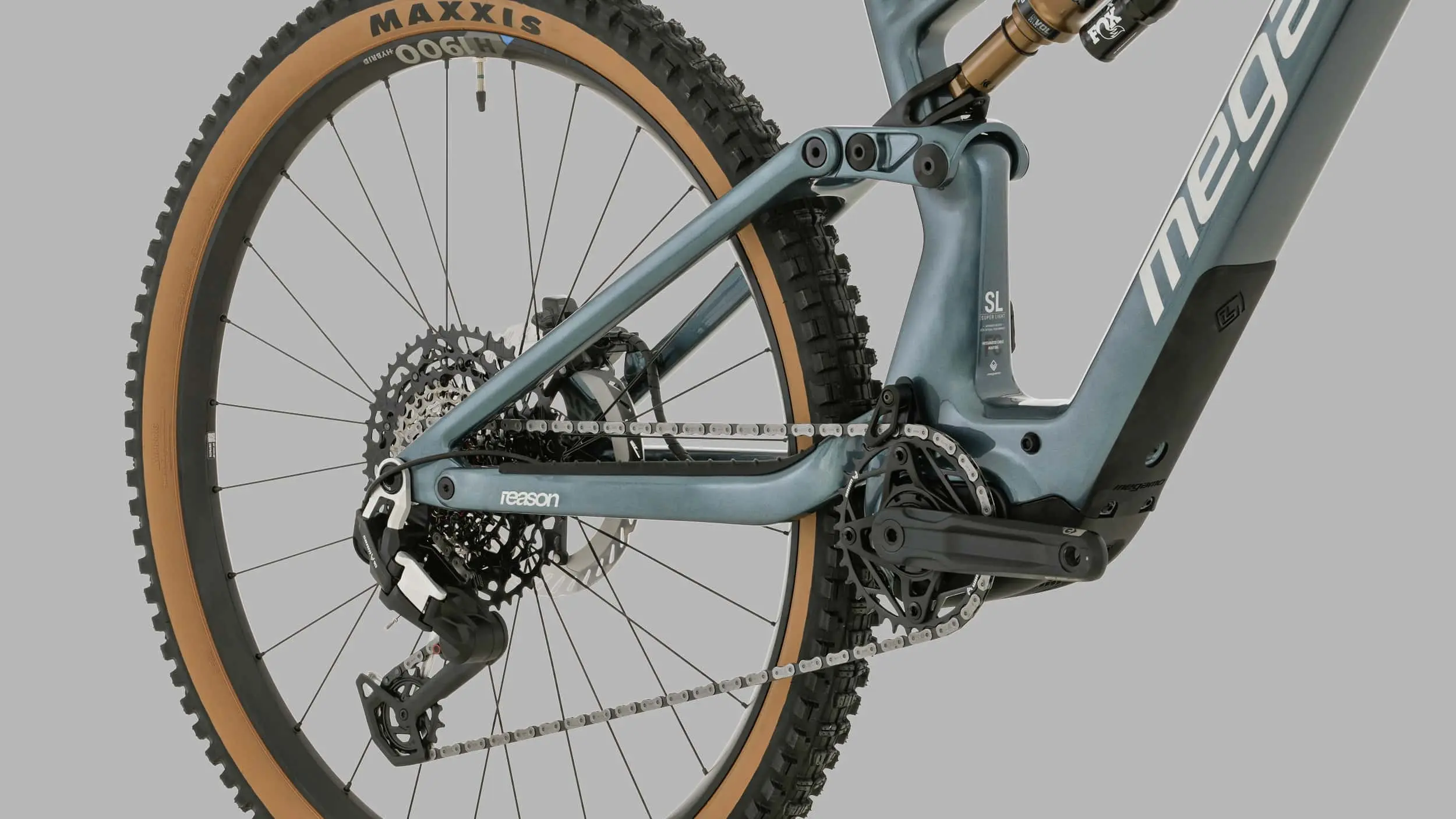

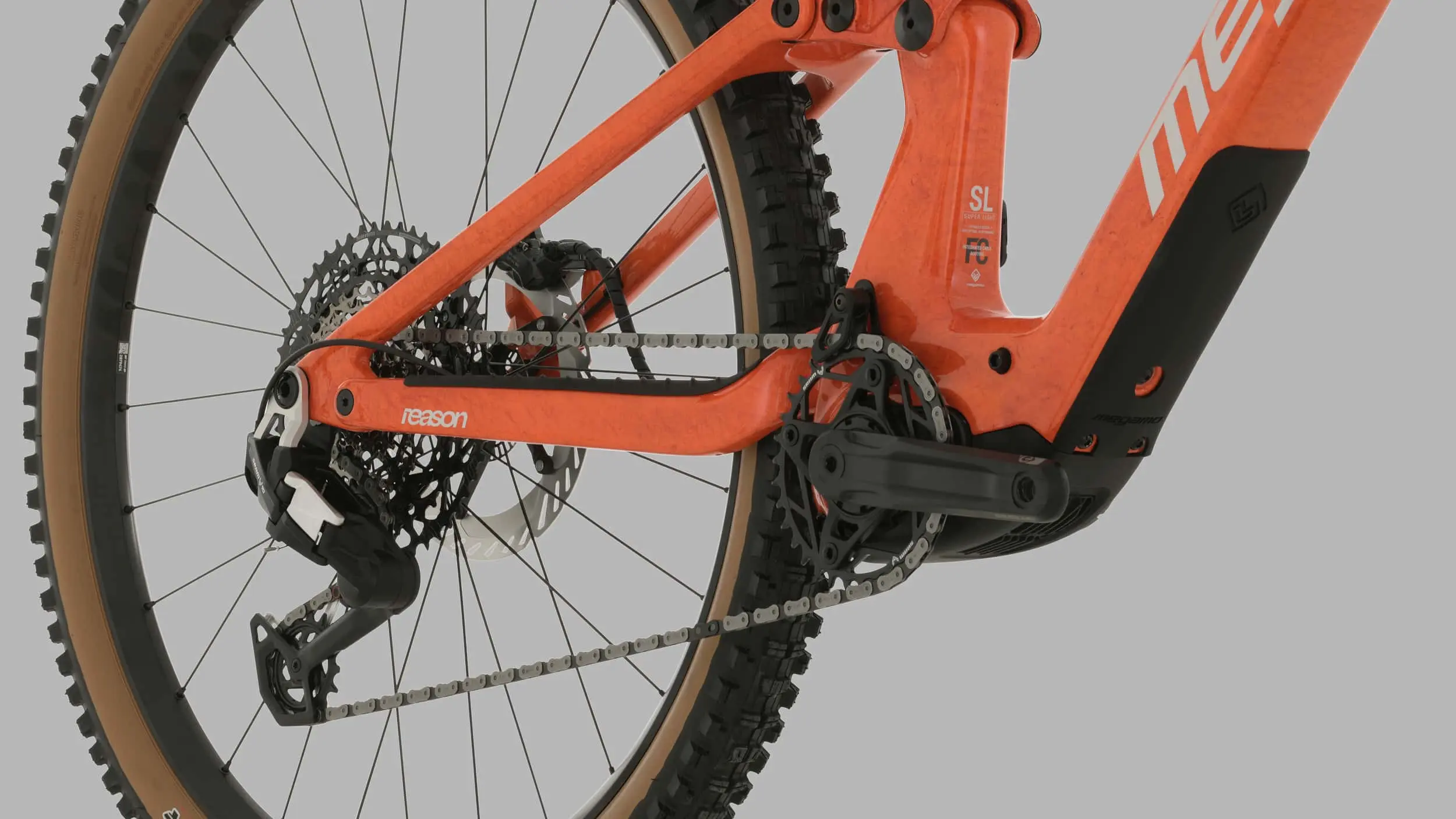

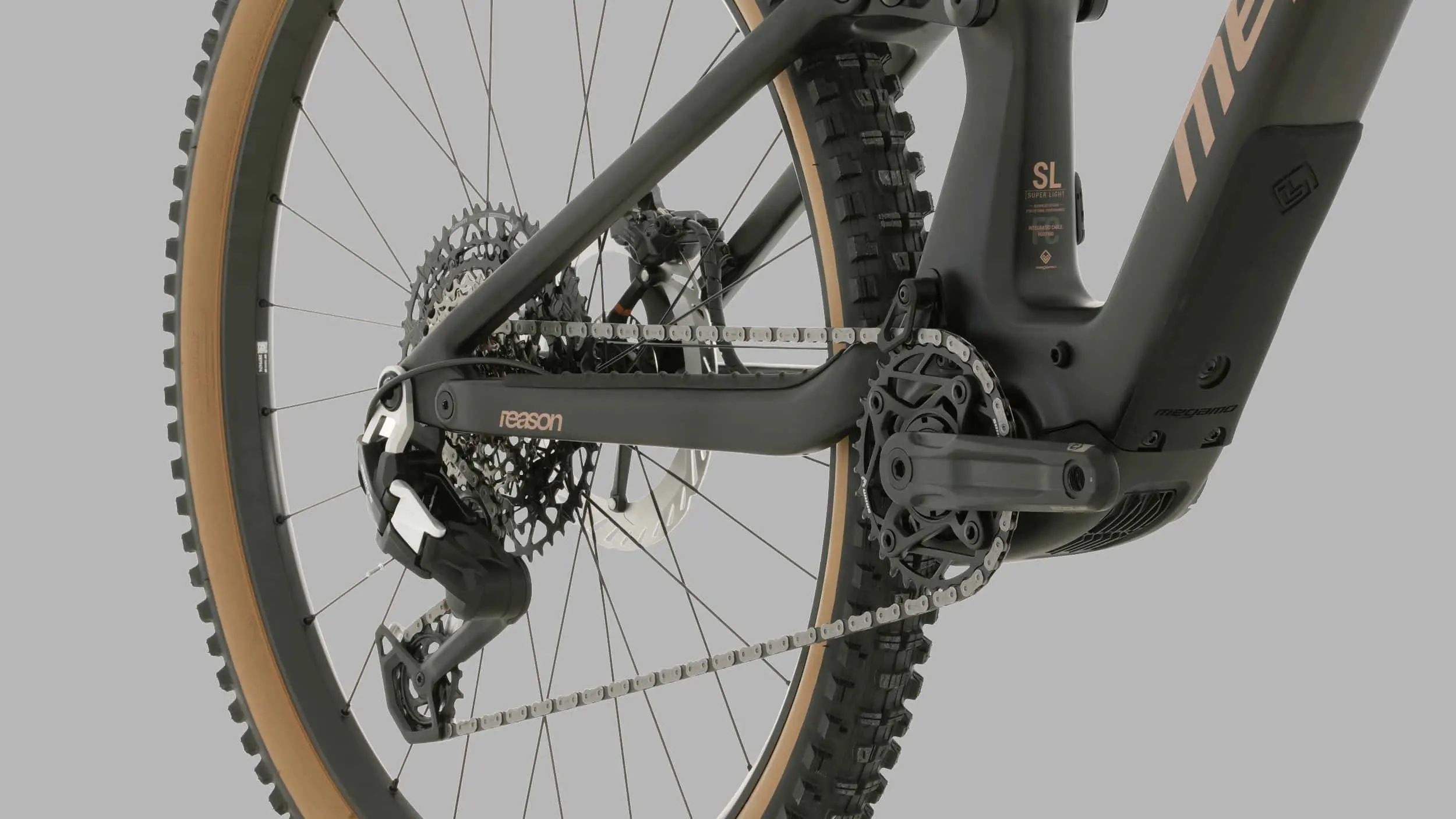

Rear Derailleur | Sram Eagle 90 T-Type 12s |
 |
Shifters | Sram Eagle 90 Transmision Shifter 12s |
 |
Crankset | 34T BCD 104mm with chainring bolt / Forged AL6061/T6 165mm beat blasted anodized black |
 |
Cassette | Sram XS-1270 Eagle 10-52T |
 |
Brakes | Shimano XT BR-M8220, hydraulic disc 4-Piston, 203/203mm |
 |
Tires | Maxxis Front: 29 x 2.5 Assegai, Rear: 29 x 2.4 Minion DHR II |
 |
Wheels | DT Swiss H 1900 SPLINE, 30mm Tubeless ready Aluminium rim, 370 Ratchet LN 18 |
 |
Handlebar | Carbon Race Face ERA 35x800, Rise 20mm |
 |
Stem | Satori New Ursa 35mm |
 |

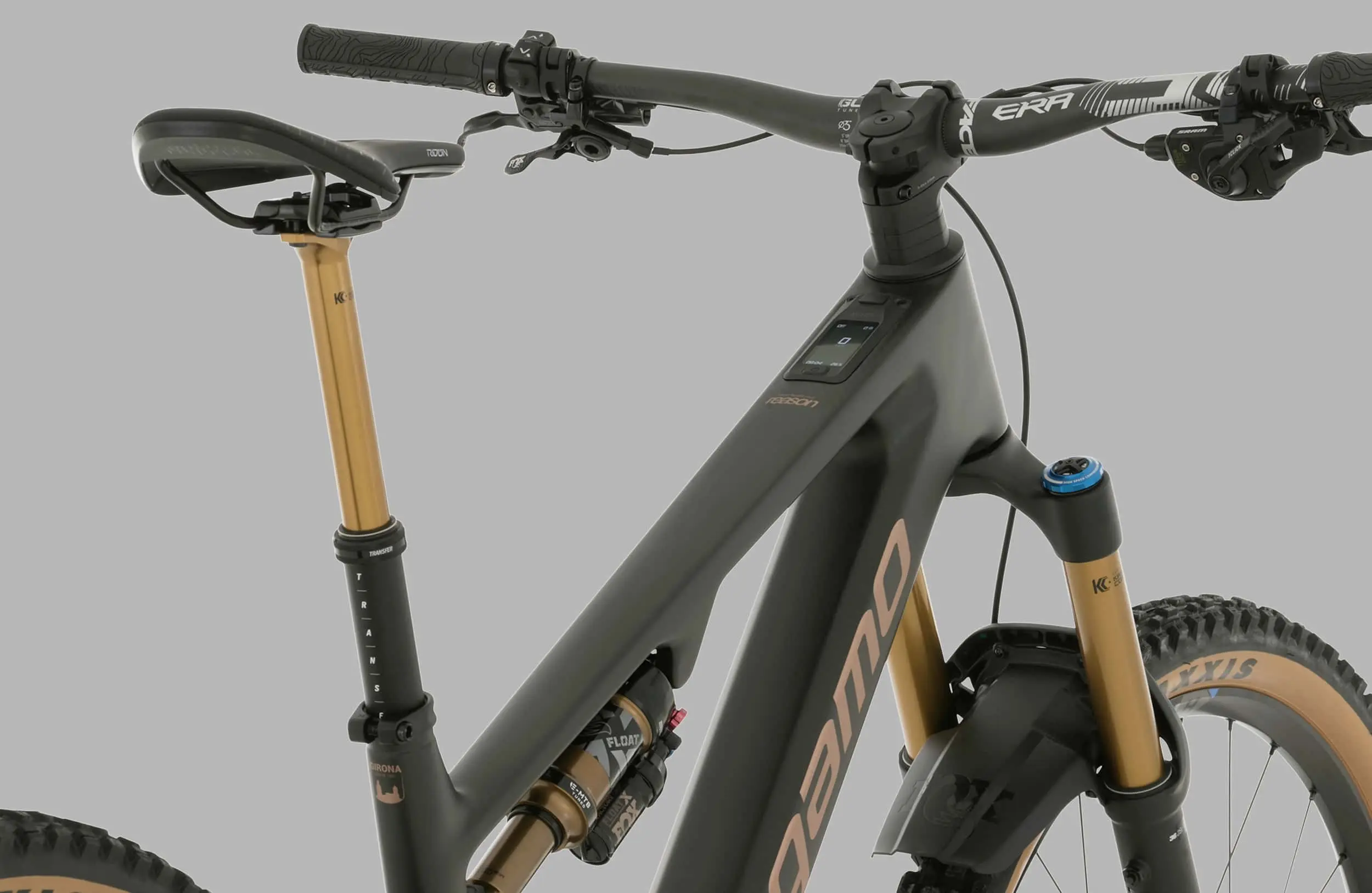

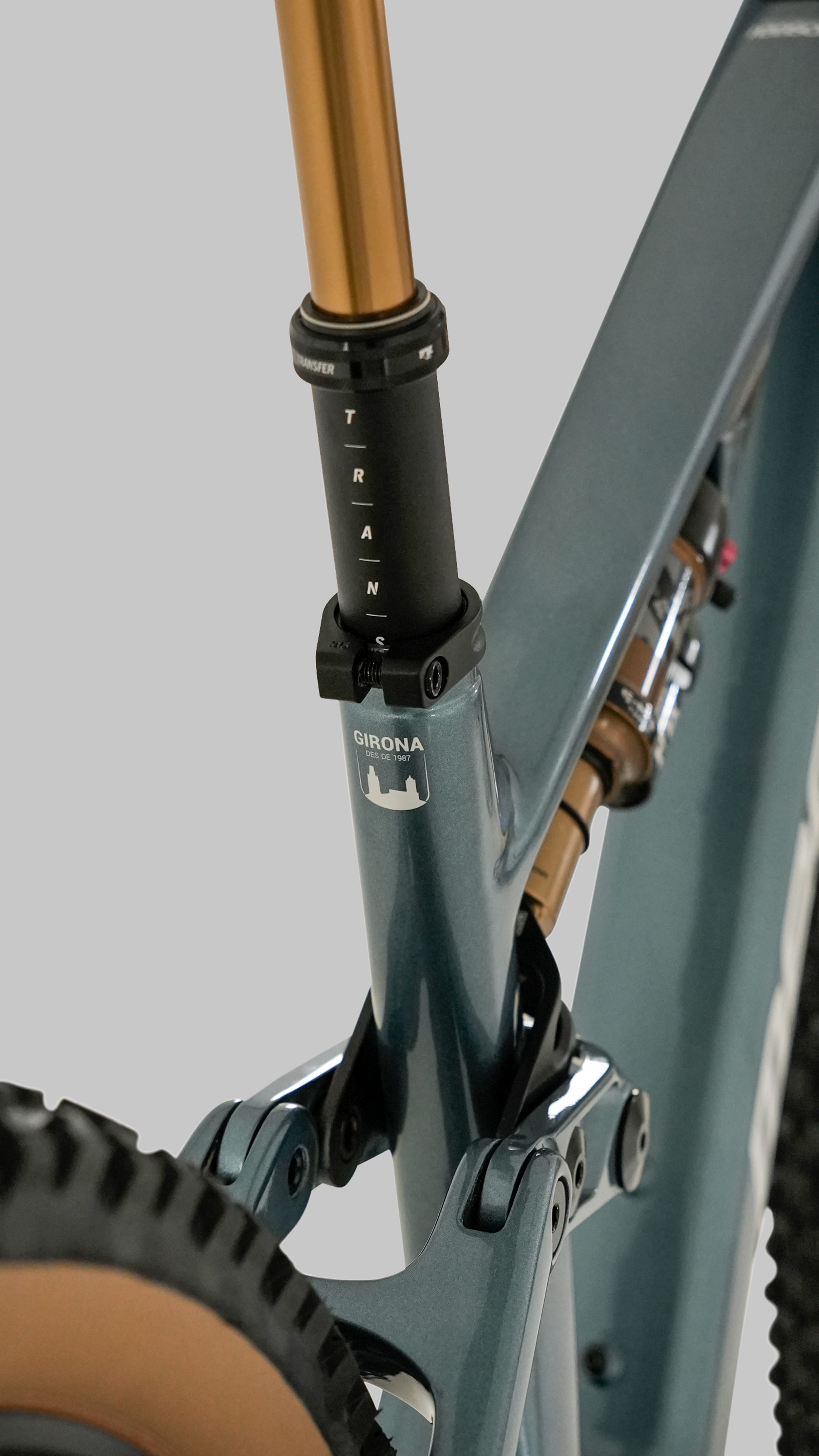

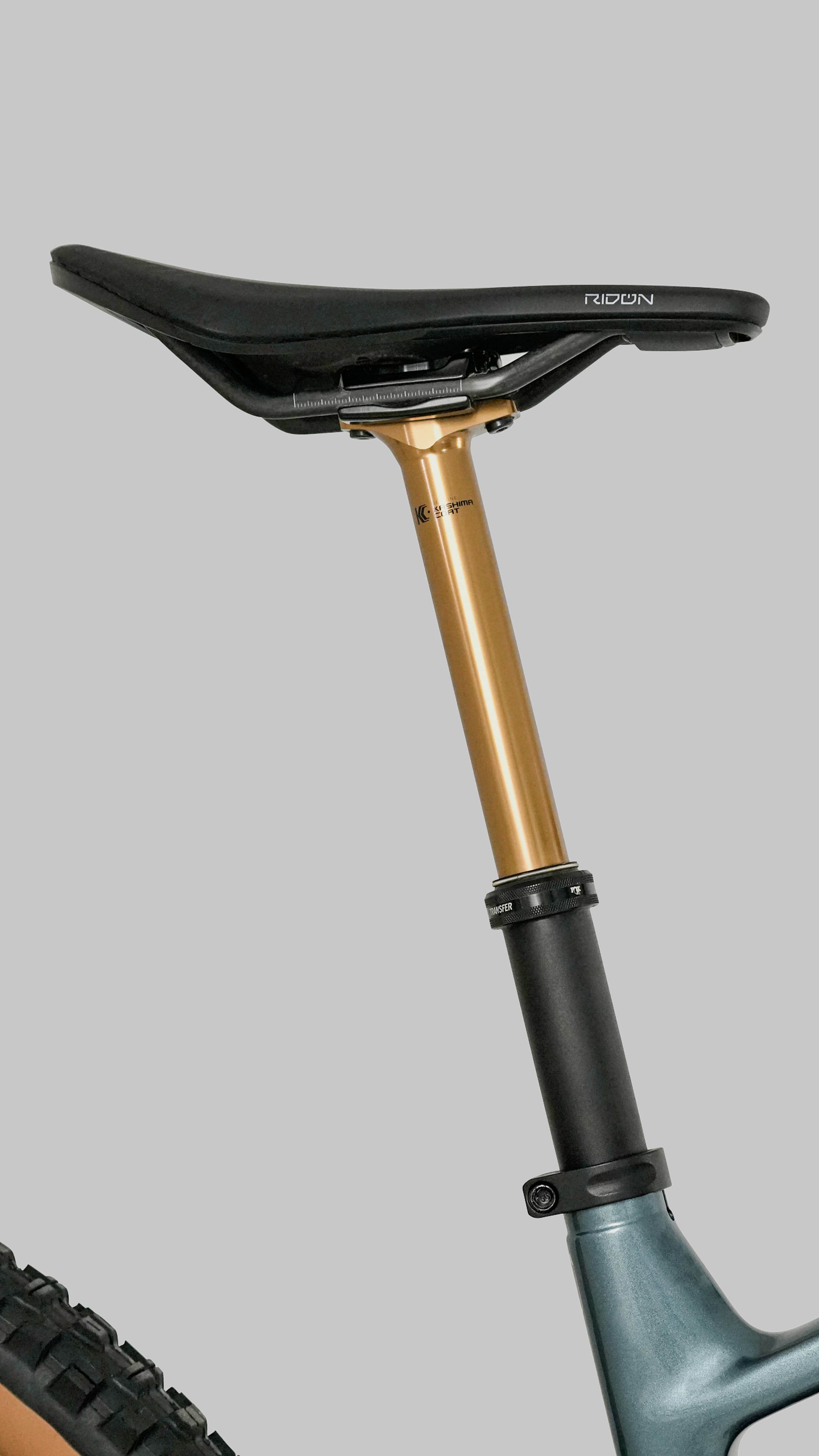

Seatpost | Fox Transfer Kashima 31,6mm telescopic seat post, remote adjustment S size 120 mm Drop / M size 150 mm Drop / L size 180 mm Drop |
 |
Seat | Fizik Ridon X5 |
* Megamo reserves the right to change any component, if necessary by replacing it with an equivalent one, without prior notice. |
"
"
"
"
"
"
"
"
"
"
"
"
