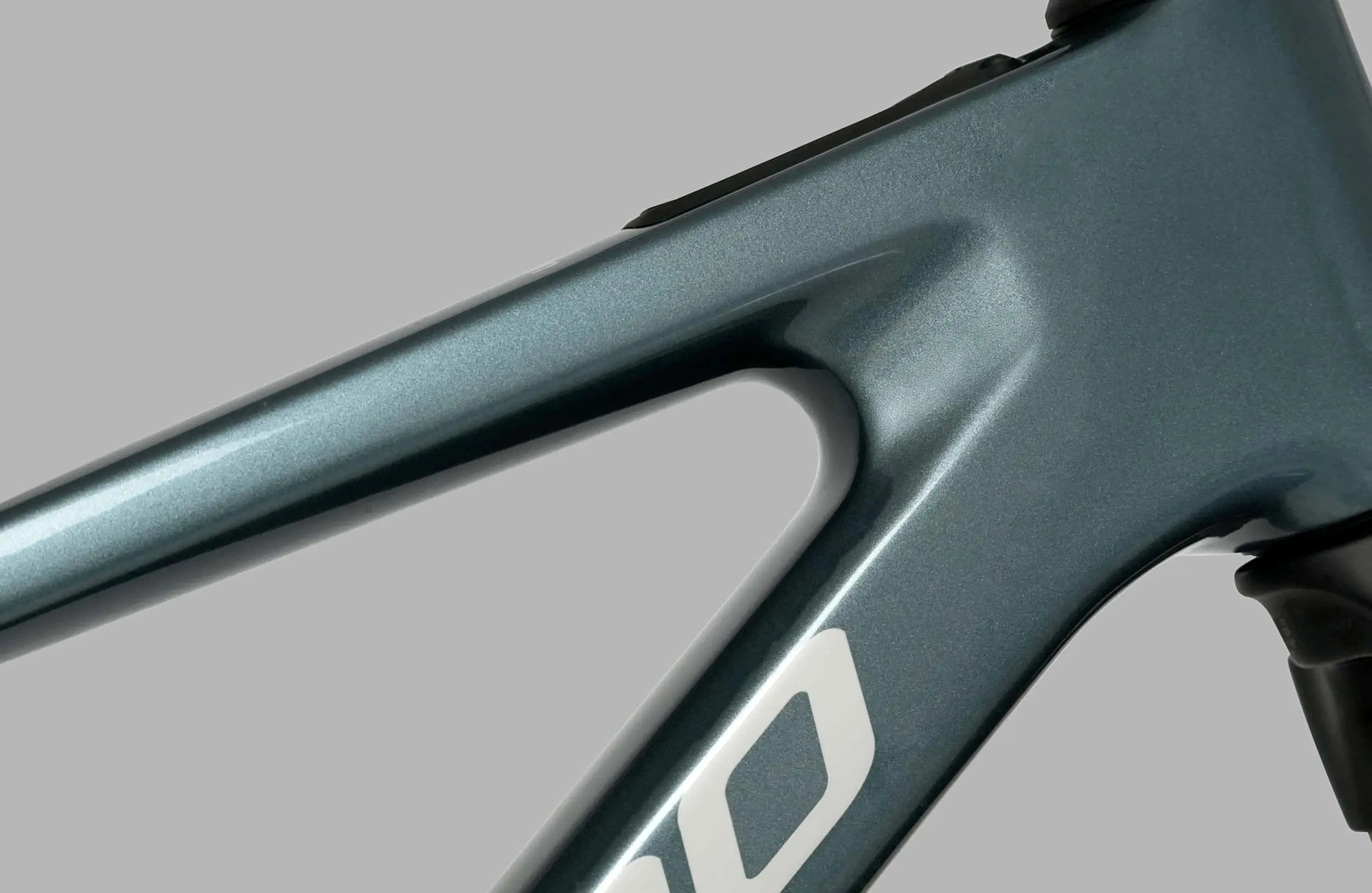

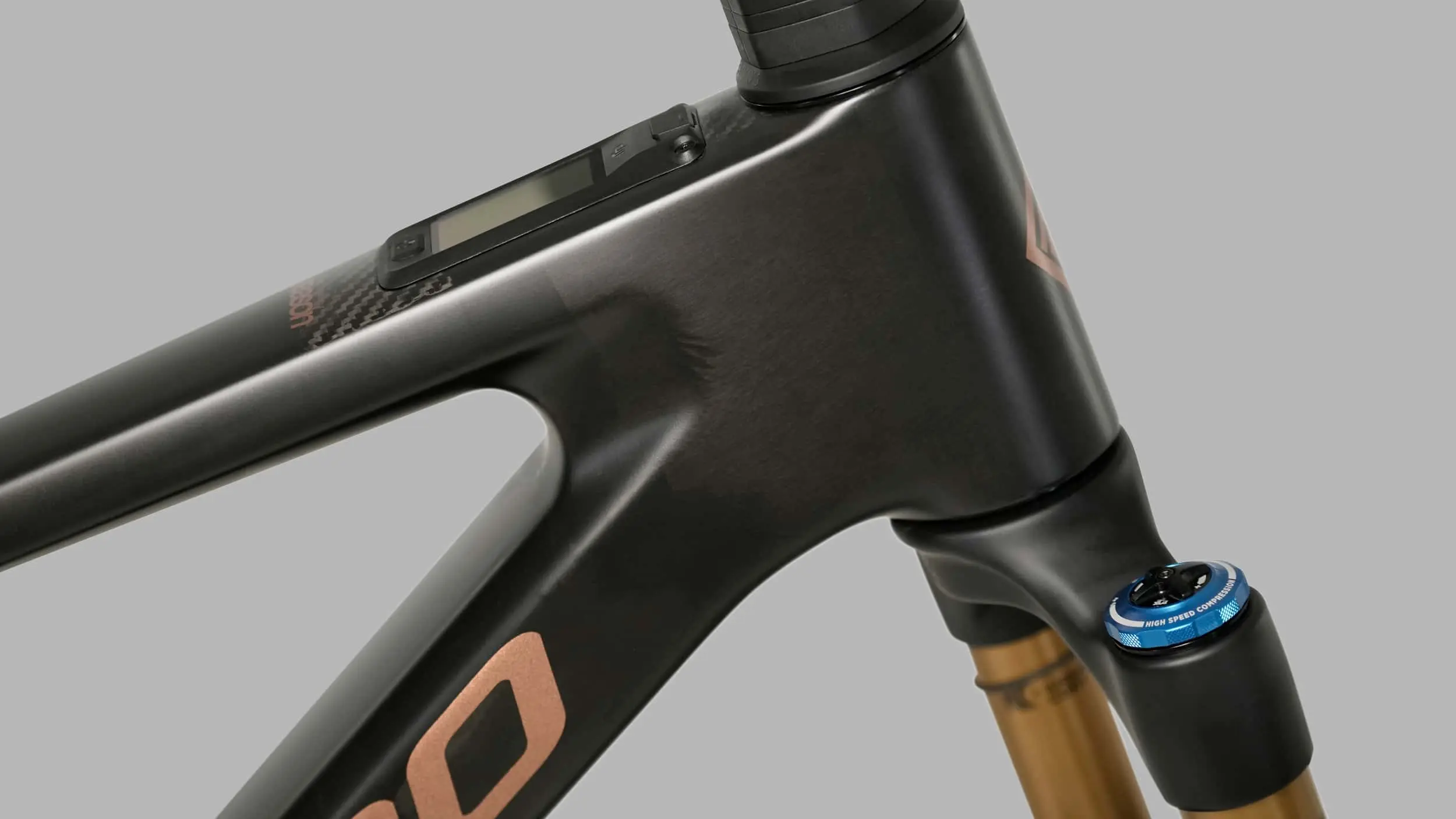

Frame | Reason Full Carbon Frame, Alloy shock extension, Full Integratted Battery, 12 x 148 Boost, Megamo ASP, Wheel travel: 140 mm |
 |

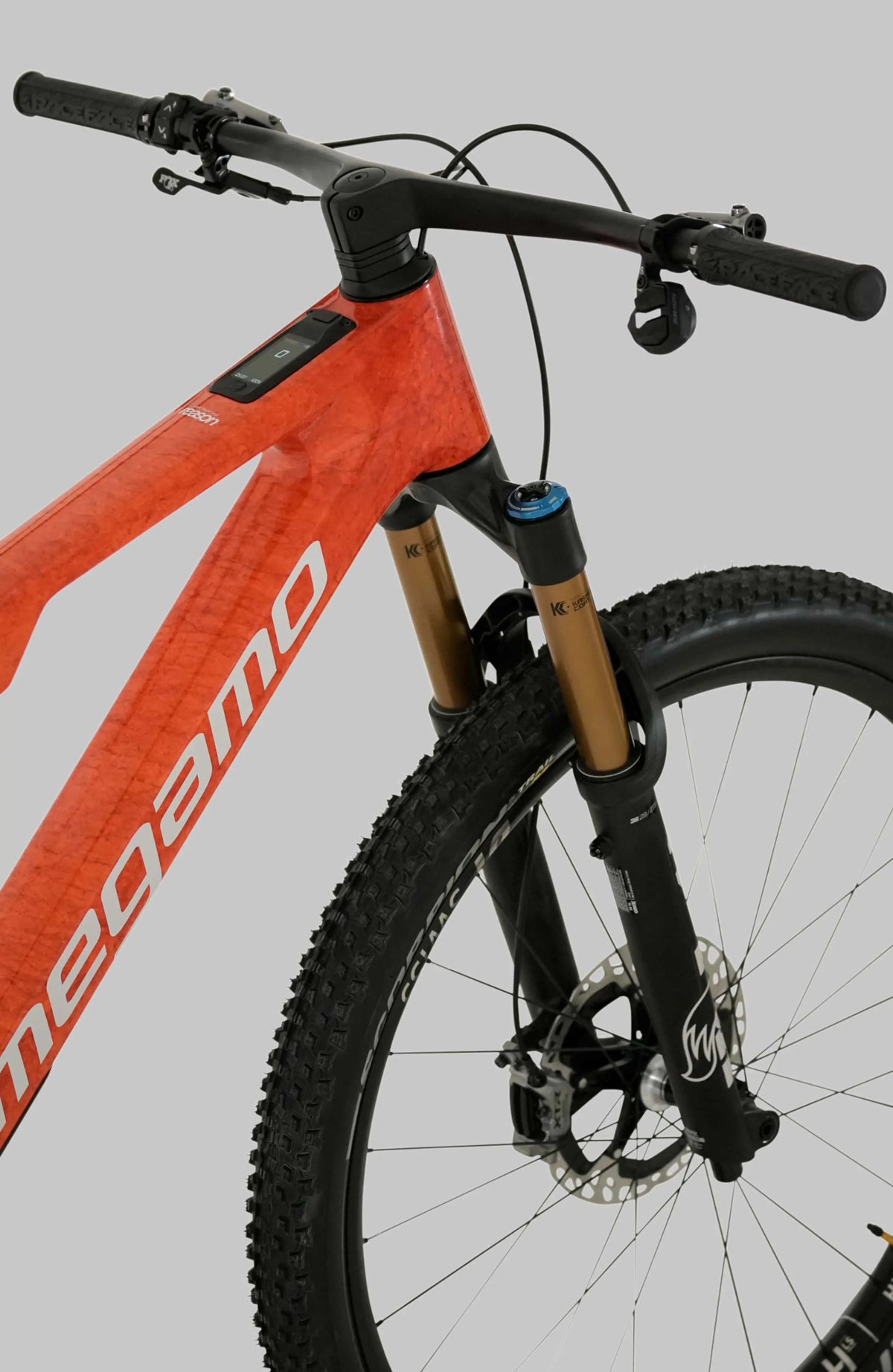

Fork | Fox 36 Float SL Factory, 140mm Travel, Grip X, HSC, LSC, HSR, LSR, Kabolt SL Axle x 110, 1.5 Tapered, 68HT, 44mm Offset |
 |

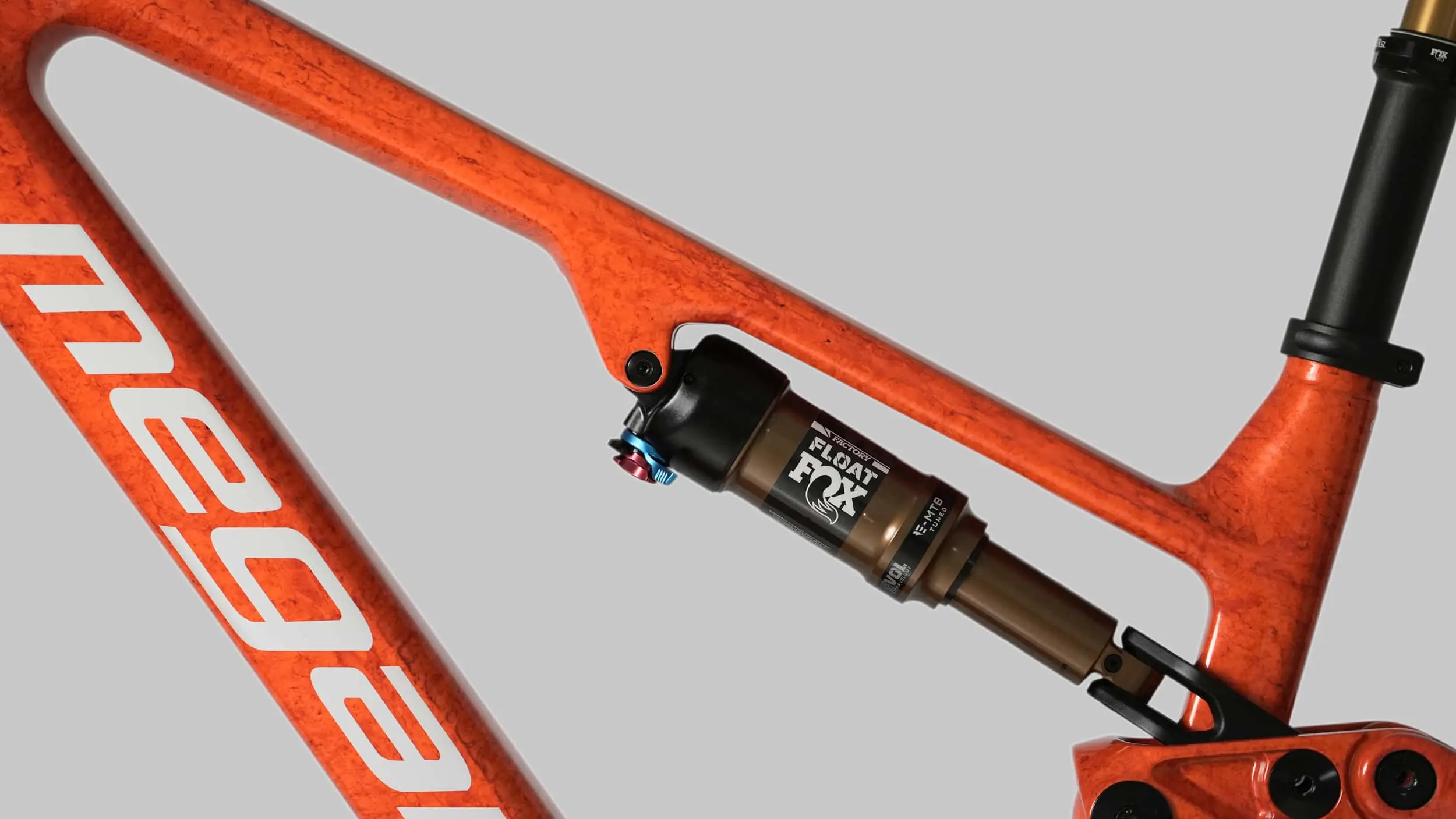

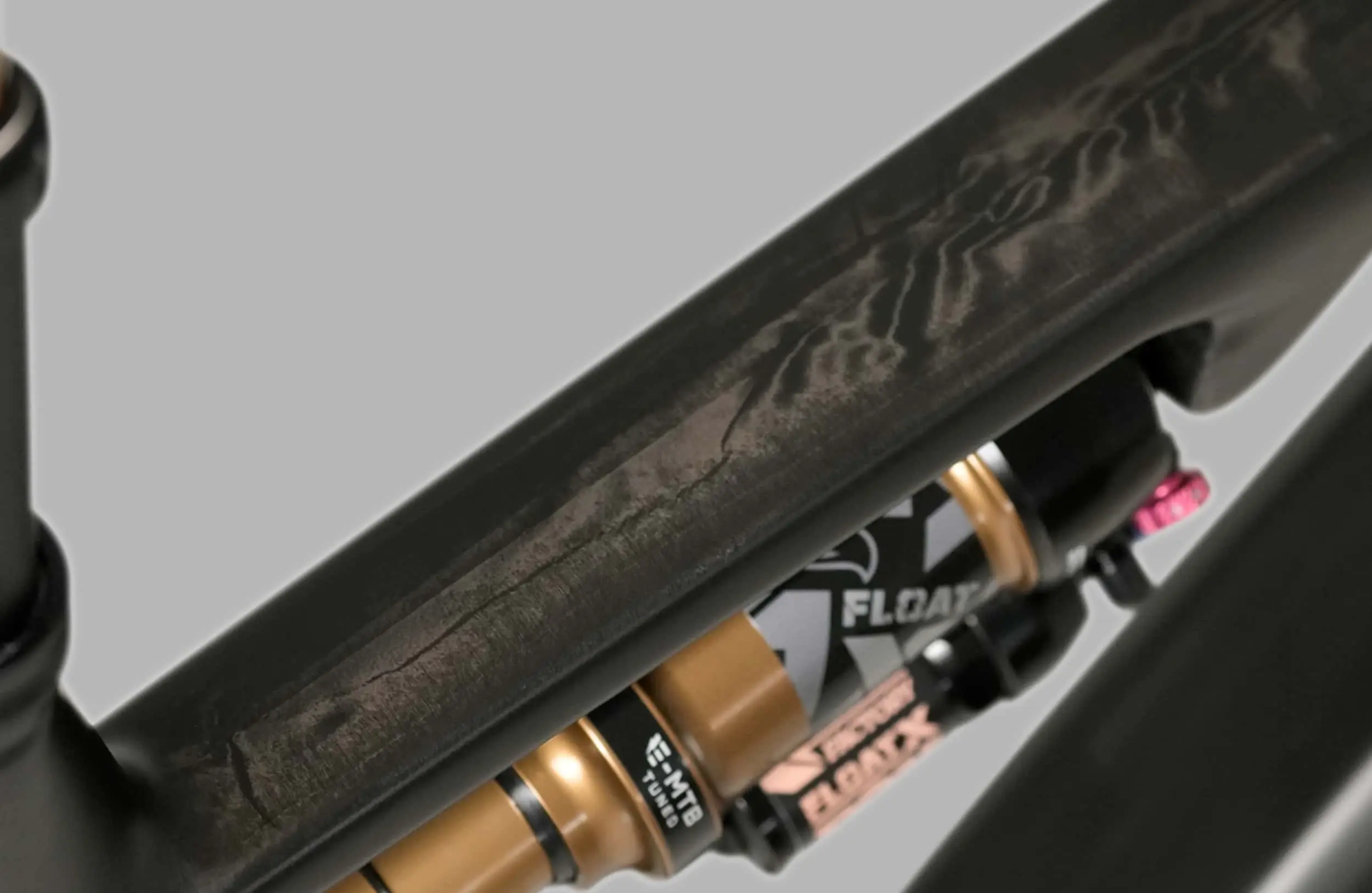

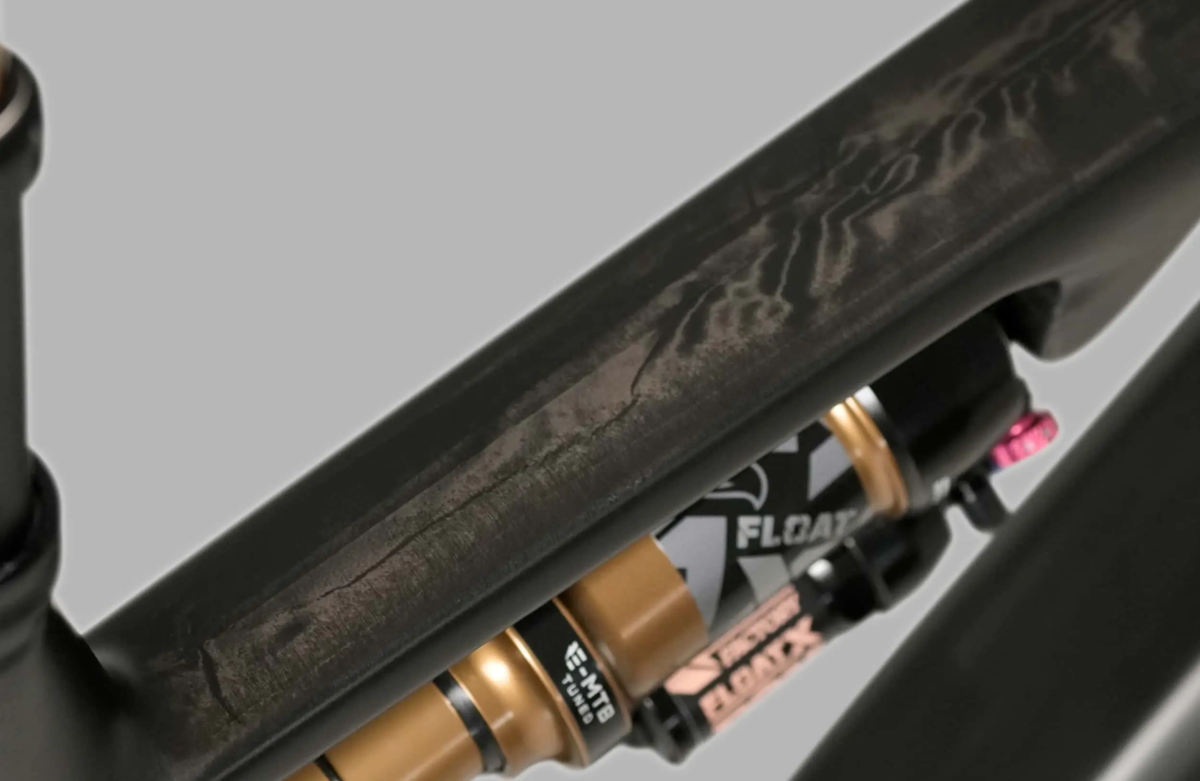

Shock | FOX Float Factory Kashima, 210x47,5 mm, Evol LV, Low Speed Rebound, 2 Position |
 |
Headset | Acros AZX-589 ZS56 blocklock 150º |
 |

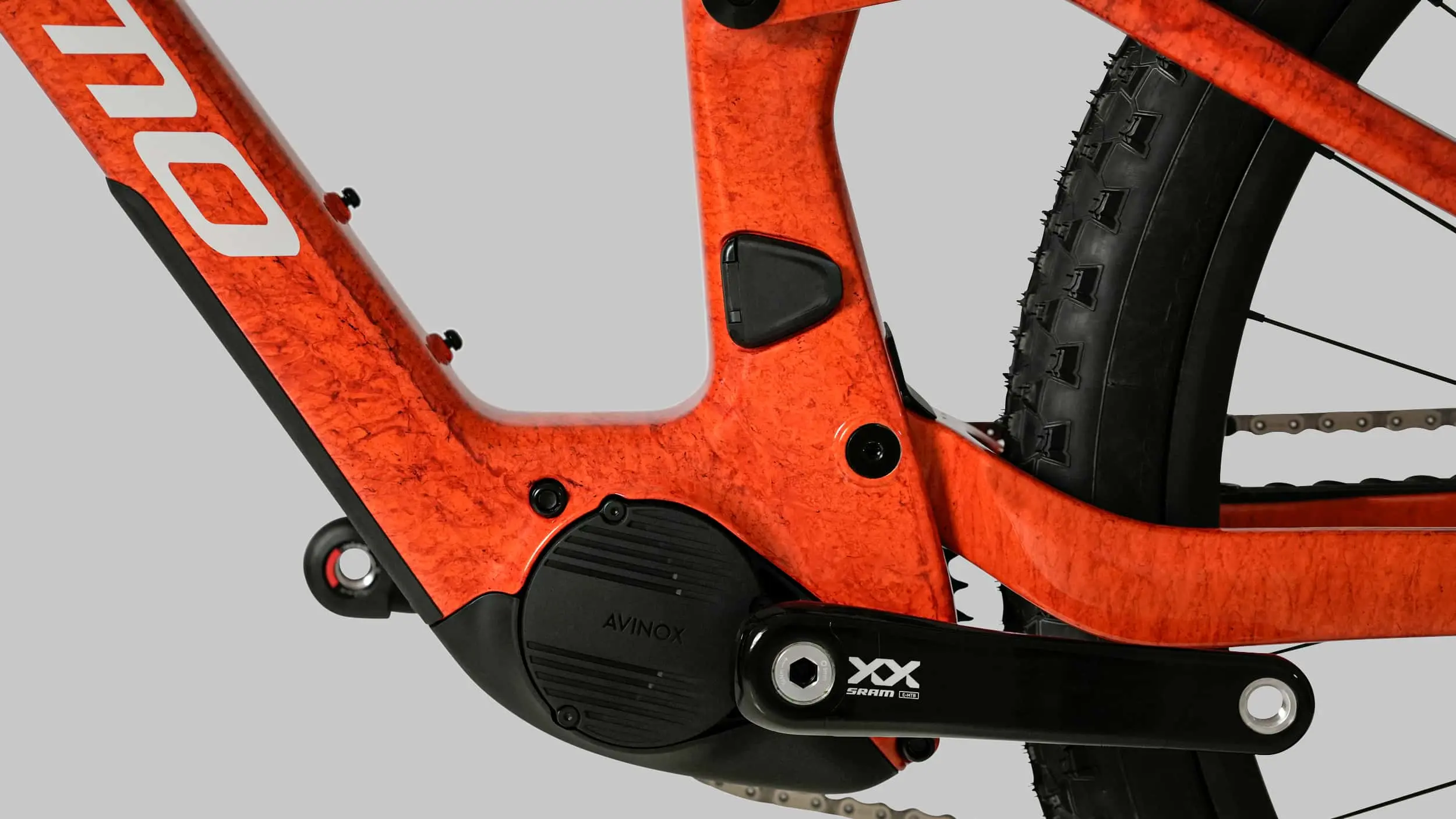

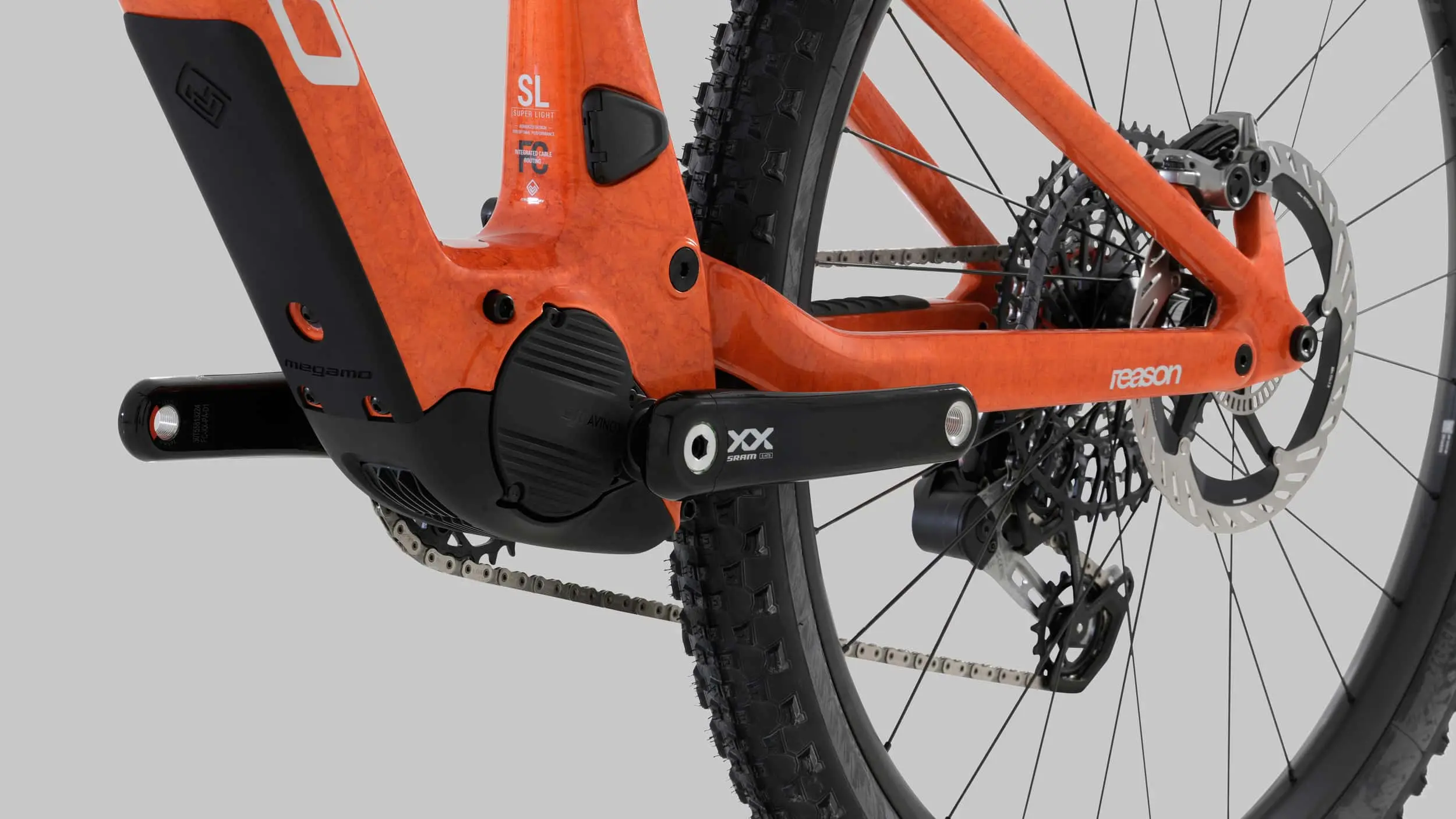

Motor | DJI Avinox M1, 120Nm 1000W (Boost mode) / 105Nm 1000W, 5 assistance modes, 150rpm |
 |
Battery | DJI Avinox 800 Wh, 35,9V, IP56 |
 |

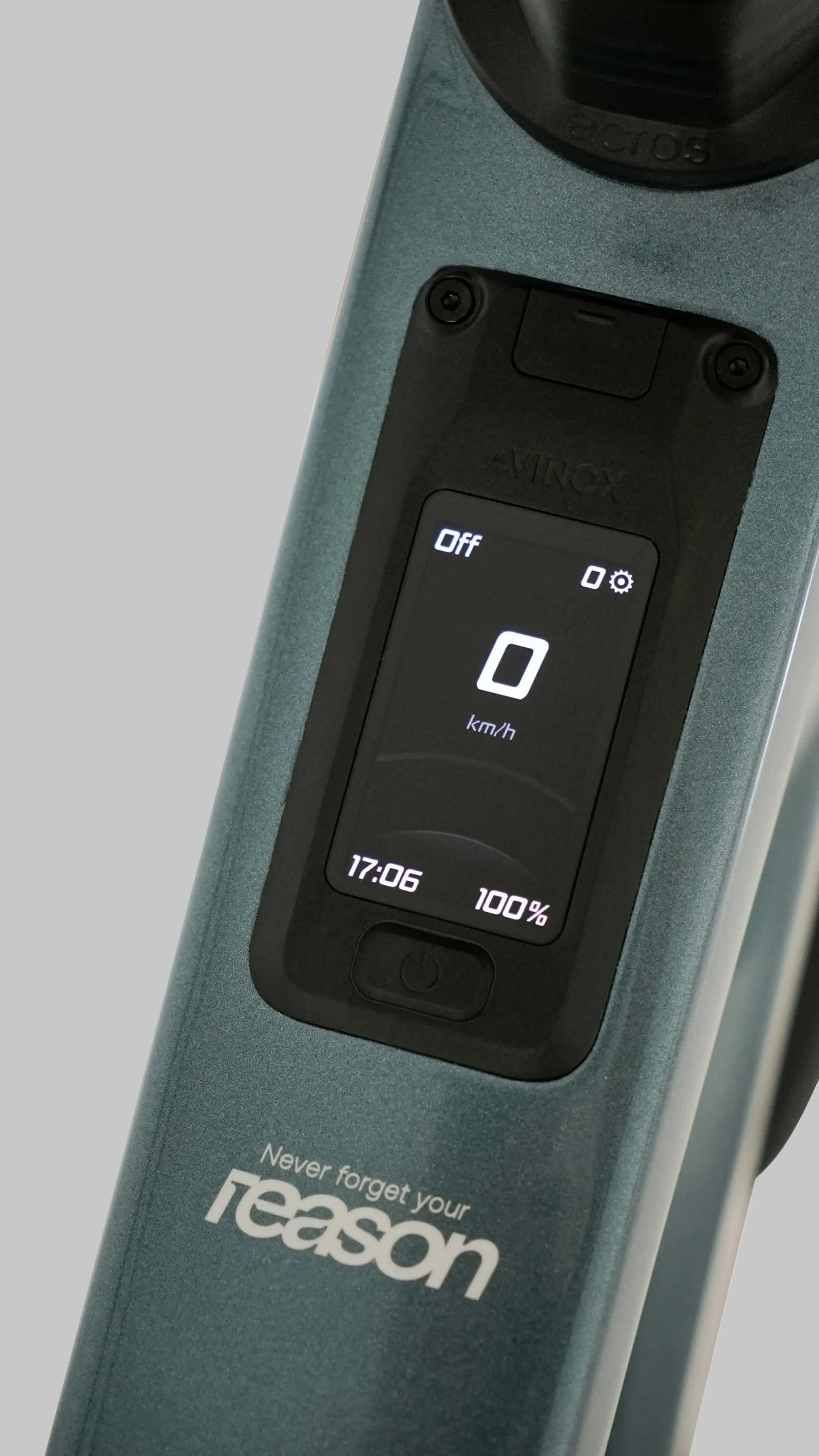

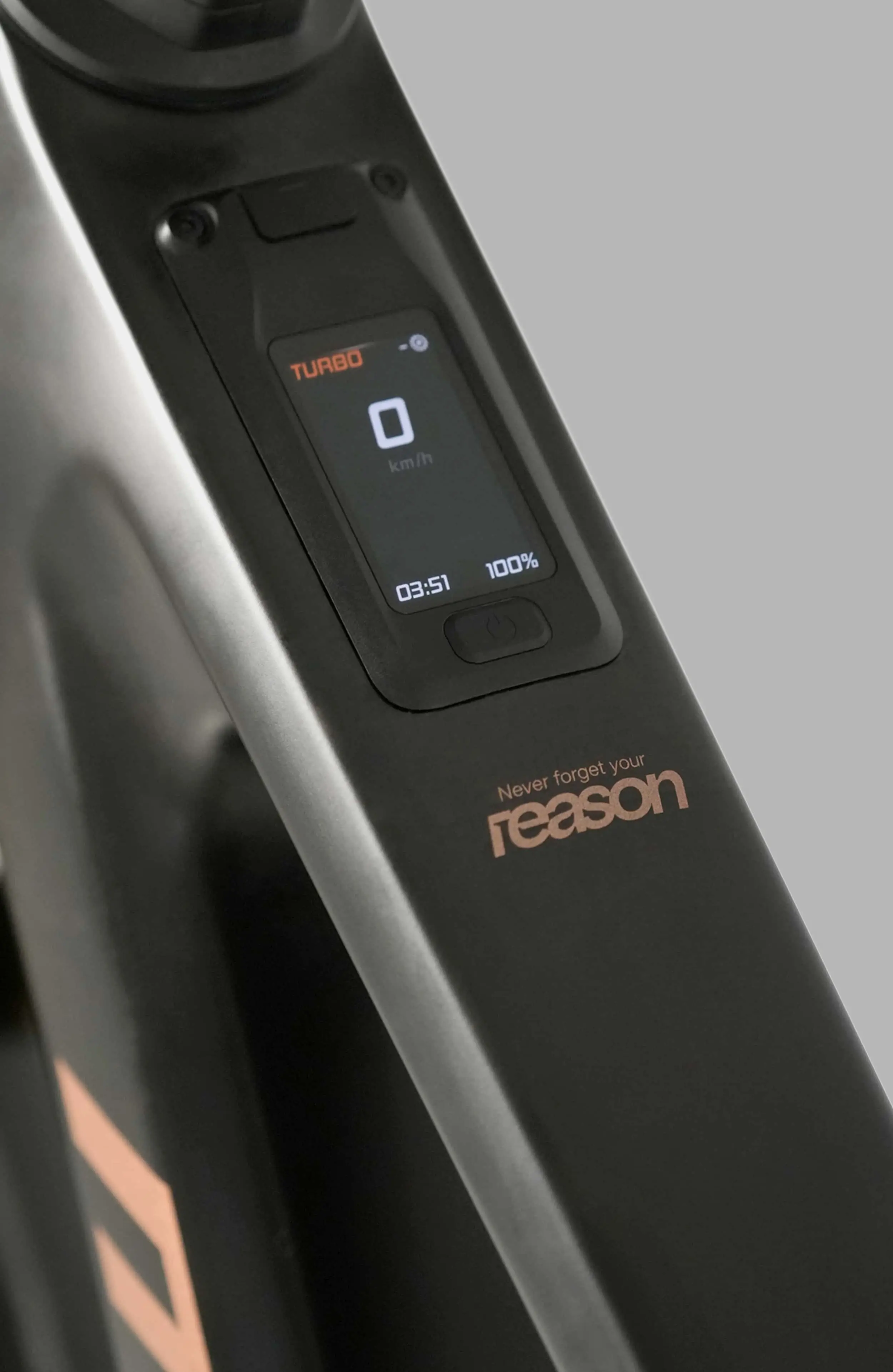

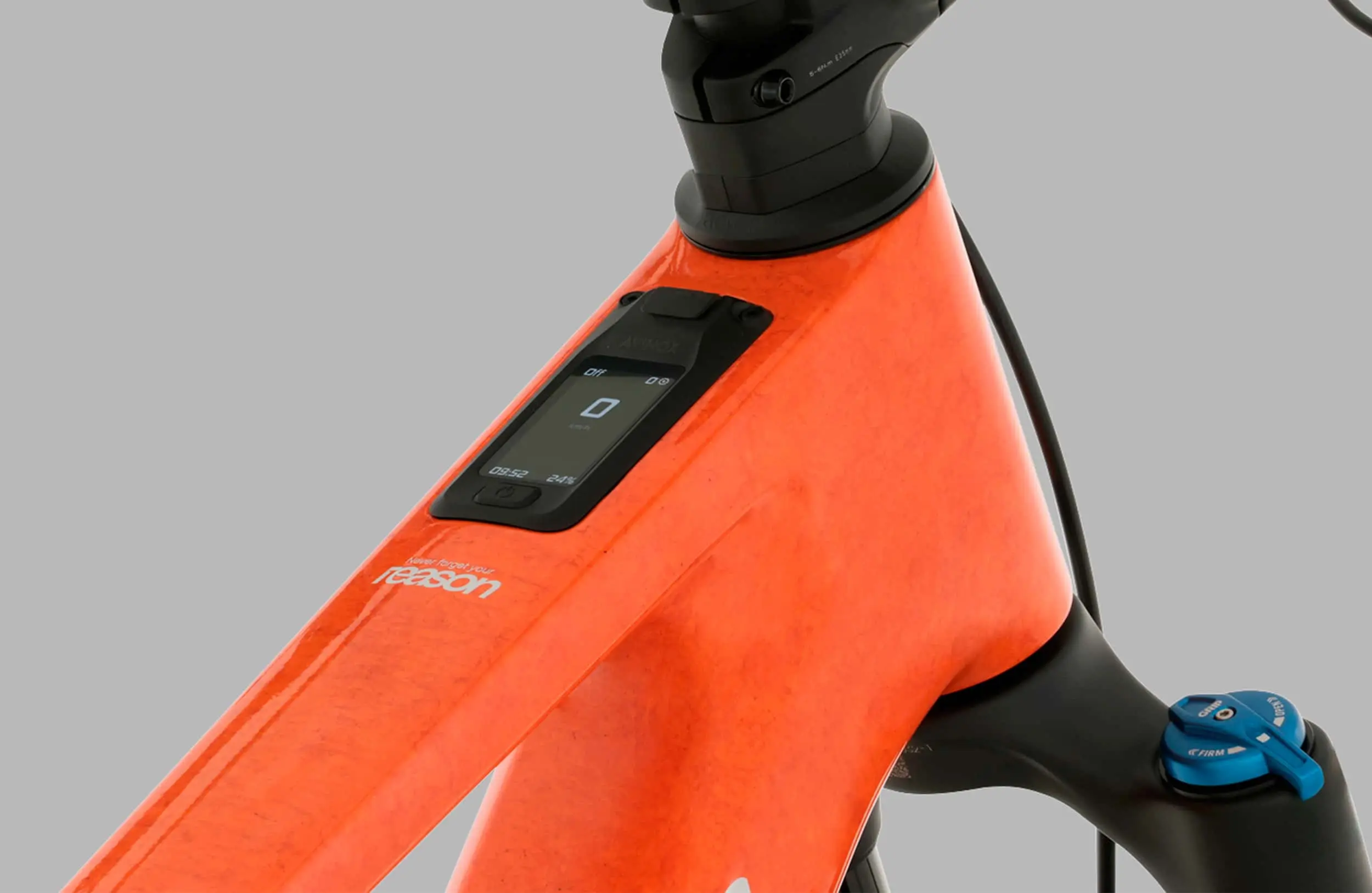

Display | DJI Avinox DP100, pantalla táctil OLED a todo color de 2 pulgadas, 800nits, 326ppi |
 |

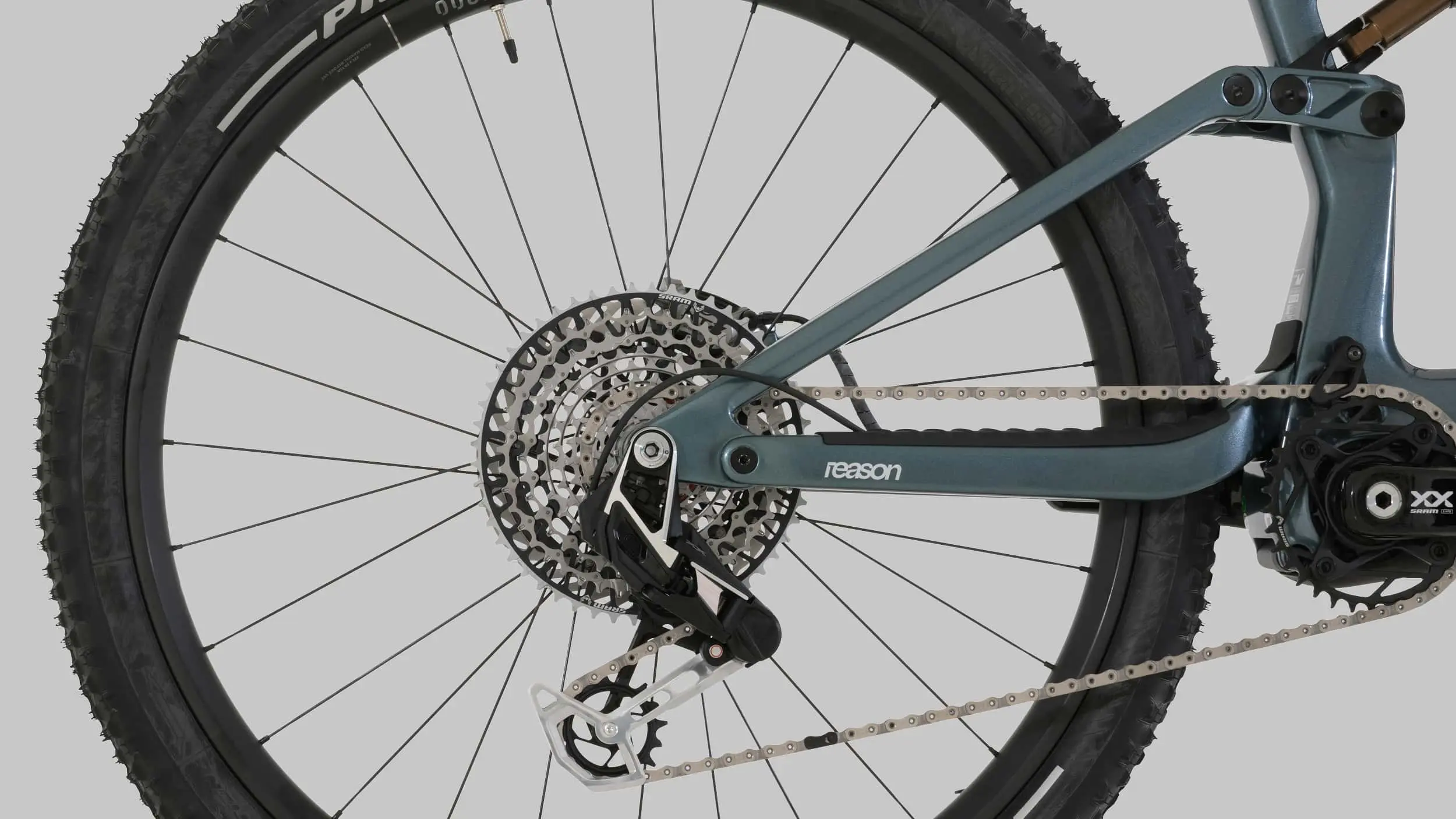

Rear Derailleur | Sram XX Eagle AXS T-Type 12s |
 |
Shifters | Sram XX AXS controller |
 |
Crankset | 34T BCD 104mm with chainring bolt / Forged AL6061/T6 165mm beat blasted anodized black |
 |
Cassette | Sram XX Eagle T-type 10-52T |
 |
Brakes | Shimano XTR BR-M9920, hydraulic disc 4-Piston, 203/203mm |
 |
Tires | Front: Pirelli Scorpion 29x2.4 MTB scM Trail ProWALL SmartGRIP / Rear: Pirelli Scorpion 29x2.4 MTB scR Trail ProWALL SmartGRIP |
 |
Hubs | DT Swiss HXC 1200 Carbon e-bike SP 29 CL 30 |
 |
Wheels | DT Swiss HXC 1200 Carbon e-bike SP 29 CL 30 |
 |

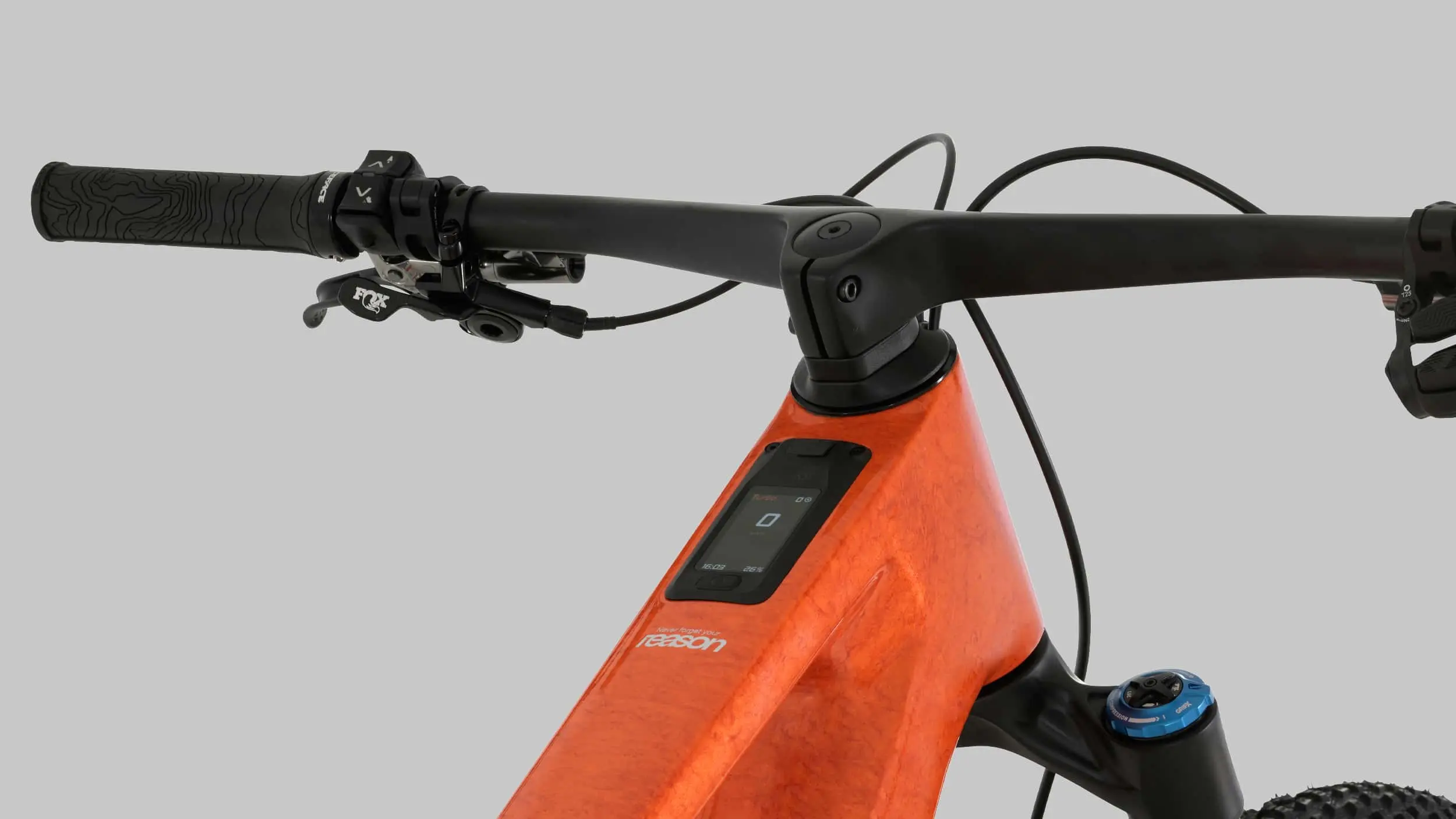

Handlebar | Full Integrated Carbon Handlebar / S, M size 60 x 760 mm / L, XL size 80 x 760 mm |
 |

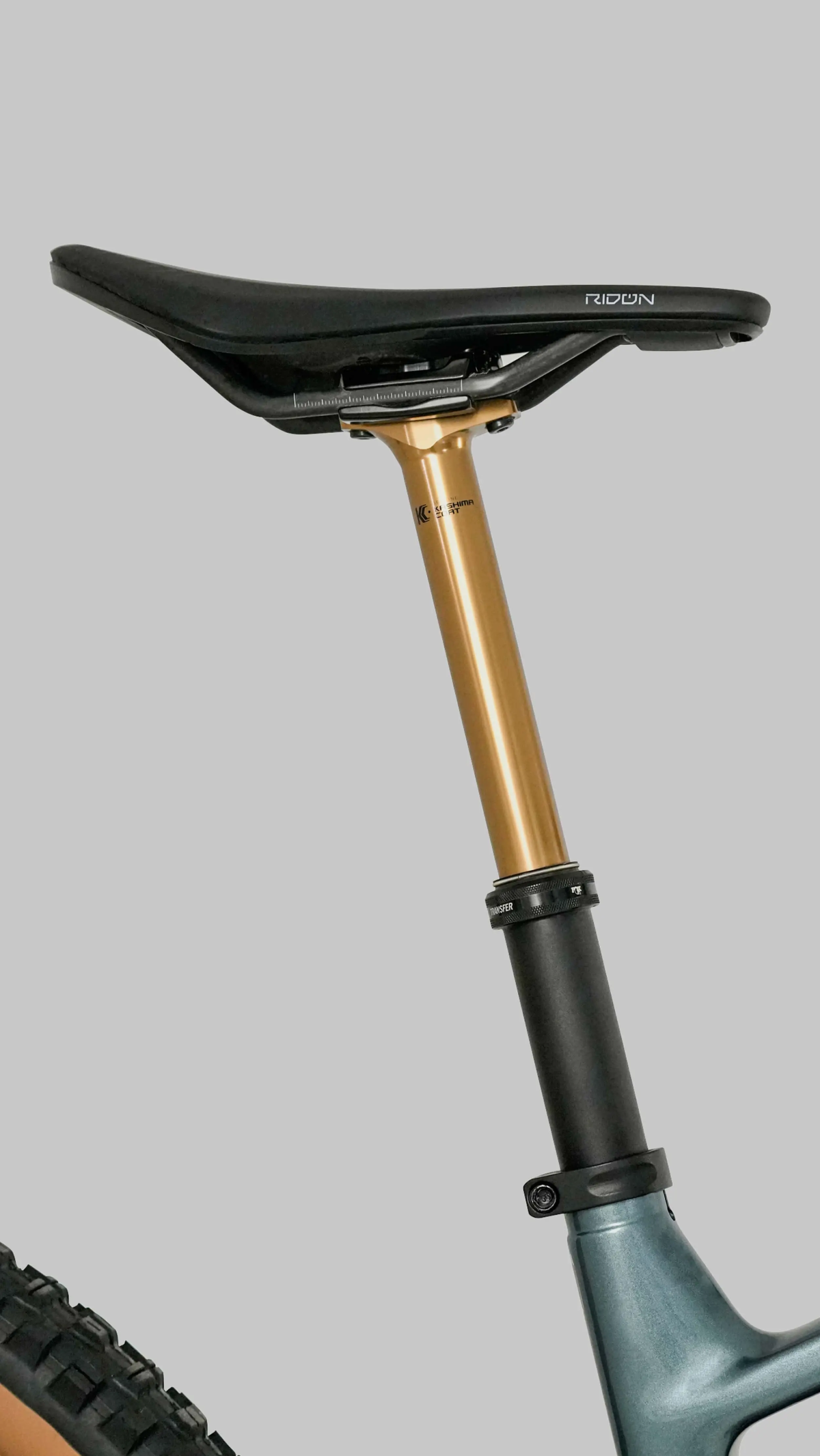

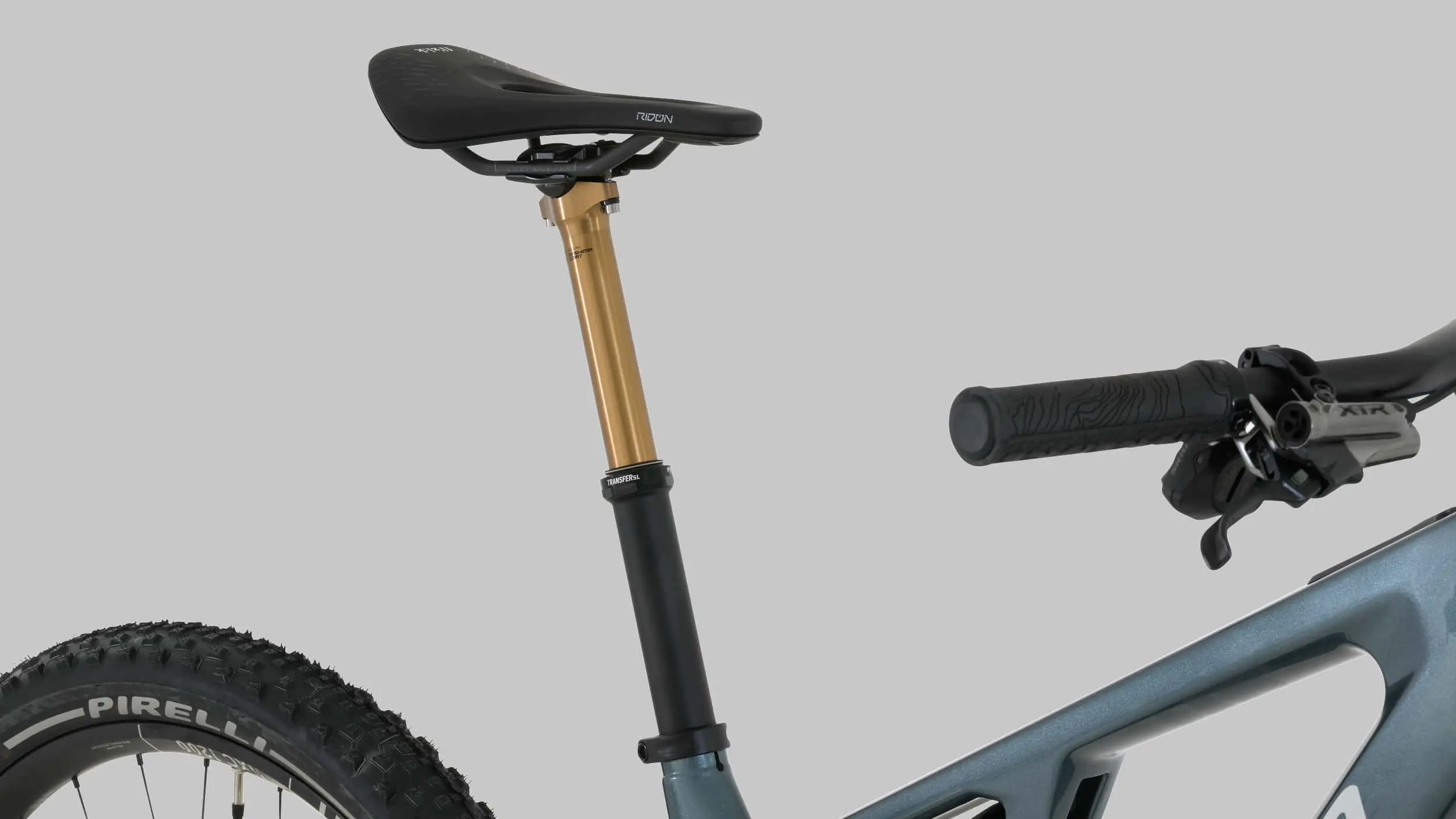

Seatpost | Fox Transfer Kashima SL 31,6mm telescopic seat post, remote adjustment S size 100 mm Drop / M, L size 125 mm Drop / L size 150 mm Drop |
 |
Seat | Fizik Ridon X1 |
* Megamo reserves the right to change any component, if necessary by replacing it with an equivalent one, without prior notice. |
"
"
"
"
"
"
"
"
"
"
"
"
