Frame | Reason AL Frame, Alloy shock extension, Full Integratted Battery, 12 x 148 Boost, Megamo ASP, Wheel travel: 160 mm |
 |
Fork | Fox 38 Float Performance E-Bike Optimized, 160mm Travel, Grip |
 |

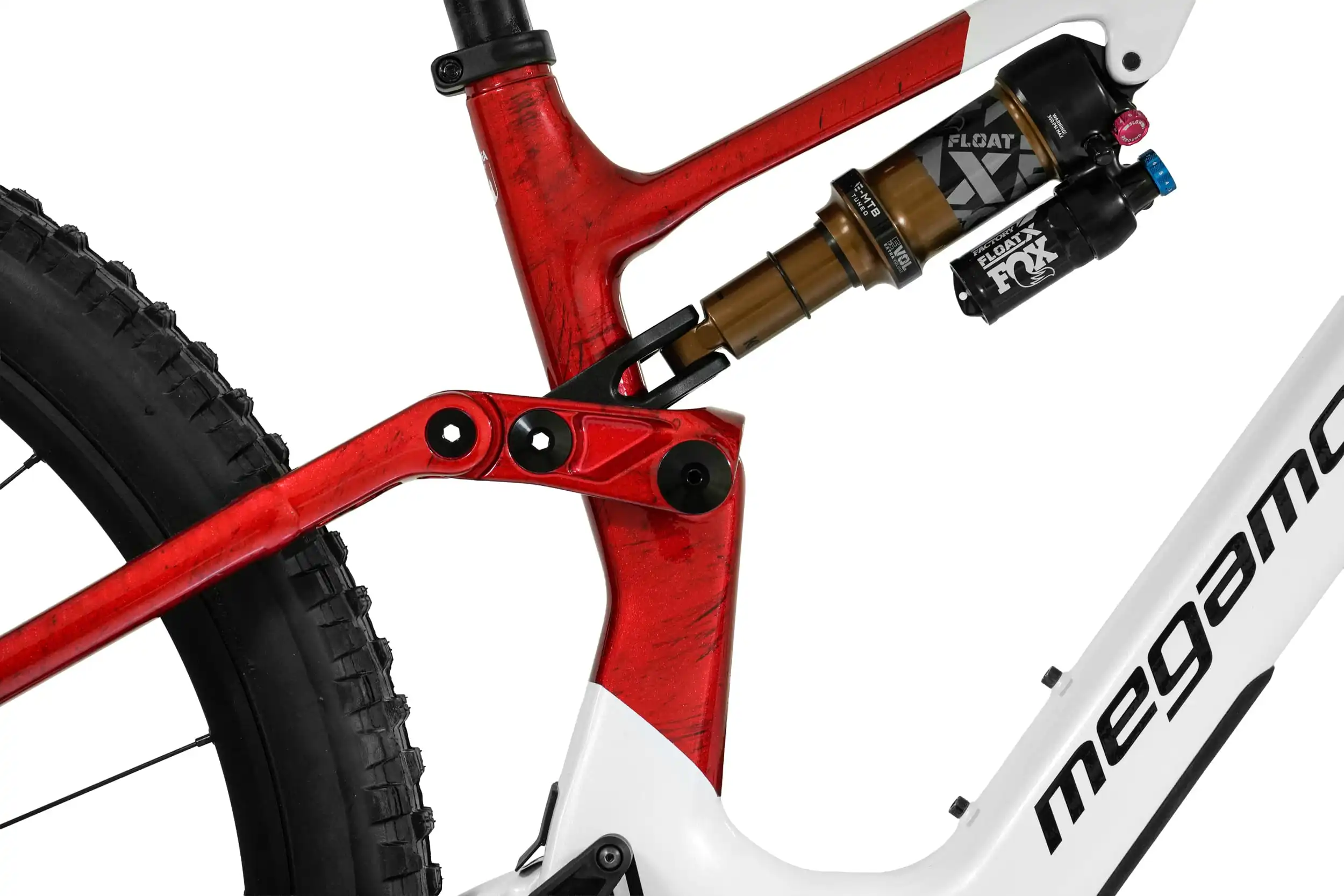

Shock | Fox Float X Performance, 210x55mm, 2 Position |
 |
Headset | Acros AZA-288R2 ZS56 blocklock 135º |
 |
Motor | Avinox M2S -150Nm 1300W (Boost mode) / 130Nm 1300W |
 |
Battery | Avinox 800 Wh, 35,9V, IP56 |
 |
Display | Avinox DP100, 2-inch full-color OLED touchscreen, 800 nits, 326 ppi |
 |
Charger | Avinox 4A Charger |
 |
Rear Derailleur | Sram 90 EAGLE T-TYPE, 12-Speed |
 |
Shifters | Sram 90 EAGLE T-TYPE |
 |
Crankset | Sram EAGLE T-TYPE Avinox Chainring 36T 12-Speed, Crankset 160mm |
 |
Cassette | Sram XS 1270 T-TYPE, 10-52T |
 |
Brakes | Shimano XT M8220, Hydraulic Disc 4-Piston, SM-RT86 203 mm |
 |
Tires | Front: Maxxis Assegai 29x2.5 DD 3C MaxxGrip / Rear: Maxxis Minion DHR II 29x2.4 DD 3C MaxxTerra |
 |
Wheels | Megamo 29 SL 30 ASY, Aluminium Rim, 15x110/12x148 mm |
 |
Handlebar | Megamo Alloy Butted 35 x 800 mm, 12 mm Rise, 6º Back Sweep |
 |
Stem | Satori Ursa, 35 x 35 mm |
 |
Seatpost | Megamo Ø31.6 mm |
 |
Seat | Fizik Terra Aidon X5, 145 mm |
* Megamo reserves the right to change any component, if necessary by replacing it with an equivalent one, without prior notice. |
"
"
"
"
"
"
"
"
"
"
"
"
"
"
