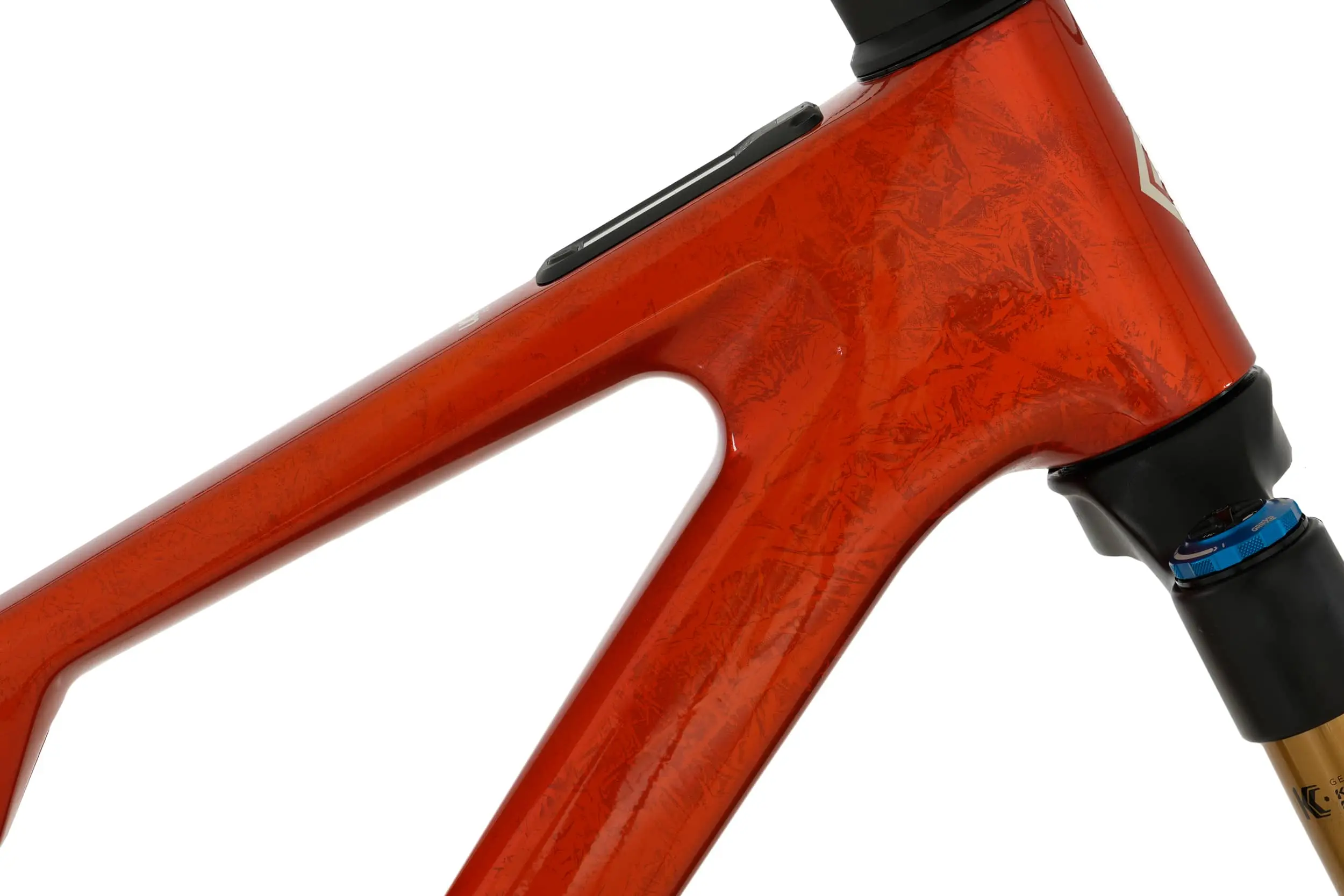

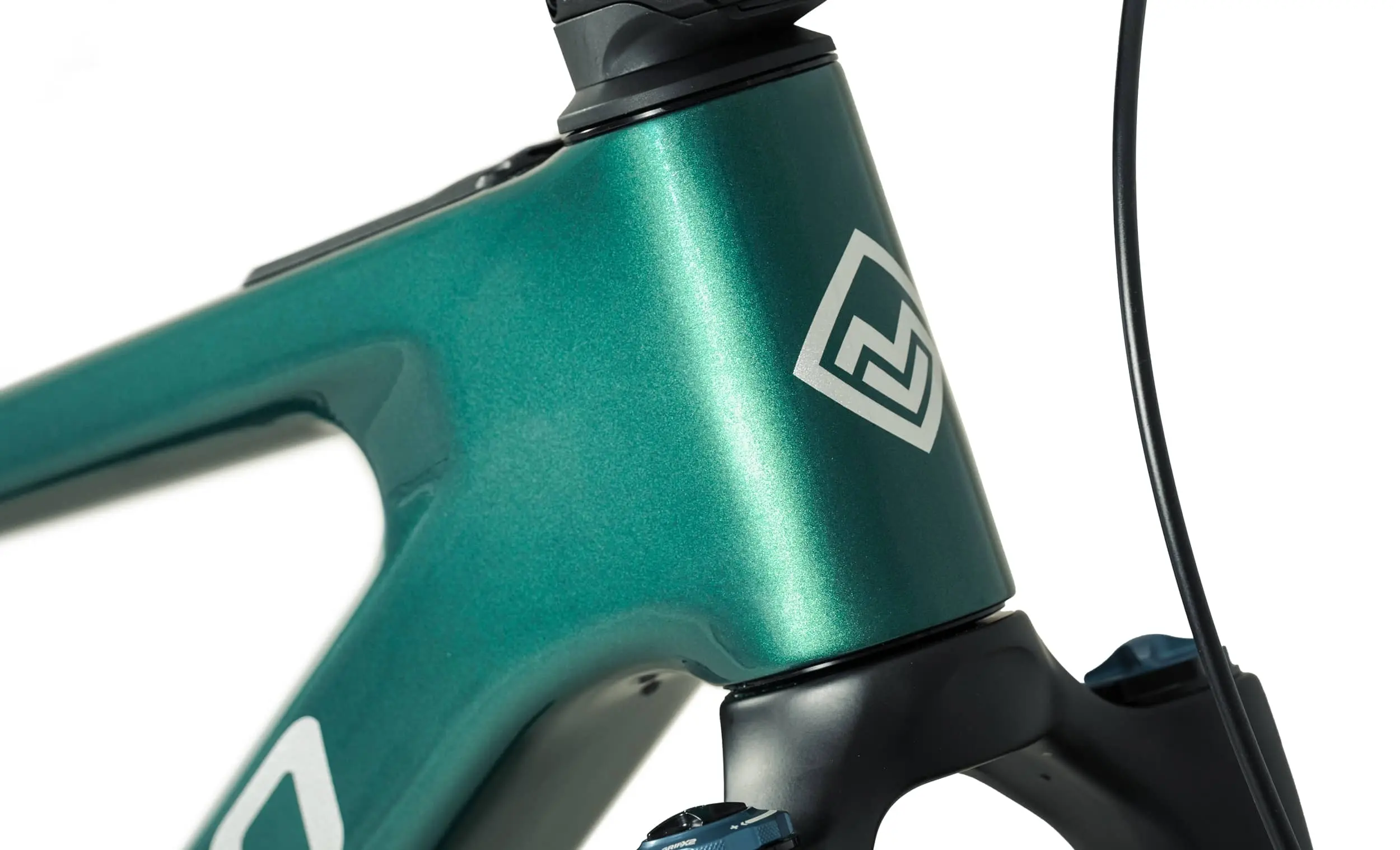

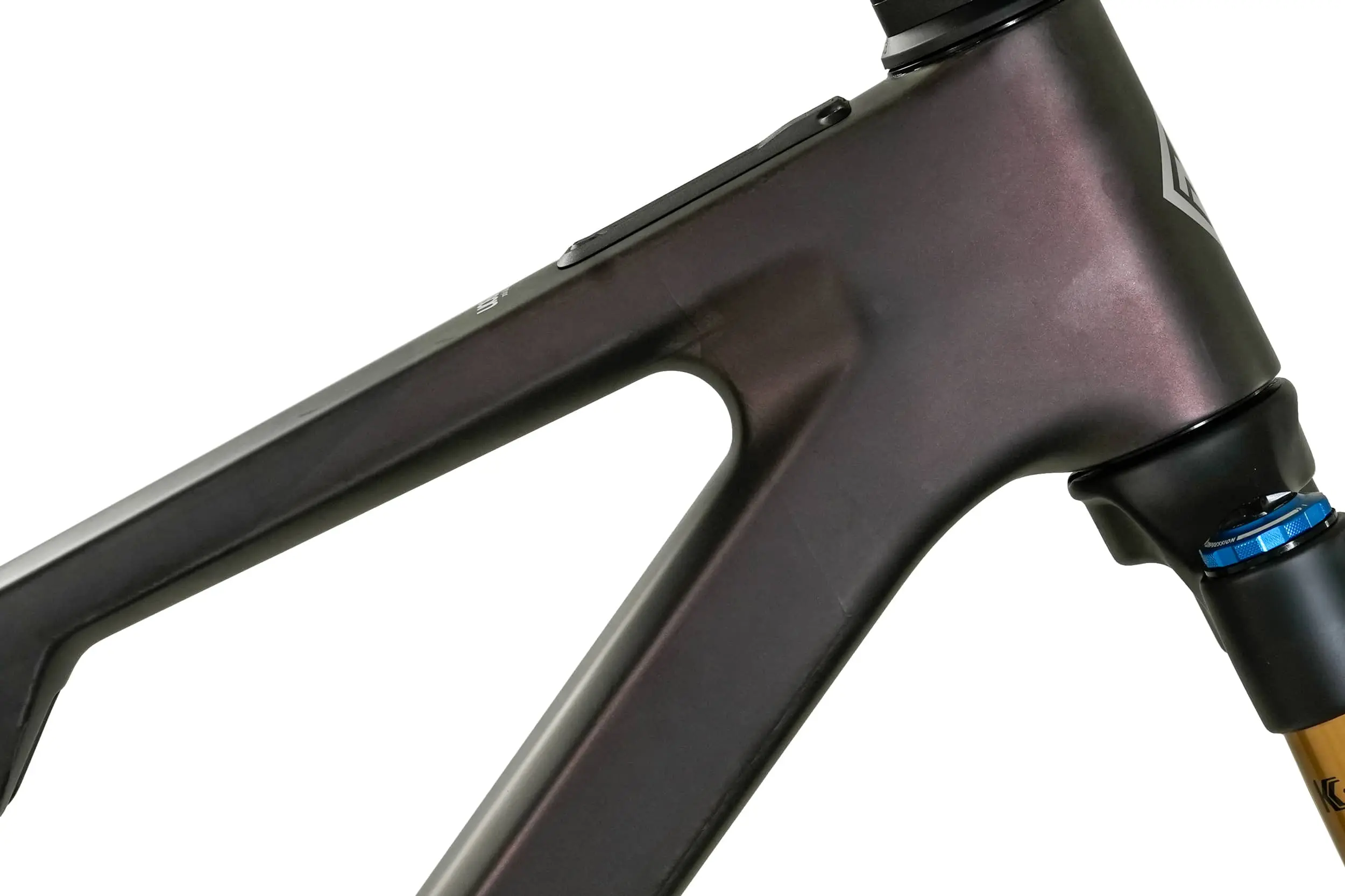

Frame | Reason Full Carbon Frame, Alloy shock extension, Full Integratted Battery, 12 x 148 Boost, Megamo ASP, Wheel travel: 160 mm |
 |
Fork | Fox 38 Float Factory E-Bike Optimized, 160mm Travel, Grip X2 |
 |
Shock | Fox Float X2 Factory, 210x55 mm, Evol - Transverse Reservoir |
 |
Headset | Acros AZA-288R2 ZS56 blocklock 135º |
 |

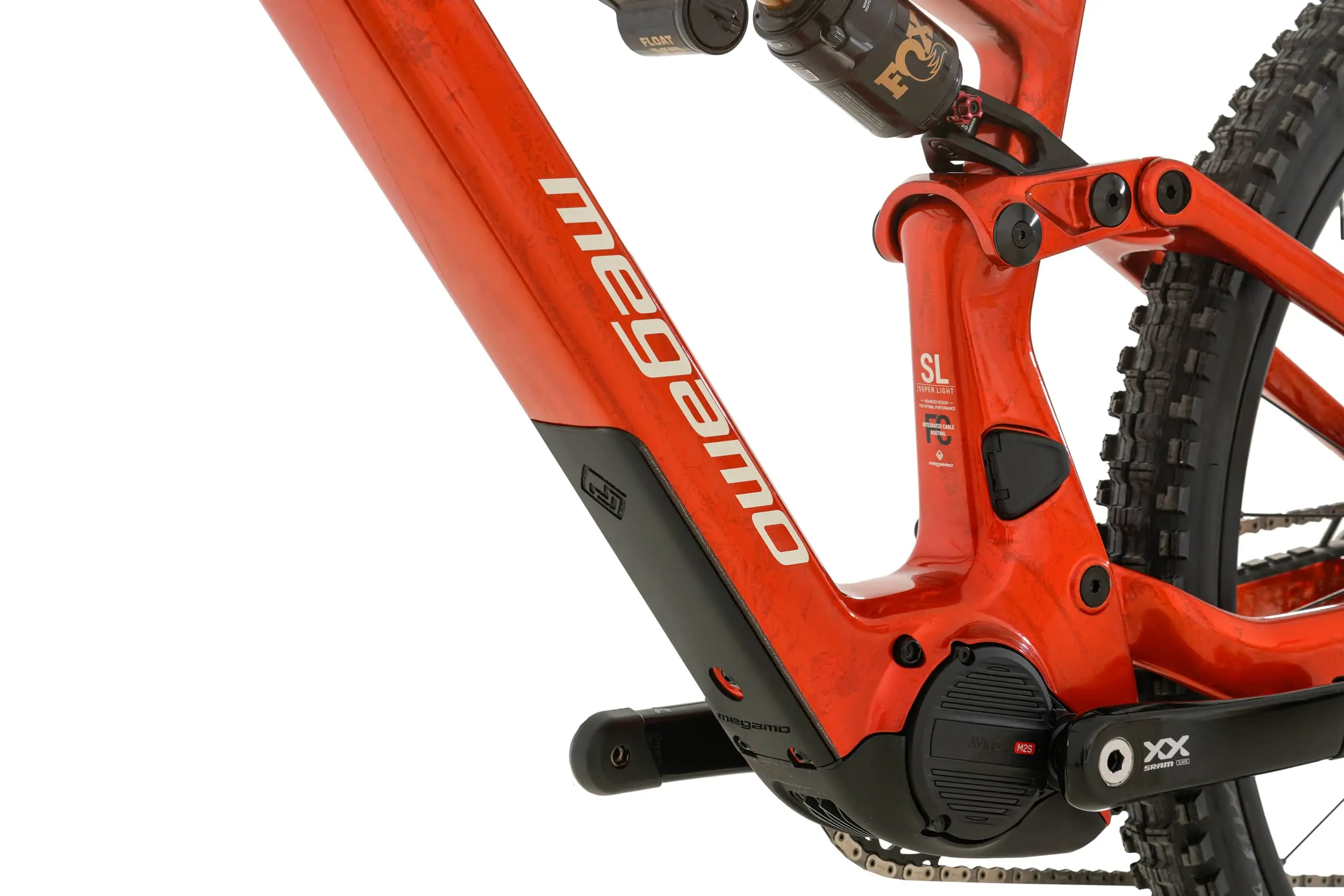

Motor | Avinox M2S -150Nm 1300W (Boost mode) / 130Nm 1300W |
 |
Battery | Avinox 800 Wh, 35,9V, IP56 |
 |
Display | Avinox DP100, 2-inch full-color OLED touchscreen, 800 nits, 326 ppi |
 |
Charger | Avinox 12A Fast Charger |
 |
Rear Derailleur | Sram XX EAGLE AXS T-TYPE, 12-Speed |
 |
Shifters | Sram AXS POD Ultimate |
 |
Crankset | Sram XX EAGLE T-TYPE Avinox Chainring 36T 12-Speed, Sram XX EAGLE Crankset 165mm |
 |
Cassette | Sram XX Eagle T-TYPE 10-52T |
 |
Brakes | Shimano XT M8220, Hydraulic Disc 4-Piston, RT-CL800 203 mm |
 |
Tires | Front: Maxxis Assegai 29x2.5 DD 3C MaxxGrip / Rear: Maxxis Minion DHR II 29x2.4 DD 3C MaxxTerra |
 |
Wheels | DT Swiss 1501 HXC 30 Carbon, Tubeless ready |
 |
Handlebar | Carbon Race Face ERA 35x800, Rise 20mm |
 |
Stem | Satori Ursa, 35 x 35 mm |
 |
Seatpost | Fox Transfer Factory Kashima 31,6. Internal routing, remote. |
 |
Seat | Fizik Terra Aidon X1, 145mm |
* Megamo reserves the right to change any component, if necessary by replacing it with an equivalent one, without prior notice. |
"
"
"
"
"
"
"
"
"
"
"
"
"
"
